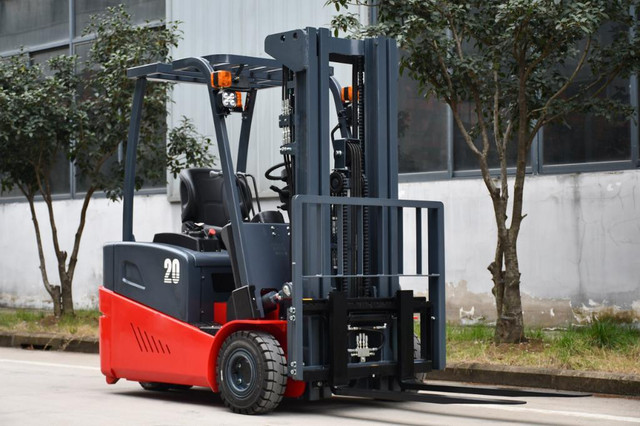

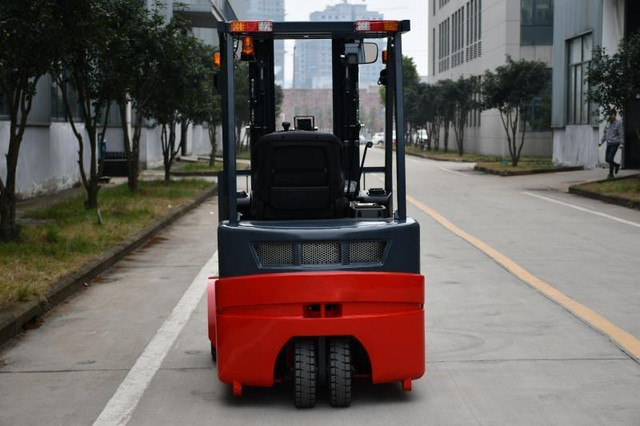

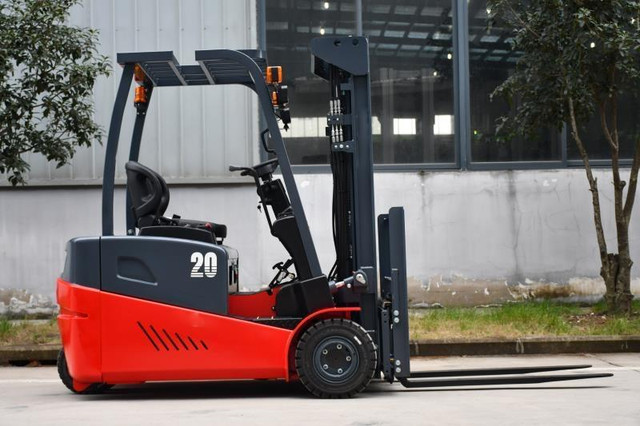

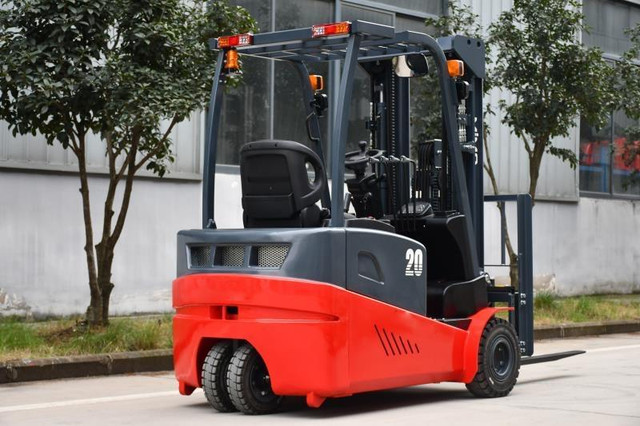

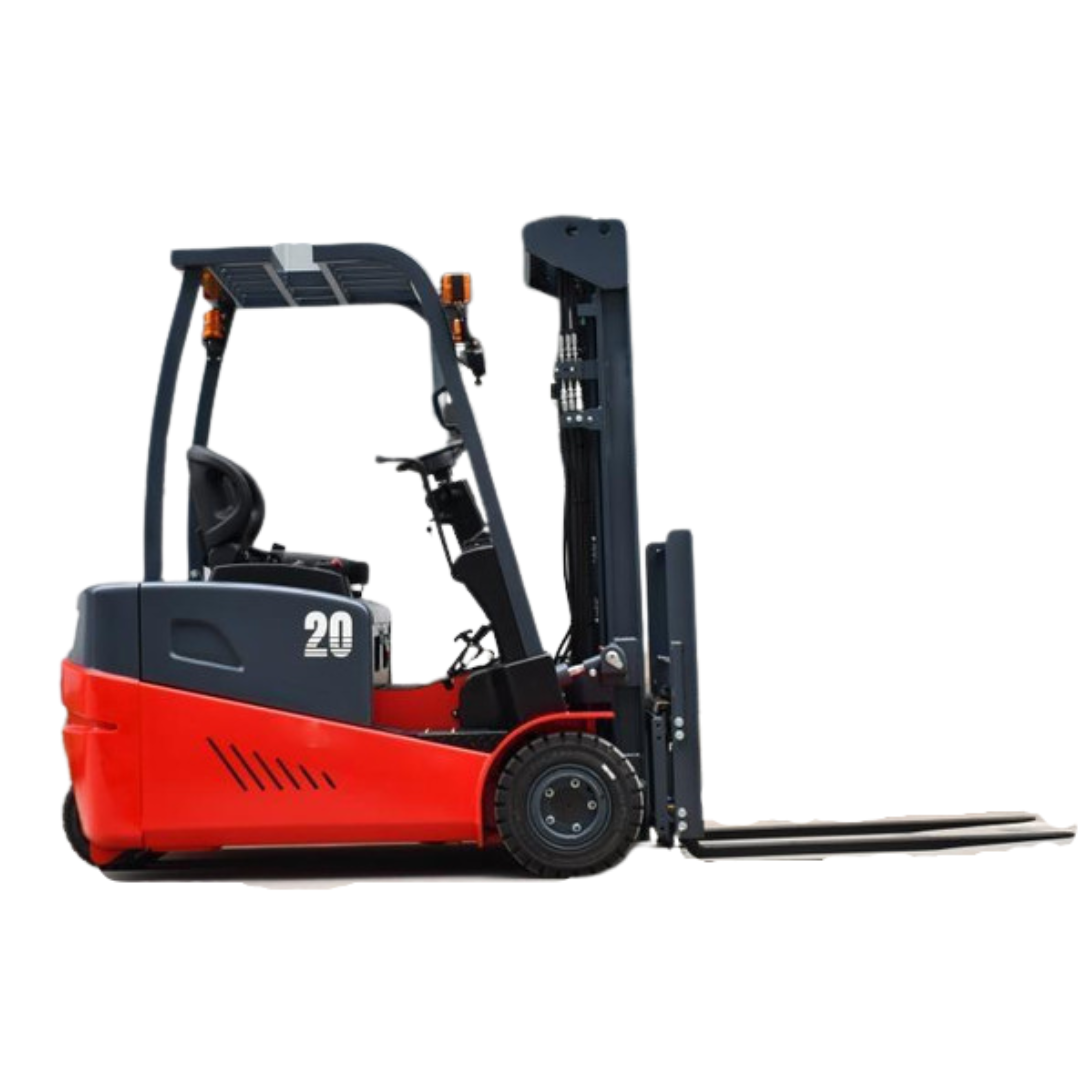

3 Wheel Electric Forklift 2T with side shift

  • $27,999.00
Category:

Capacity Load : 2T

– Brand : CAEL
Three Wheels counterbalance electric forklift
-AC Motor ,Curtis controller
-Load Capacity : 2000Kg (4400LBS)/ Lifting height 3500MM/ 137.7 in
-with solid tires -Side Shifter
-Load center:500mm/ 19.6 in
-Wheel base:1250mm/ 49 in
-Wheels: 2 *Front Wheels . 2 *driving Wheels
-Front wheel base :850mm/ 33.4 in
-Driving wheels base :190mm/ 7.4 in

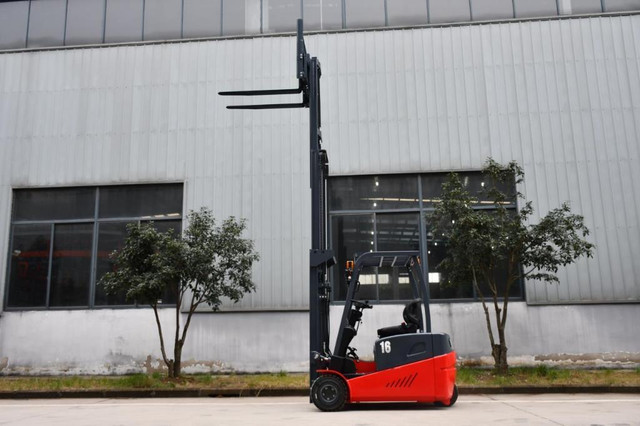

-Max Lifting Height : 3000mm/ 118 in, Standard
duplex mast. -Free lift Height :150mm/ 5.9 in
-Overall dimension : 2700mm (with forklength)*980mm*2100mm (106*38.5*82.6 in)
(with fram height )
-Ground clearance : 10mm/ 0.39 in
-Fork Positioner:200-950mm/ 7.8-37.4 in
-Min.Turing raduis:1600mm/ 63 in
-Channel width ,with 1000*1200mm/ 39*47 in tray
:3250mm
-Channel width ,with 800*1200mm (31.4*47 in) tray : 3150mm/ 124 in
-Max .Gradeaility (Loaden/unload):15/20 %
-Steering type : Hydraulic pressure
-Battery :48V/260Ah
-Travelling speed (Loaden/unload):8/10 Km/h
-Lifting Speed (load/unload):240V/450 mm/s
