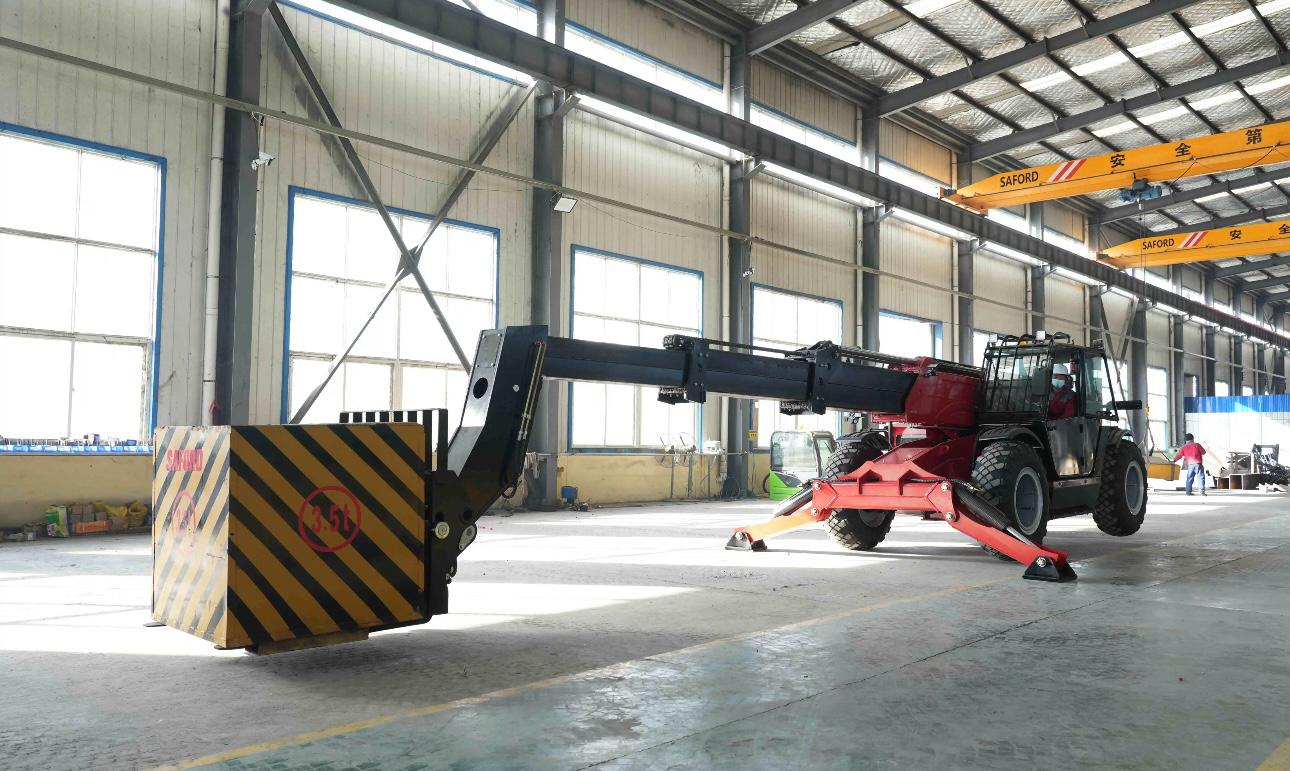

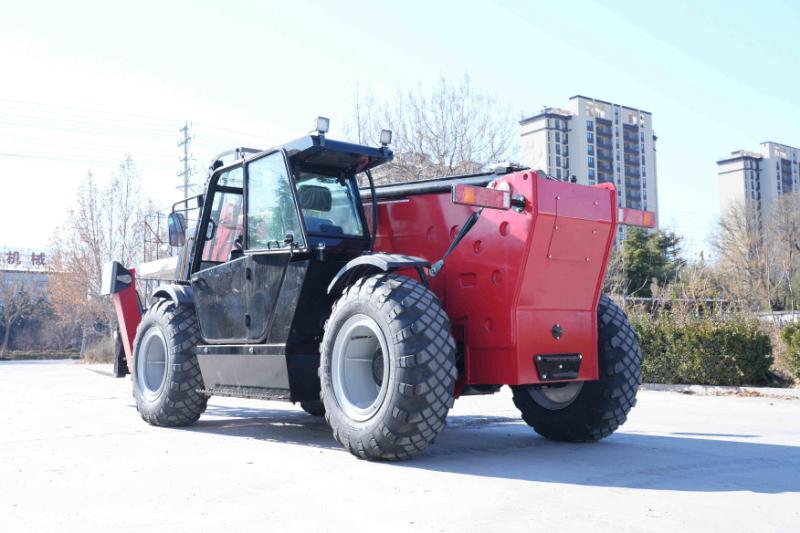

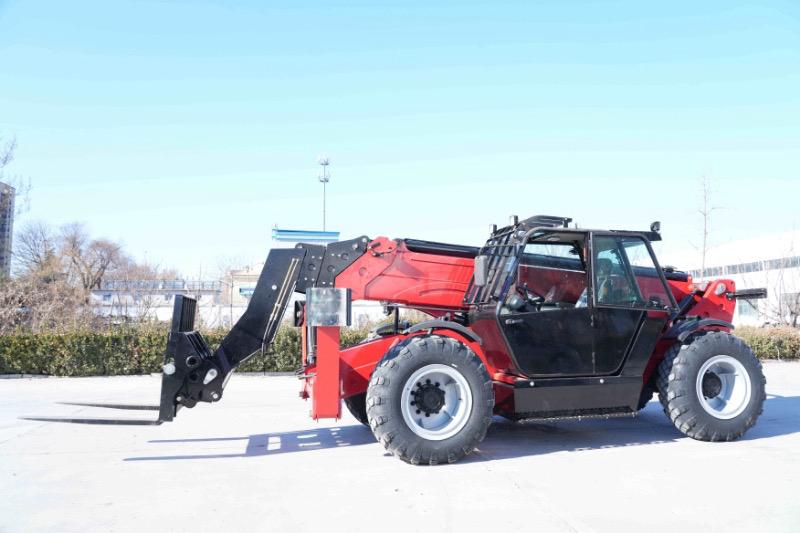

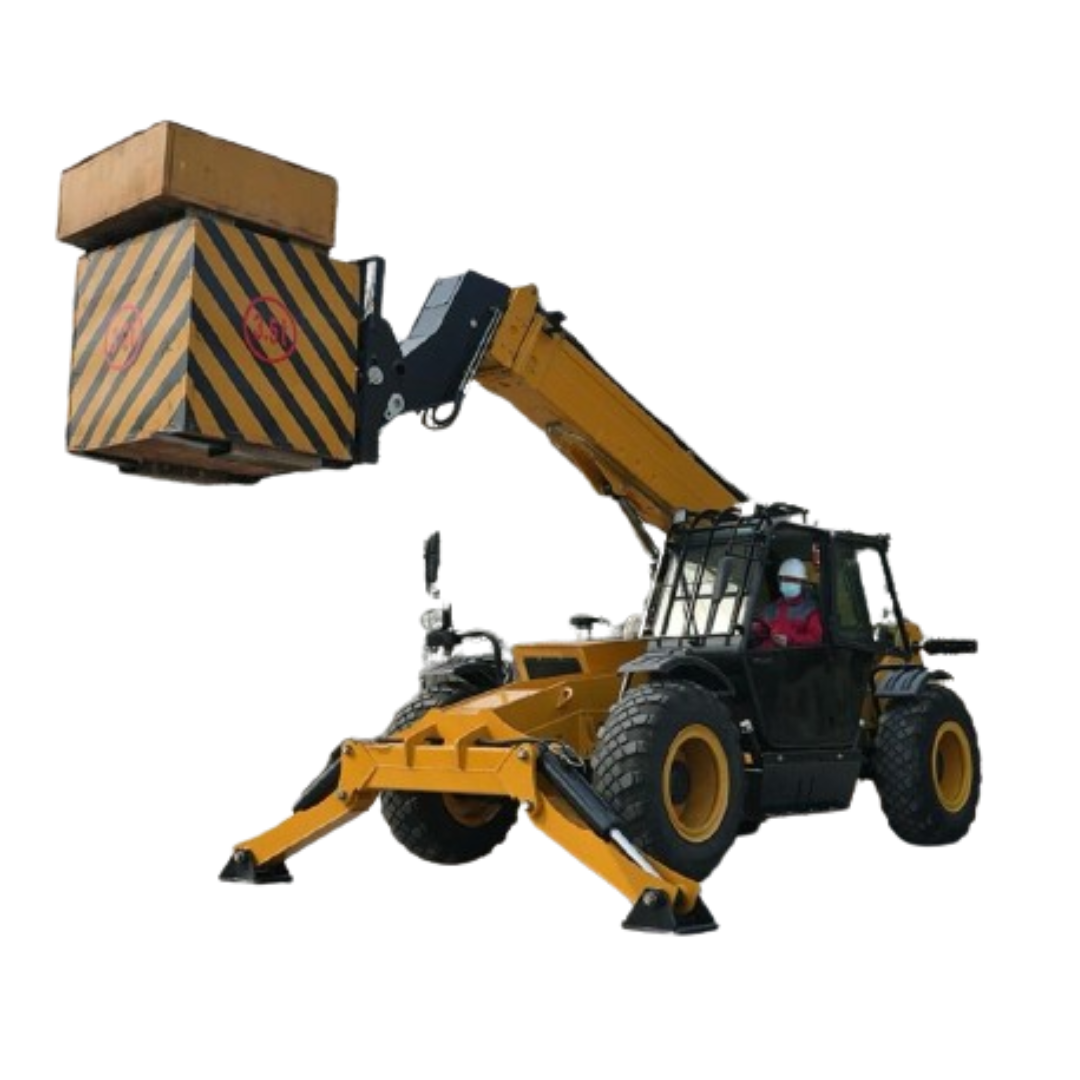

CAEL 59 ft Telescopic handler forklift truck
Model: CAEL 59-TH
Manufacturer: CAEL
Engine: Cummins 4BT3.9-C125
Rated power: 92kw/123HP
Type: Four stroke, diesel engine
Displacement: 3910L
Performance:
Max. lifting capacity:4000kg
Max. lifting capacity at max.
Reach: 2500kg
Capacity atmax. boom extension | 850kg
Max. lifting height: 57 ft
Max. horizontal boom extension: 4.2 ft
Gradeability: 30%
Max. speed: 40km/h
Differential-Axles
Driving model: 4WS, Crab steering, 2WS
Front axle: Rigid
Rear axle:Oscillating
Moving brake: Service air brake(disc) on the4 wheels
with double hydraulic system
Parking brake: Negative parking brake
Tires:405/70-24
Dimensions
Lenght (without fork) D:20 ft
Height F: 8.1 ft
Width H: 7.5 ft
Shaft distance B1: 10.3 ft
Tire distance G: 6.2 ft
Cabin width E: 2.9 ft
Ground clearance A: 1.2 ft
Front tires to Rear chassis C: 15 ft
Standard fork length
Option
Overloading warning & Limitation
Titable chassis(+-6)
Sideshift
Fork positioner
Raisable cabin
Bigbucket for bulk cargo
Normal bucket for construction
Working platform(Fordable
working platform,swing working
platform etc…)
attachments(Hook,grapple.auger
Mixing bucket,tilted fork,4in1
bucket,winch,baler,manipulator
