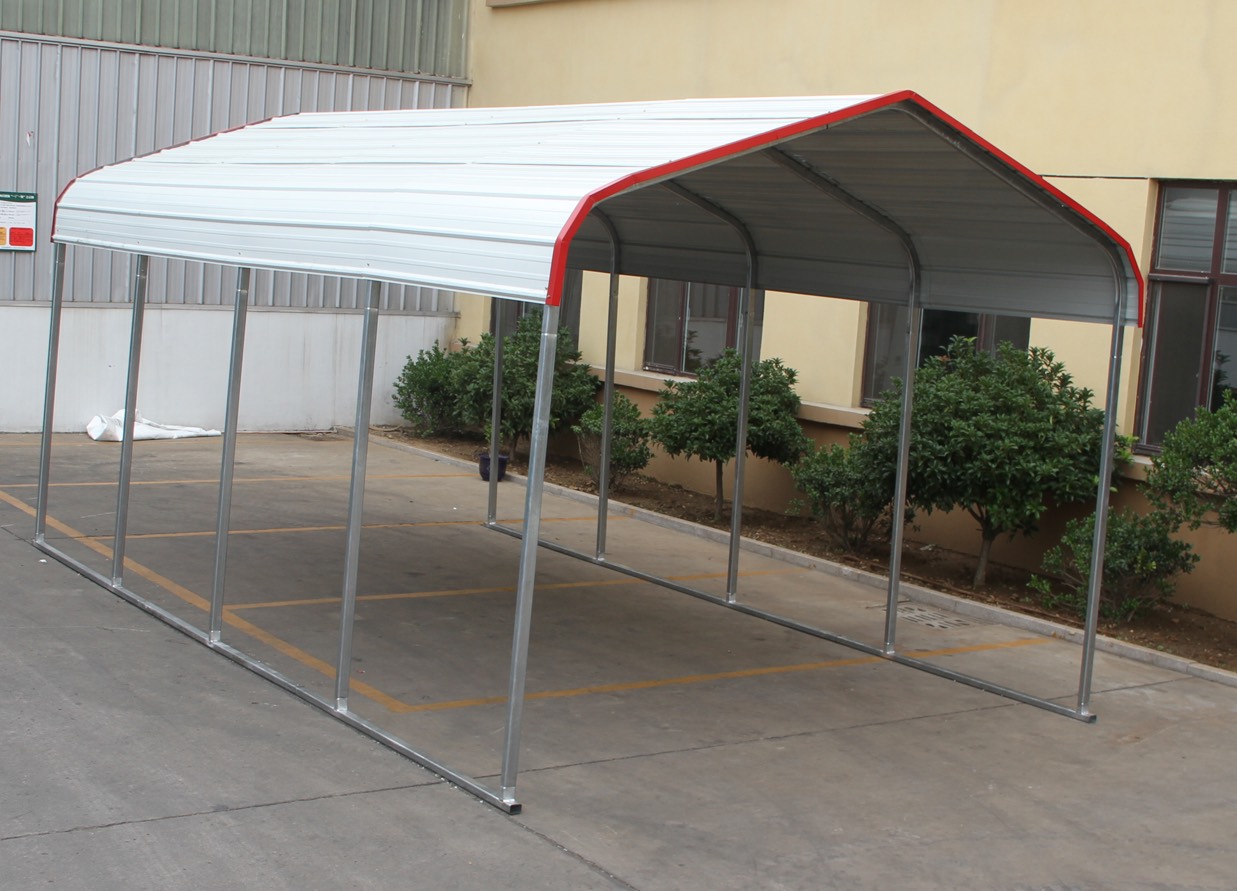

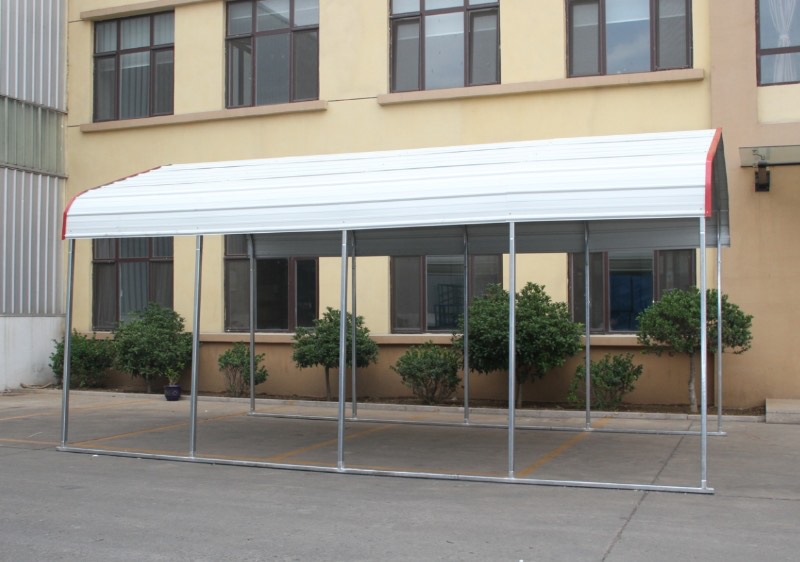

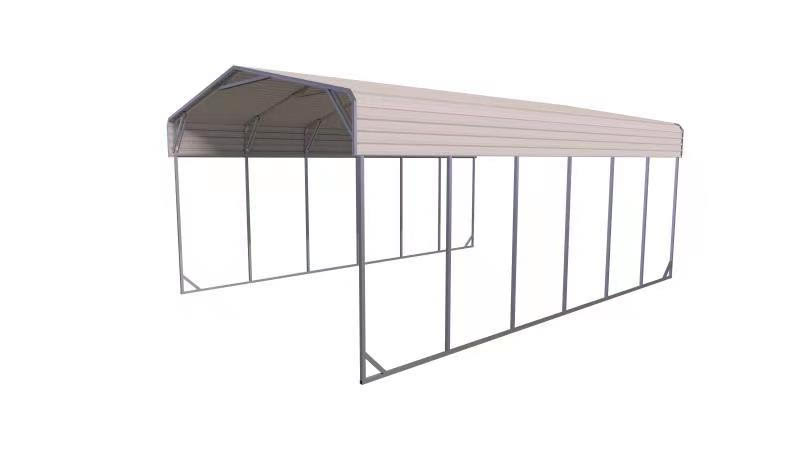

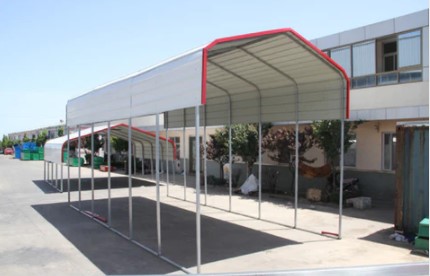

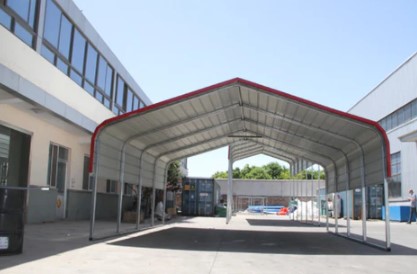

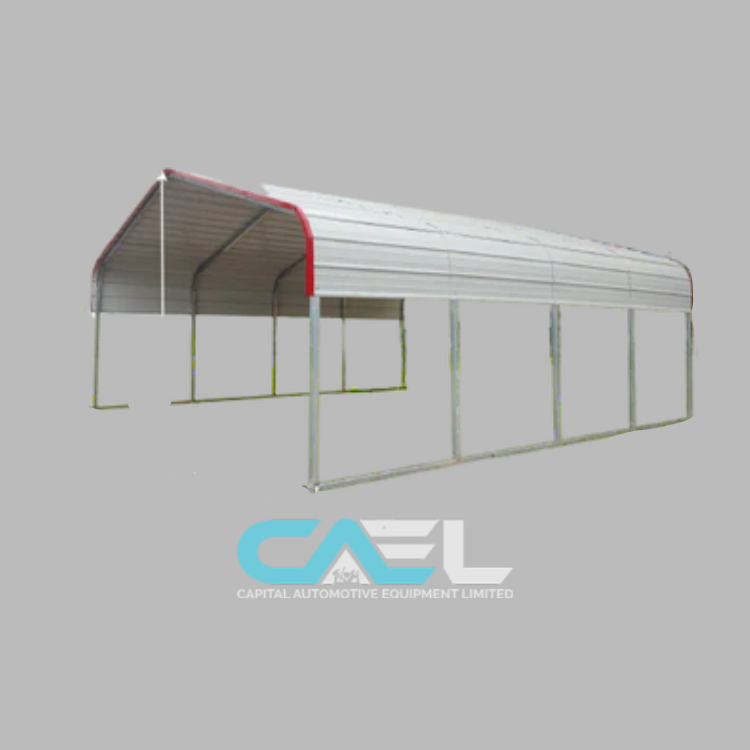

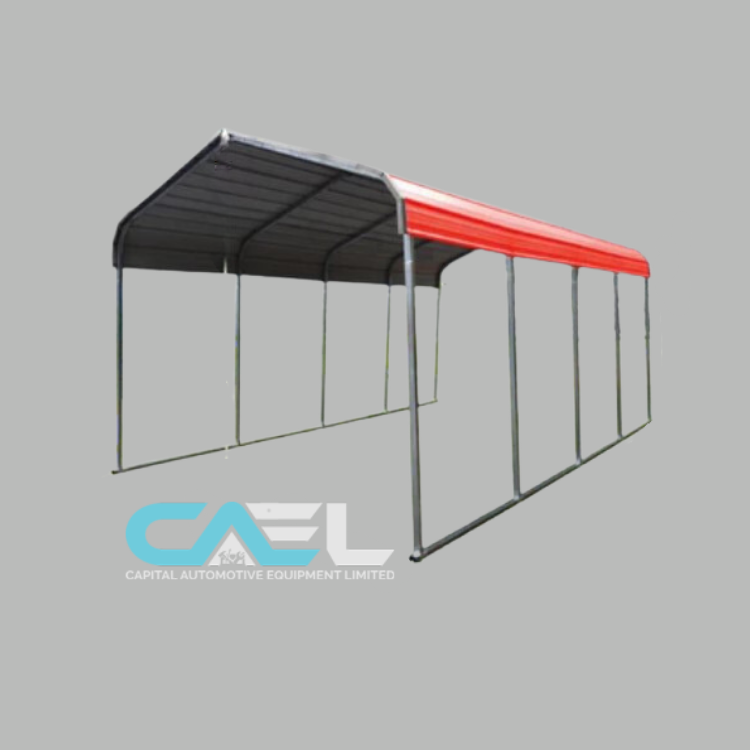

CAEL Carport 12’/20’/30’/40′ Wide

Call for price
CarportPRICE
M12X202299
M20X202799



Enhanced Hot-Dip Galvanized Steel Car Shelter:
  • Exceptional Durability: Constructed from hot-dip galvanized steel for lasting quality, this shelter resists fading and aging, ensuring a long lifespan.
  • Cost-Efficient and Low Maintenance: A smart investment with low maintenance requirements, saving you time and money.
  • Quick Assembly and Easy Installation: Swift setup and user-friendly installation, including convenient fitting replacements.
  • Elegant Design and Longevity: Artistic aesthetics combined with a lifespan of up to 15 years for an attractive and enduring solution.
  • All-Weather Protection: Safeguard your vehicle from snow, rain, high temperatures, and falling objects.
  • Safety Assurance: Protection against spontaneous combustion and toxic gas release in hot weather.
  • Simple Installation: Easy-to-follow installation manual provided for hassle-free setup.
  • Comprehensive Coverage: Waterproof, fire-retardant, and UV-resistant for complete protection in all conditions.
Category: Tags: ,

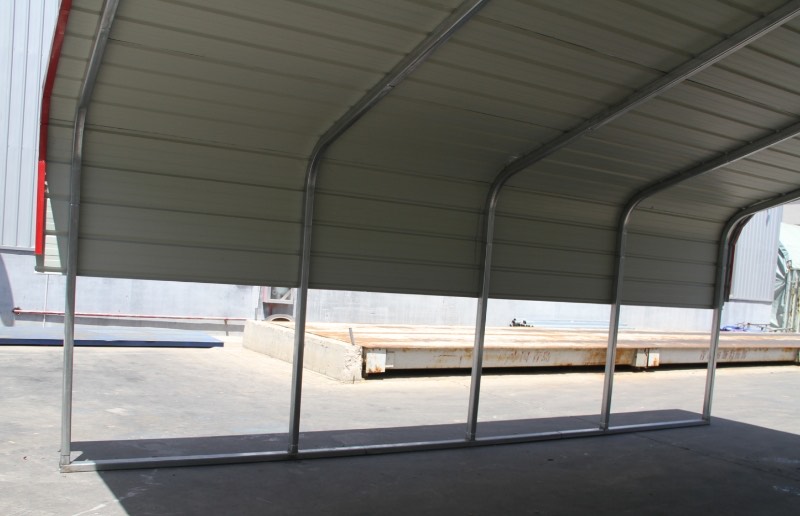

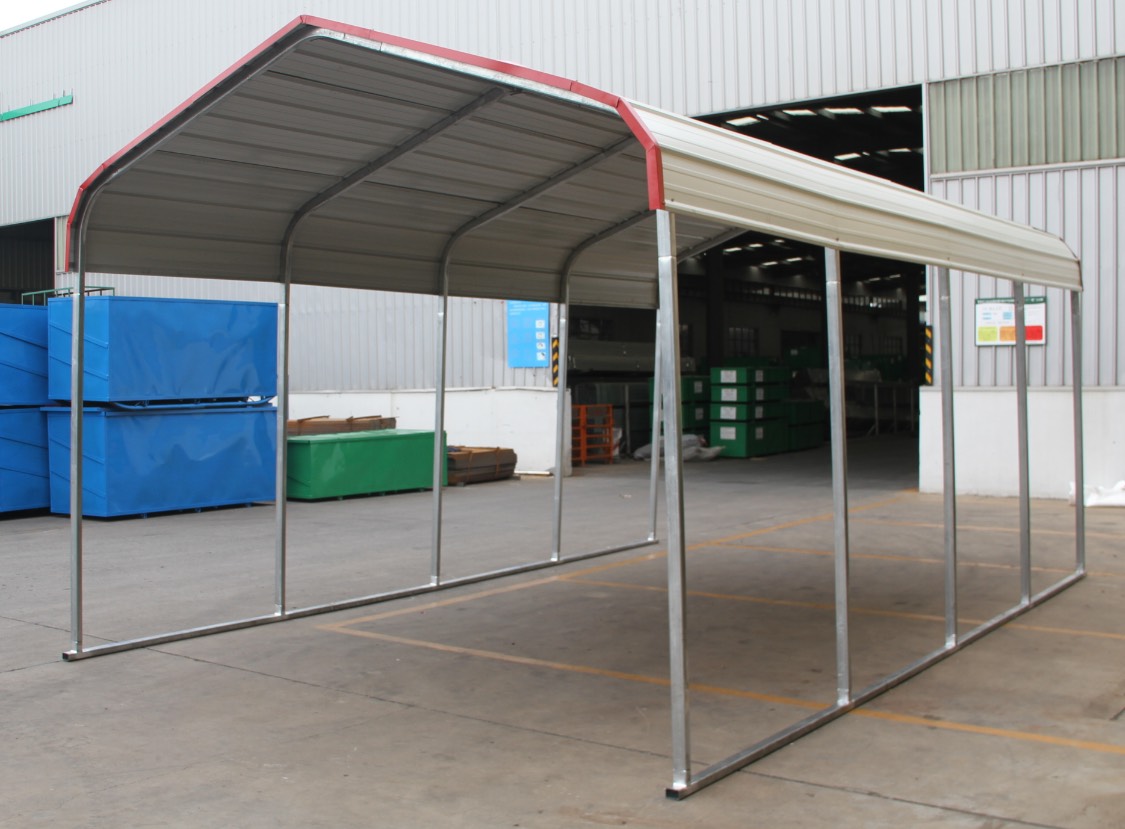

Discover the CAEL Classic Steel Carport, your ultimate solution for protecting vehicles and equipment. Built to last with hot-dipped galvanized steel, this carport is easy to assemble and incredibly sturdy, capable of withstanding high winds and heavy snow loads. Its heavy-duty design ensures reliable protection in challenging weather conditions, providing peace of mind for your valuable assets.



Specifications:



Cover: Crafted from 0.35/0.42mm steel sheets, ensuring enduring protection and resilience.

Material: The choice of Color Steel Tile not only adds an aesthetic touch but also enhances durability.

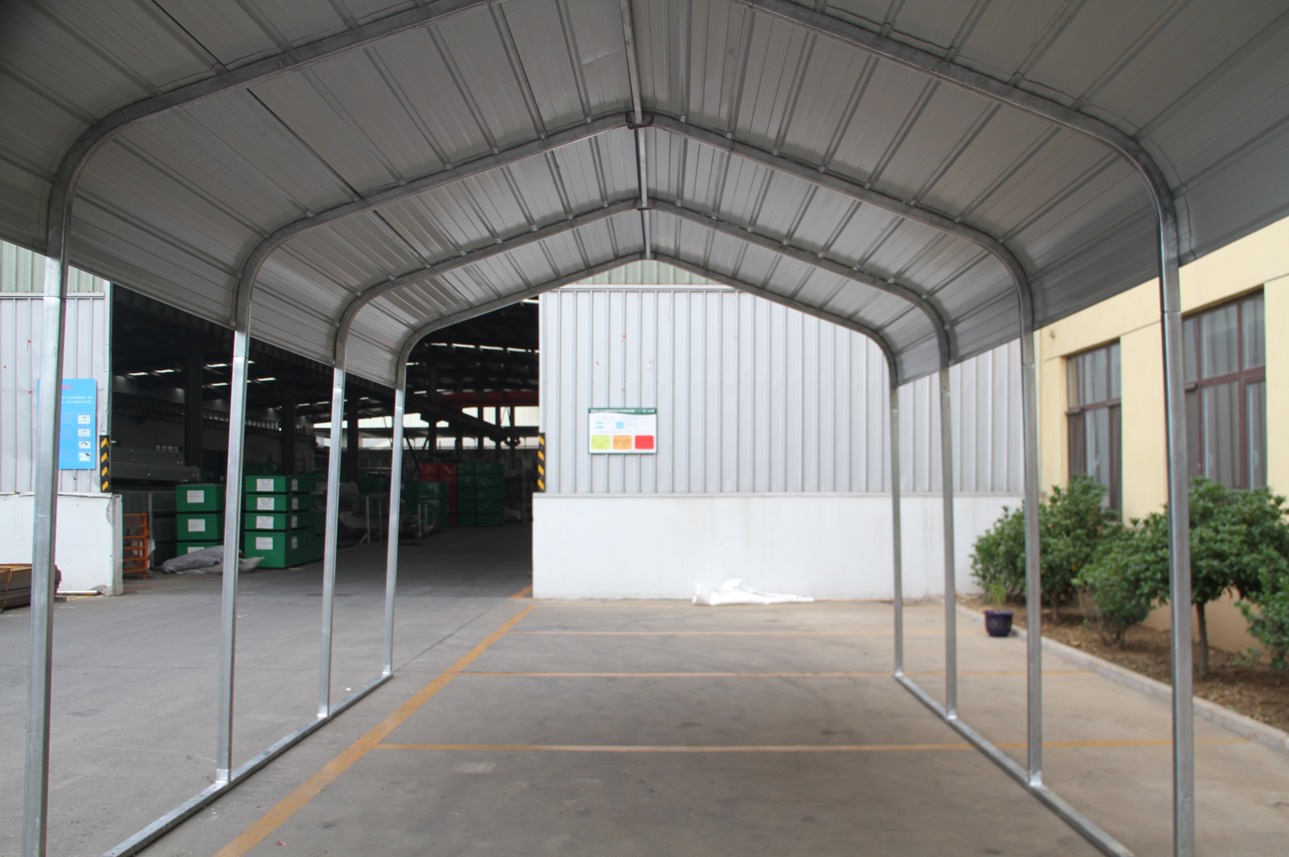

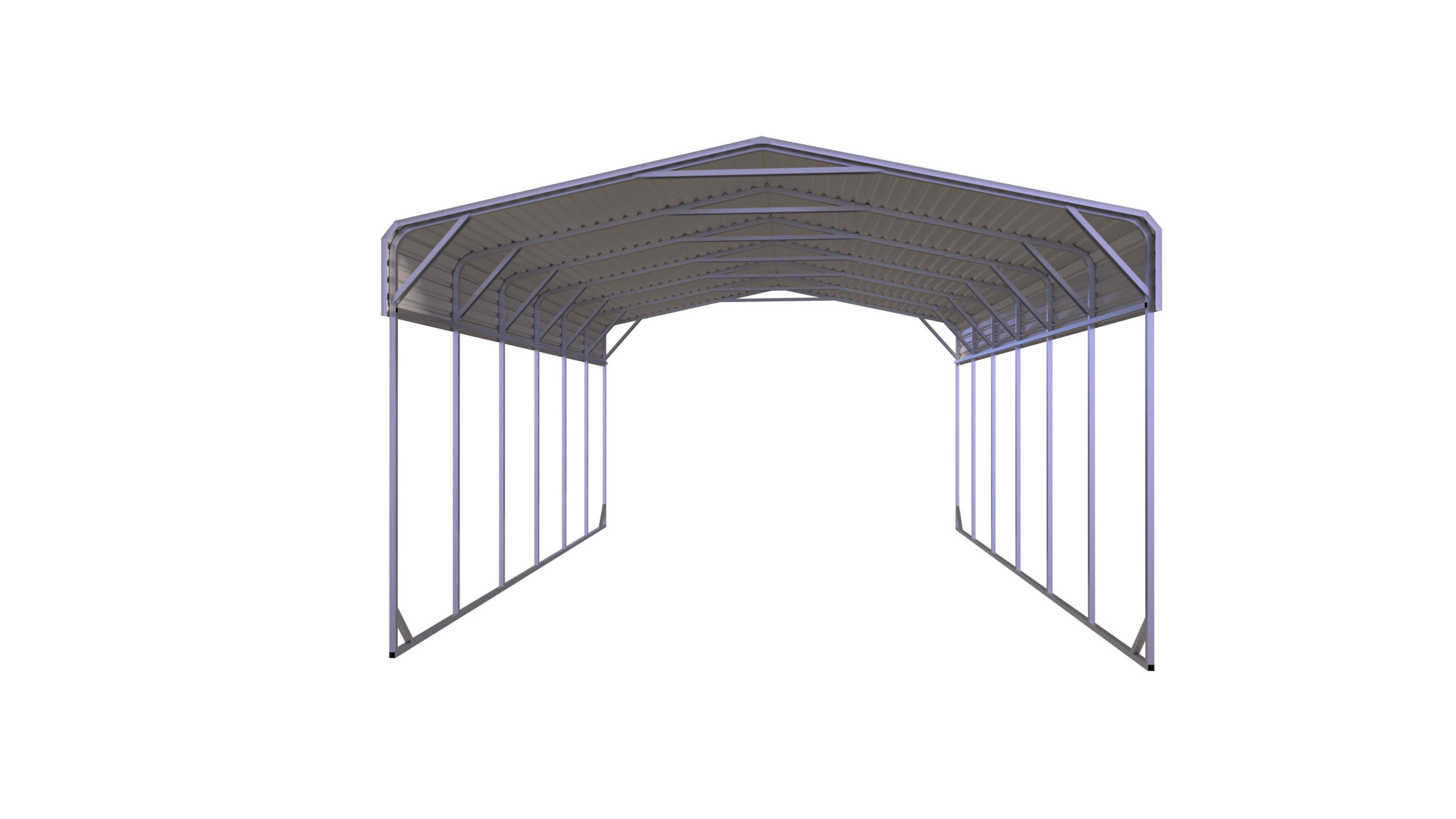

Frame: Engineered with a single trussed galvanized tube frame, providing structural strength and longevity for your sheltered space.

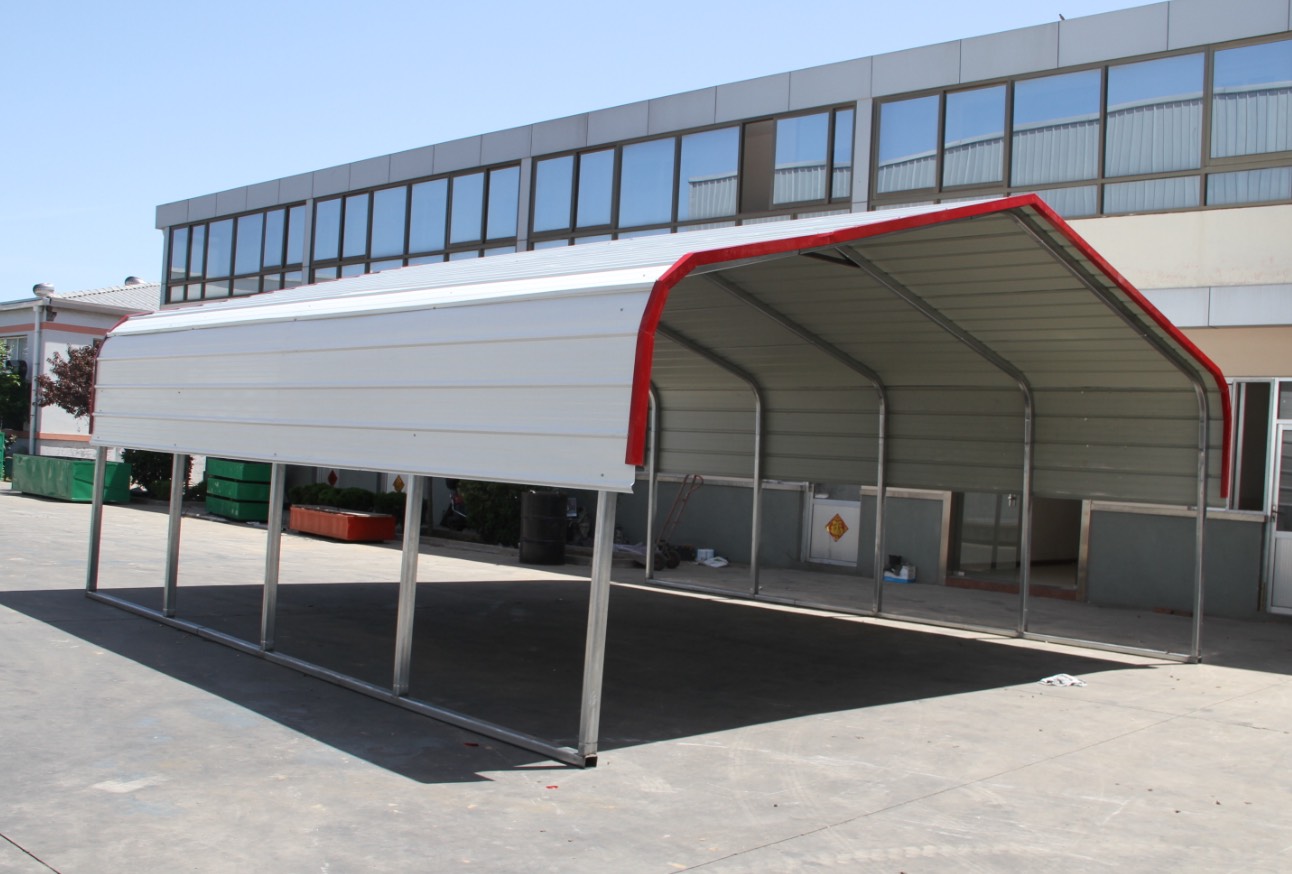

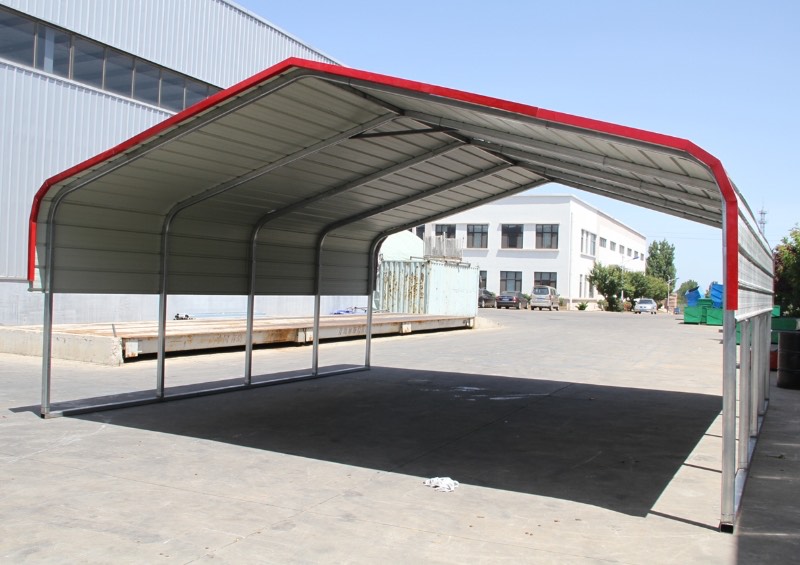

Particulars12×20 Carport20×20 Carport
WxLxH12x20x10′20x20x10′
Arch Tube1.5″x2.3″x0.7″2×2.8x.07″
Shoulder Height8′7′
Peak Height10′10′
Eave Height8.5′7′
FrameSteel square tubeSteel square tube
Roof & wallSteel sandwich panel or corrugated color steel sheetSteel sandwich panel or corrugated color steel sheet



**Other sizes are:

Model:  Carport 30′ WIDE

Size: 20 x 30 x 14

with 0.32mm color boards

with 50 x 50 x 1.5 mm steel pipe, and 20 x 40 x 1.2mm steel pipe frame

Packaging: 85 x 39 x 25



Model:  Carport 40′ WIDE

Size: 18 x 40 x 9

with 0.32mm color boards

with 50 x 50 x 1.5 mm steel pipe, and 20 x 40 x 1.2mm steel pipe frame

Packaging: 85 x 40 x 30





Manual:

MANUAL FOR 12’x20′ CARPORT

MANUAL FOR 20’x20′ CARPORT
