Specifications
Platform Length: 205″
Platform Width: 82.67″
Platform Height: 21.65″
Hydraulic Pressure: 70Mpa (10000 psi)
Post Max. Tension:10T
Post Working Range: 360 Degree
Pneumatic Pressure Range: 0.8 Mpa
Max. Lifting Power: 7716.20LBS / 3500KG
Total Weight: 5070LBS / 2300KG
Package Wood Box and Cardboard, about 5CBM

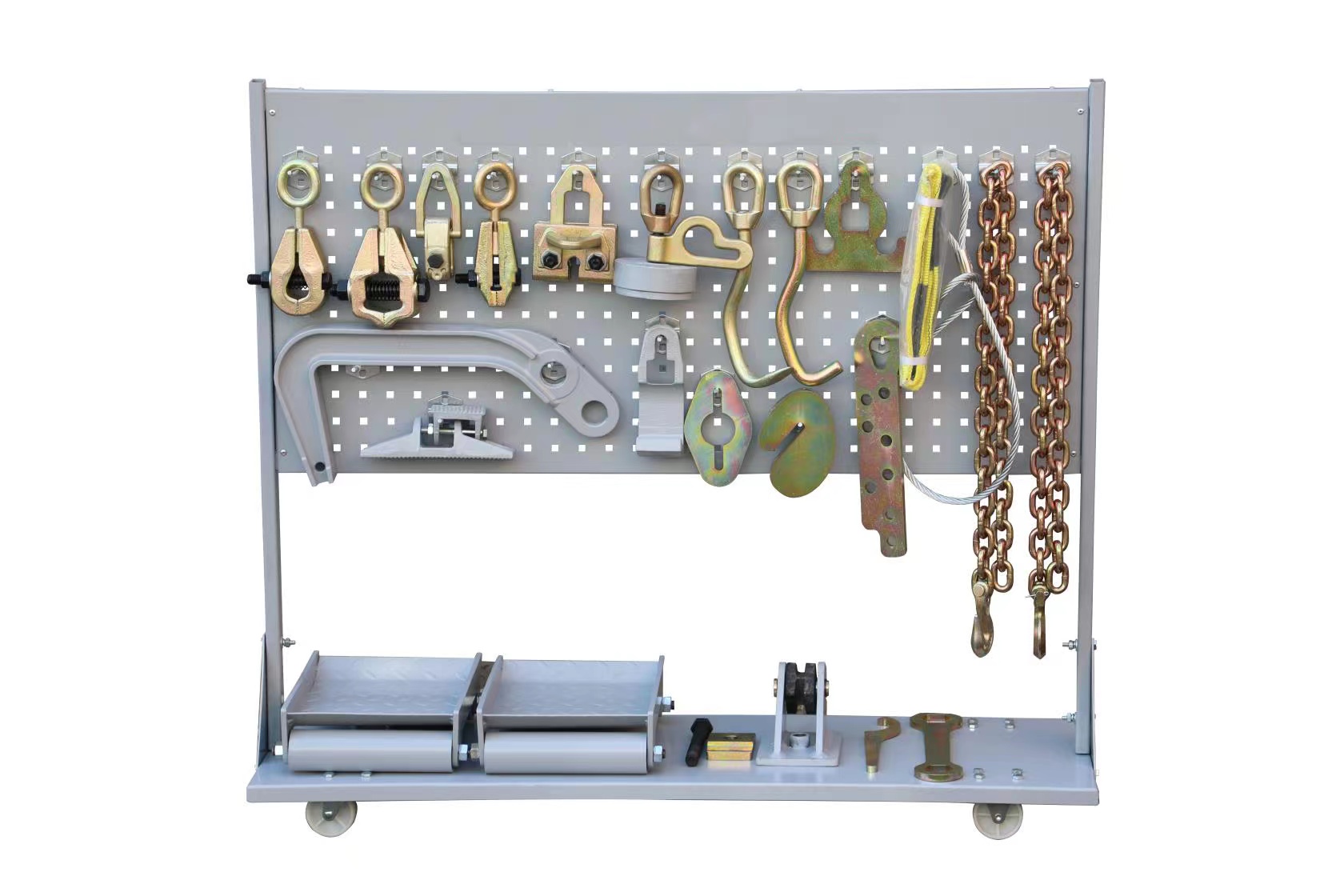

Standard Tools List
| Name | Qty | Name | Qty |
| Short Chain | 1 | Quick Draw Bar | 1 |
| Box Clamp | 1 | Pecial Wrench for Clamp | 1 |
| Small Clamp | 1 | Handy Link | 1 |
| Right Angle Clamp | 1 | Double Claw Hook | 1 |
| Over loading Pulling Clamp | 1 | Boltless Strut Tower Puller | 1 |
| Grab Hook | 1 | Cable Sling | 1 |
| C Type Clamp | 1 | Nylon Sling | 1 |
| Crescent Wrench | 1 | Safety Rope | 2 |
| Mini Clamp | 1 | Down Pulling Assembly | 1 |
| Chain Connector | 1 | Trolly Tool | 1 |
