Specifications

Outside Size: 275.59″ x 210.62″ x 133.85″

Inner Size: 271.65″ x 153.54″ x 104.33″

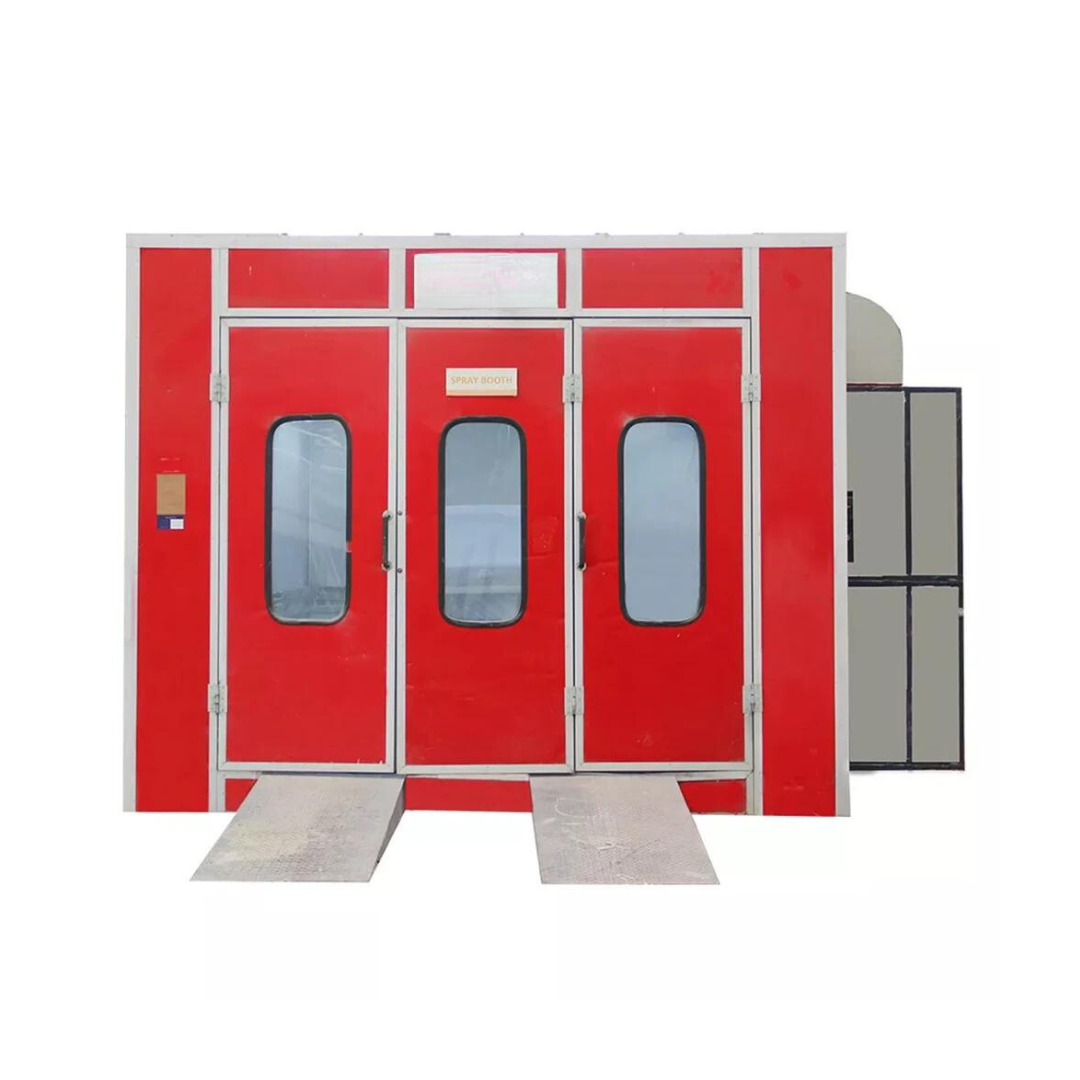

Entrance door: 3 folds, 118.11″ x 98.42″, bending steel without covered frame.

Emergency door: 1 fold, 23″ x 78″. Equipped with Handle & Anti-Explosion Lock.

Cabin System

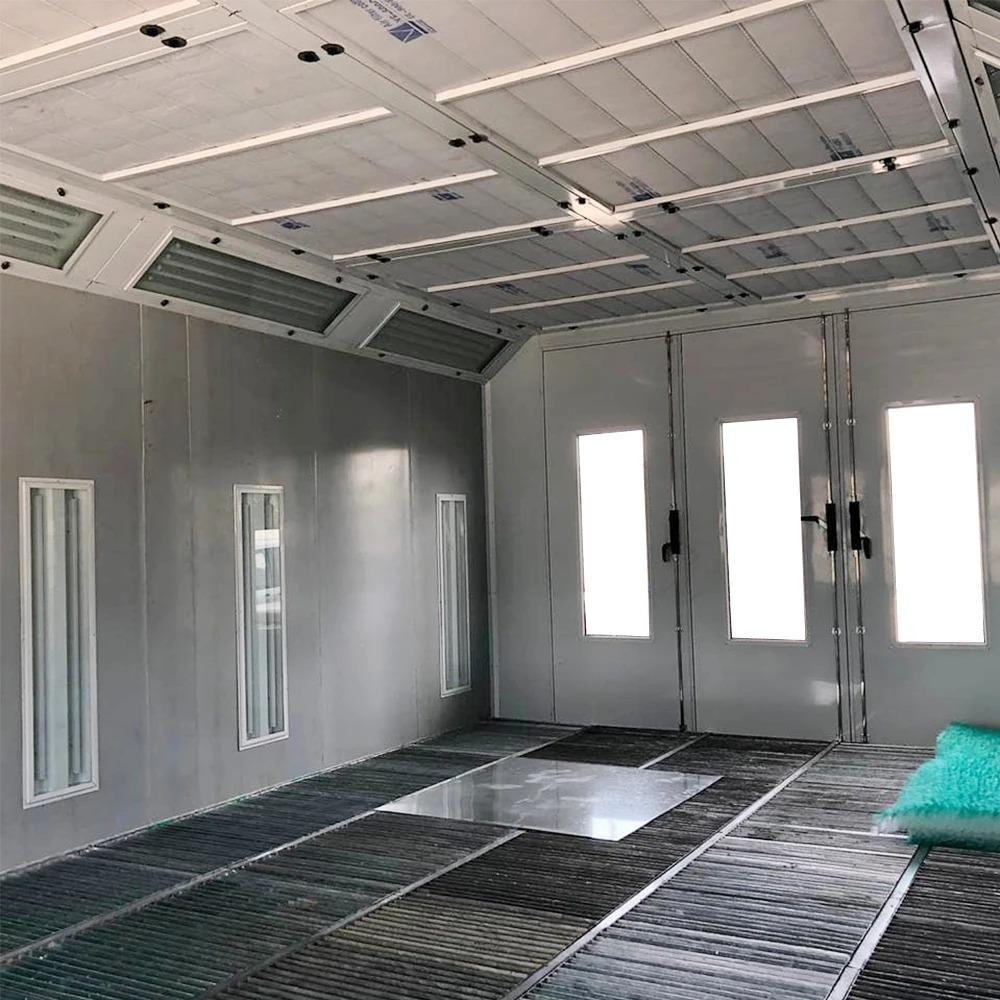

Wall Panel – High quality double construction insulation 2″ EPS panel, 0.426mm thick steel, fire proof and heat-insulation. And, galvanized steel roof panel.

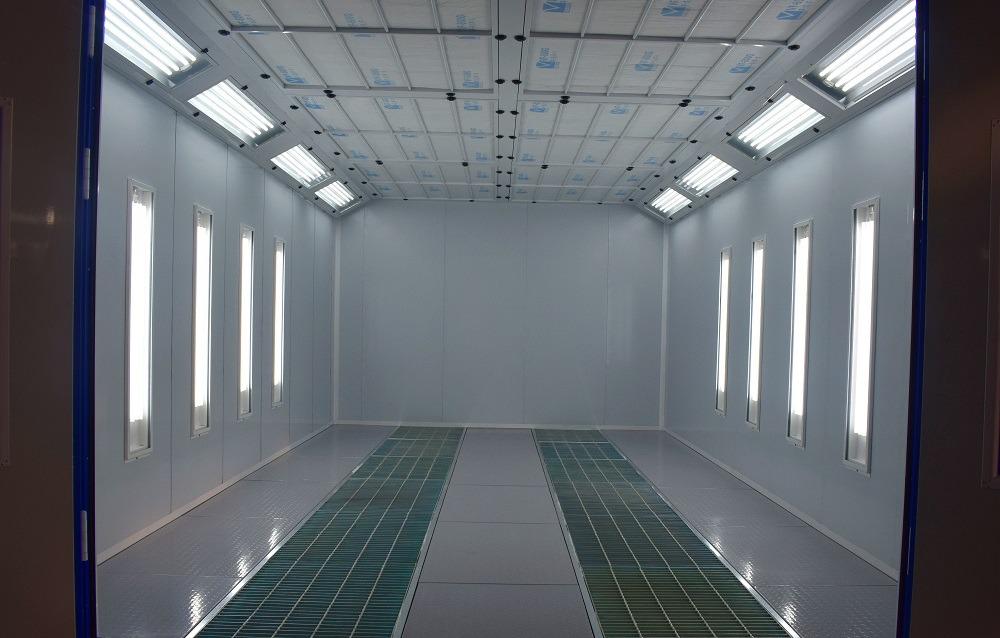

Basement and Floor – Galvanized steel assemble, full metal foundation, height is 11″. 2 rows flat steel grilles (galvanized) and 3 rows wave plate. 2 pieces of Ramps, each size 24″ x 78″ (WxL), diamond plate construction.

Ventilation System

Inlet fan – 2 x 3 KW YDW double-intake centrifugal fans, total air capacity: 12500m3/h

Outlet fan – 1 x 5.5 KW YDW double-intake centrifugal fans, total air capacity: 27000m3/h

Cabinet setting type – Intake air from side upper, adopt powder quadrate steel frame, strong and beautiful. Air duct *2M long  *2unit. Elbow – 90 degrees x 1 unit.

Airflow Speed: 0.35 m/s

Ventilation rate 280 times/h

Heating System

Burner: Italy RIELLO G20 oil burner, heating capacity: 200000kcal/h, with BELIMO 10N electric damper

Heat exchanger: 1.2 mm thickness SUS 304 stainless steel

Cabinet: Rock-wool insulation *1 Unit

Lightening System

Ceiling lights – LED 8 units x 4 pieces = 24 pieces x 16 W

Side lights – Optional

Filtering System

The primary filter can capture granules larger than 10 um, filtering rate > 83%

Ceiling filter can capture granules bigger than 4um, filtering rate > 98%

Control System

Lighting switch, spraying, heat spraying, baking, temperature controller, time-setting, emergency stop.

Voltage 380V, 50HZ, 3 Phase

Total Power 33KW
