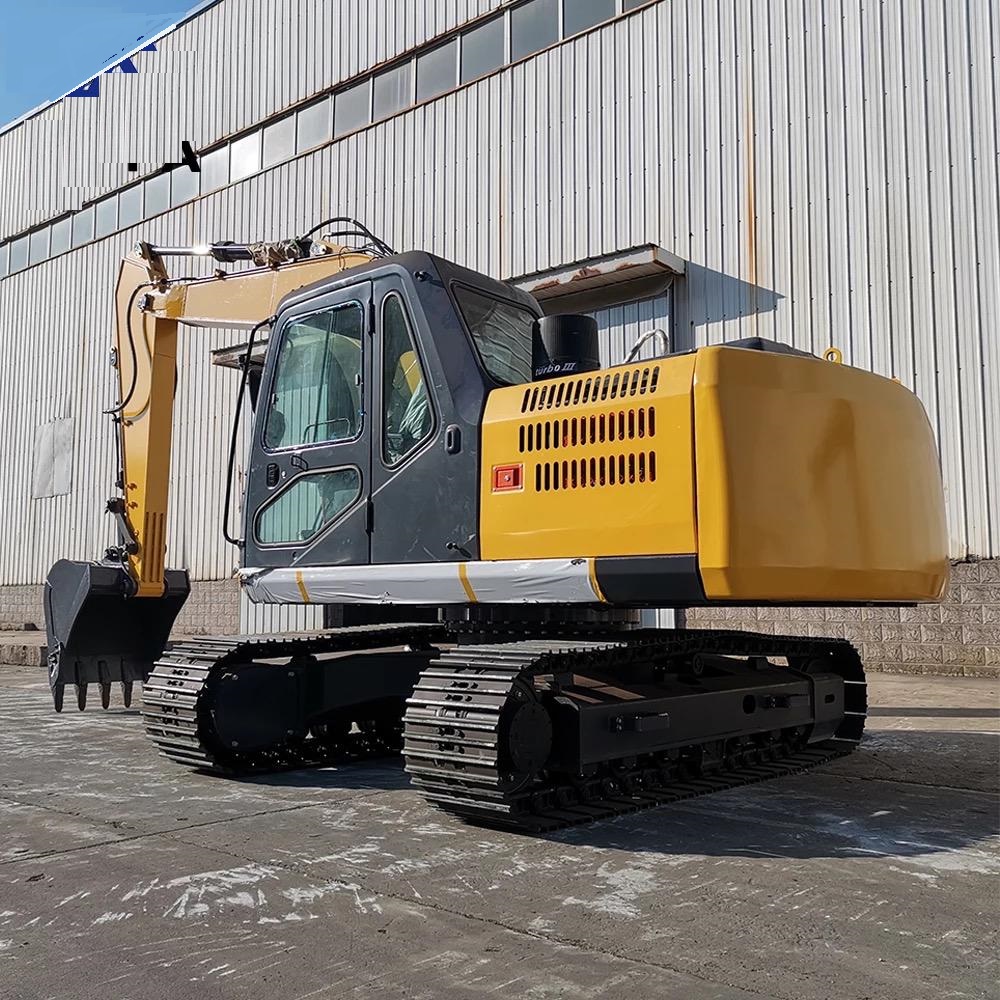

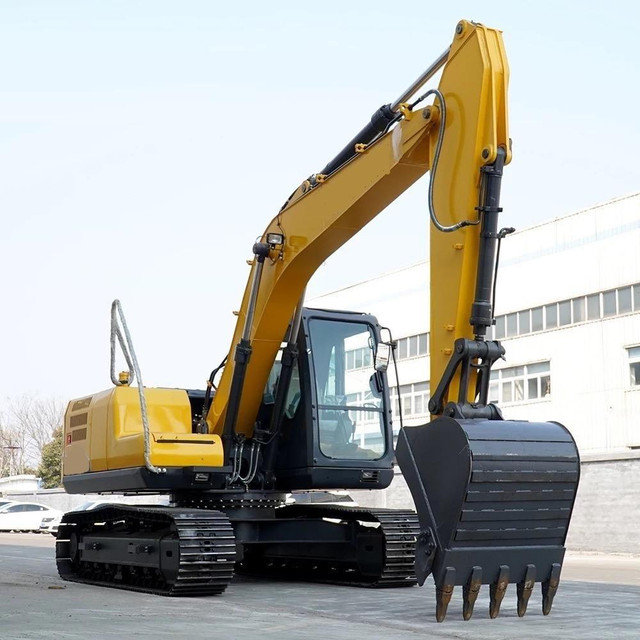

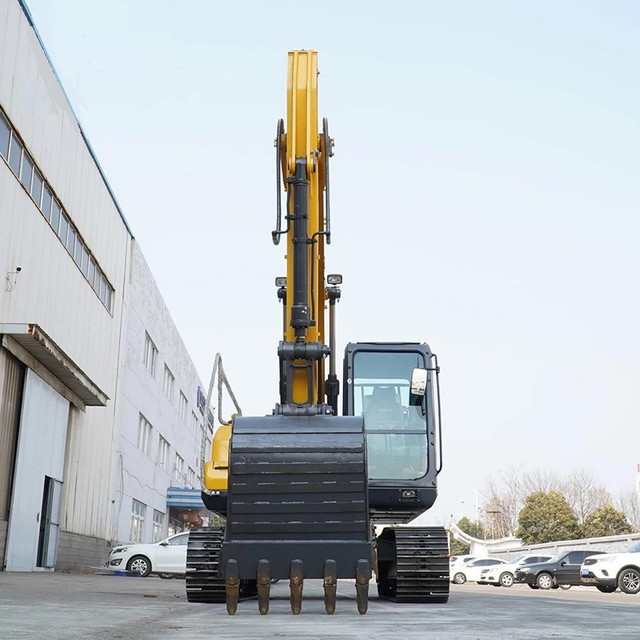

*** Specifications ***

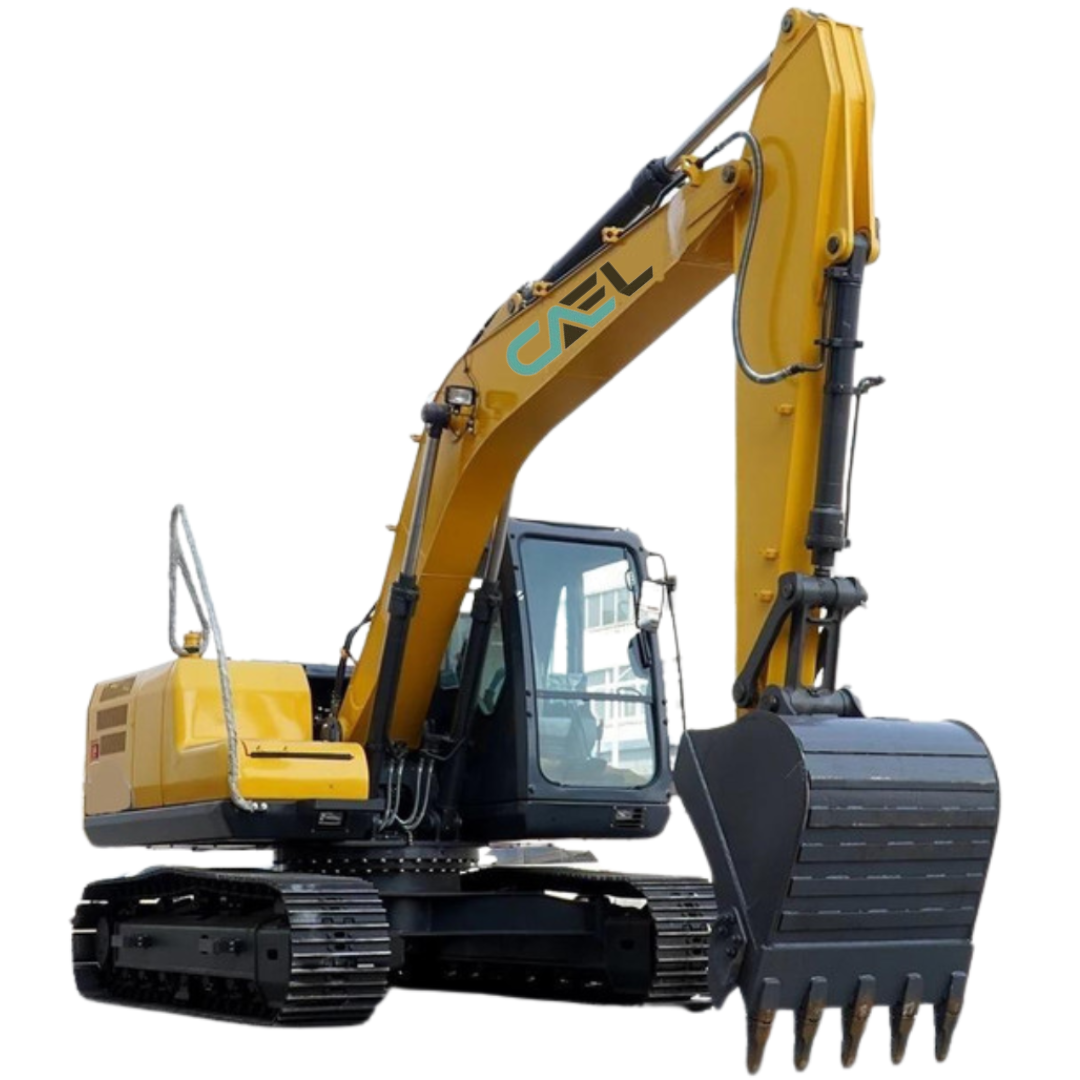

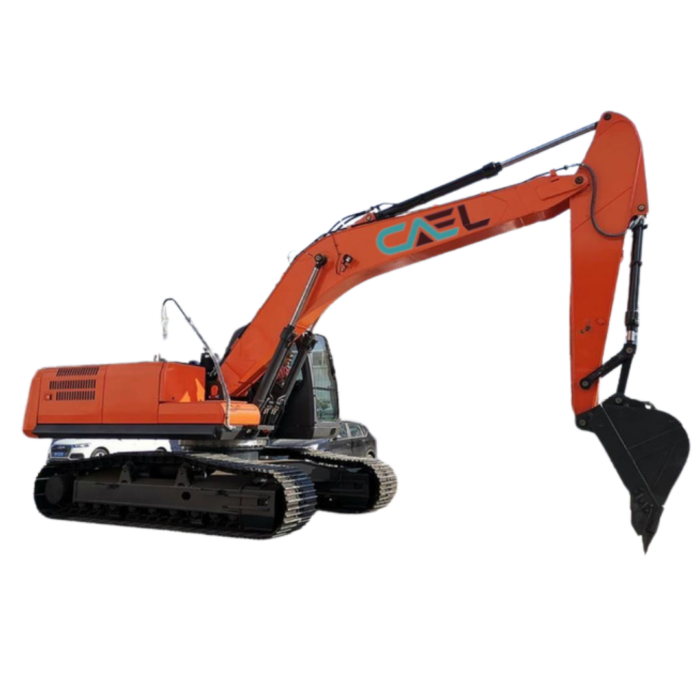

Brand : CAEL
Machine working weight: 14,500kg/ 31967 LBS
Transport length: 30 feet
Bucket capacity (m2) 0.27-0.76
Boom length: 4620mm/ 15.15 inch
Stick length: 2900 mm/ 9.51 inch
Boarding width(mm) :2492/ 8.17 inch
Track length(mm) 3497/ 11.47 inch
Track full width(mm) 2600/ 8.53 inch
Track shoe width(mm) 602/ 1.97 inch
Back end turning radius(mm) 2202/ 7.22 inch
Minimum ground clearance 408 mm/ 1.33 inch
Performance
Walking speed(km/h) 3.3-4.9
Swing speed(rpm) 11.9
Bucket Digging Force (KN)77.3/81.4
Stick excavator(KN) 57.7/63
Scope of Work
Maximum excavation range 8742 mm/ 28.68 inch
The largest excavation range on the ground 8602mm/ 28.22 inch
Maximum excavation depth 6132 mm/ 20.11inch
Maximum excavator height 8952mm/ 29.37inch
Maximum discharge height 6532mm/ 21.43inch
Maximum vertical depth that can be excavated 4652 mm/ 15.26inch

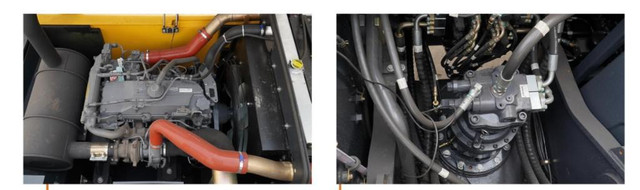

Engine
Engine model: Isuzu/Cummins
Rated power(kw/rpm) 75/1900
Cooling method: water cooling
Body Size
Total length of transport: 7702 mm/ 25.26inch
**2years warranty on motor **
**1year Warranty on all parts**
Option Hydraulic Thumb: C$3000
Option Dozer Blade: C$3500
