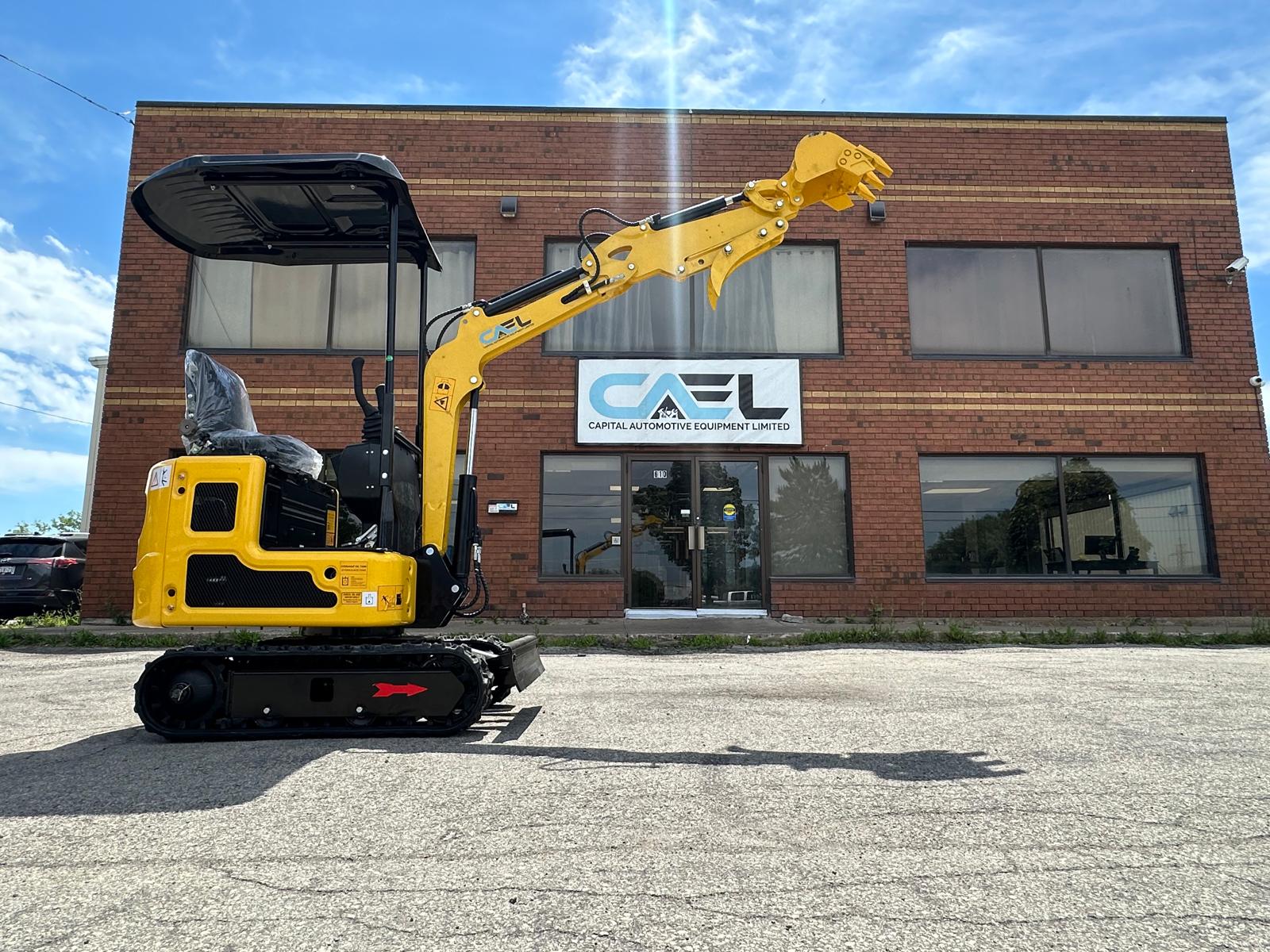

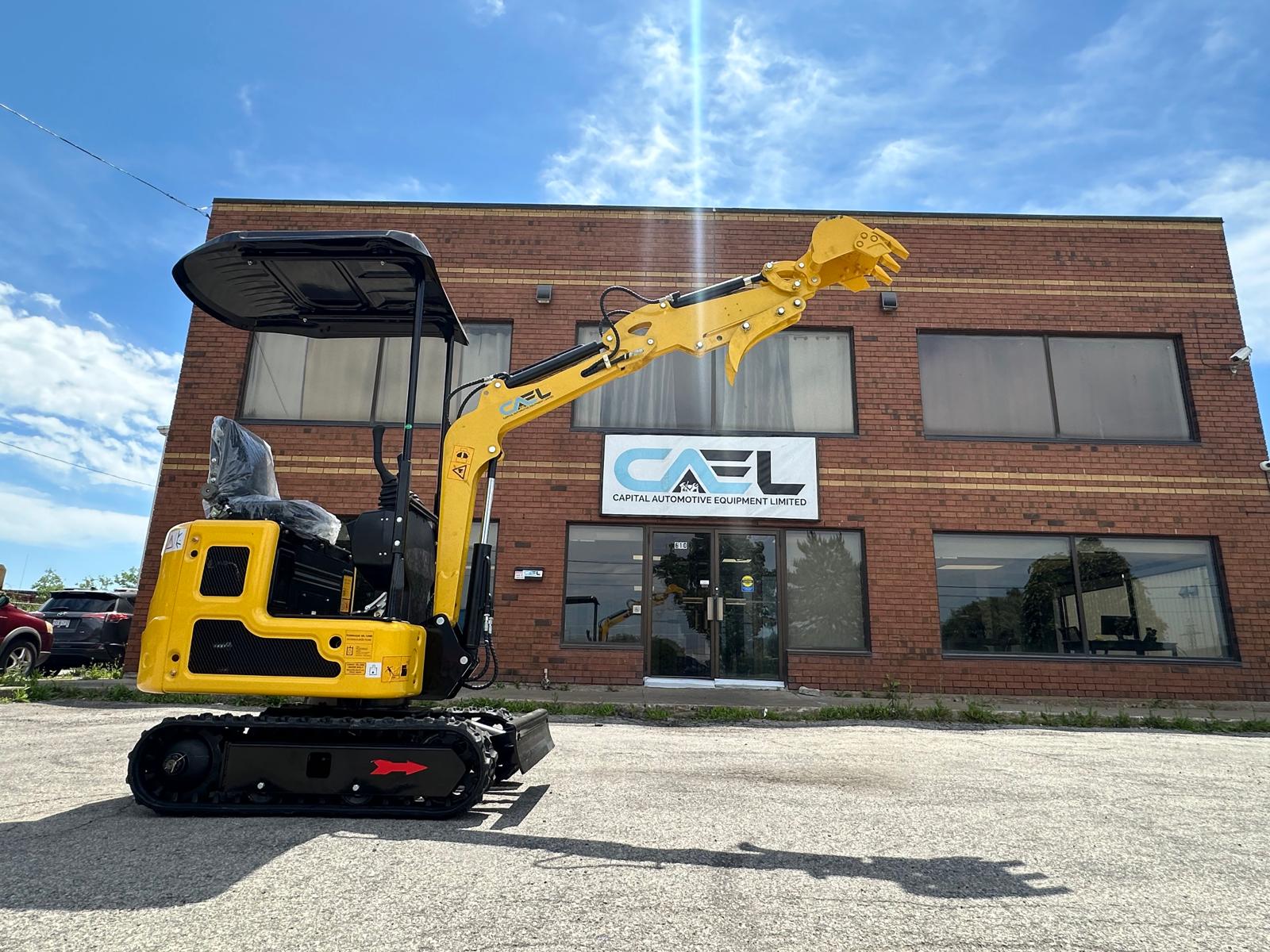

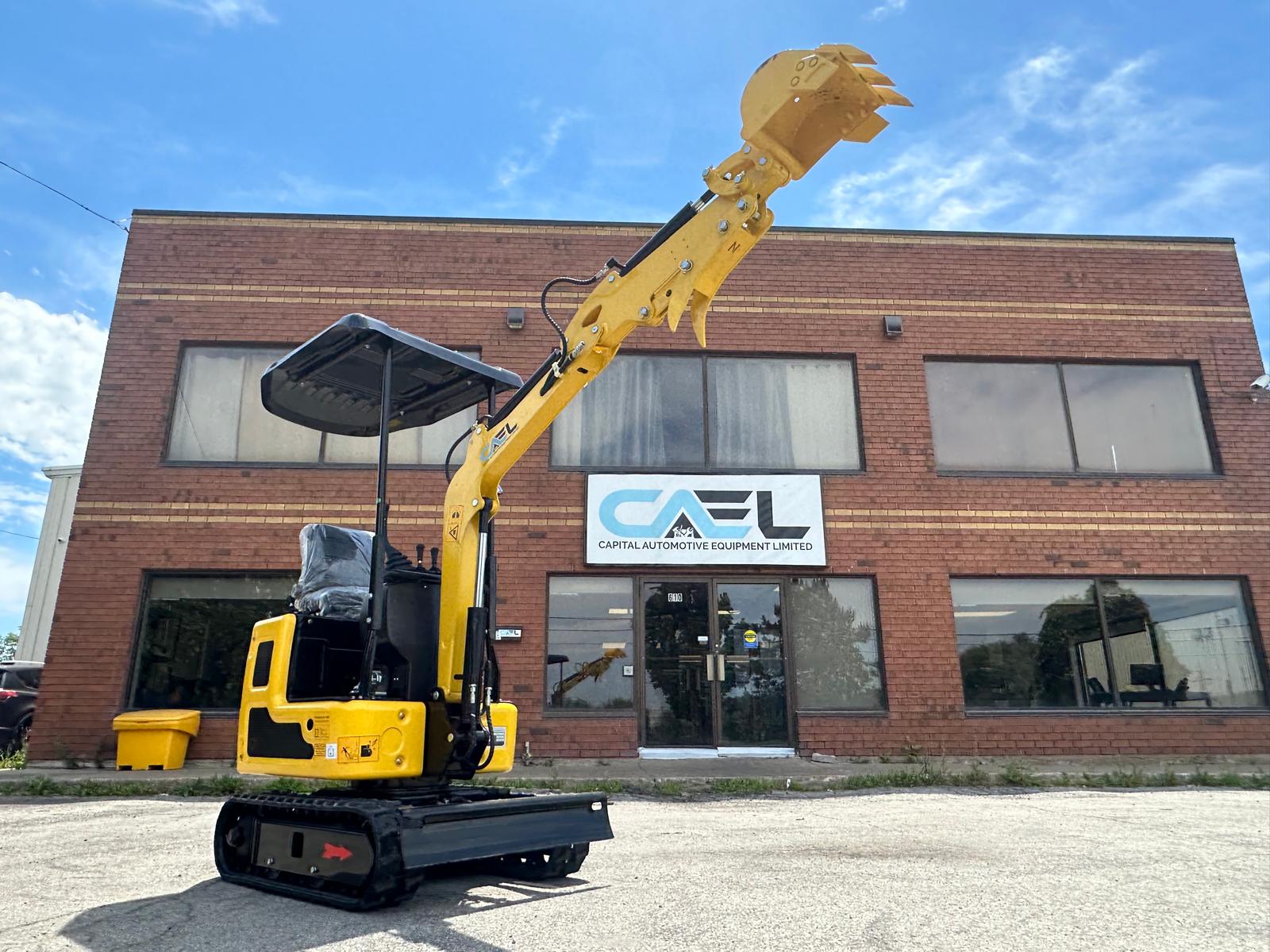

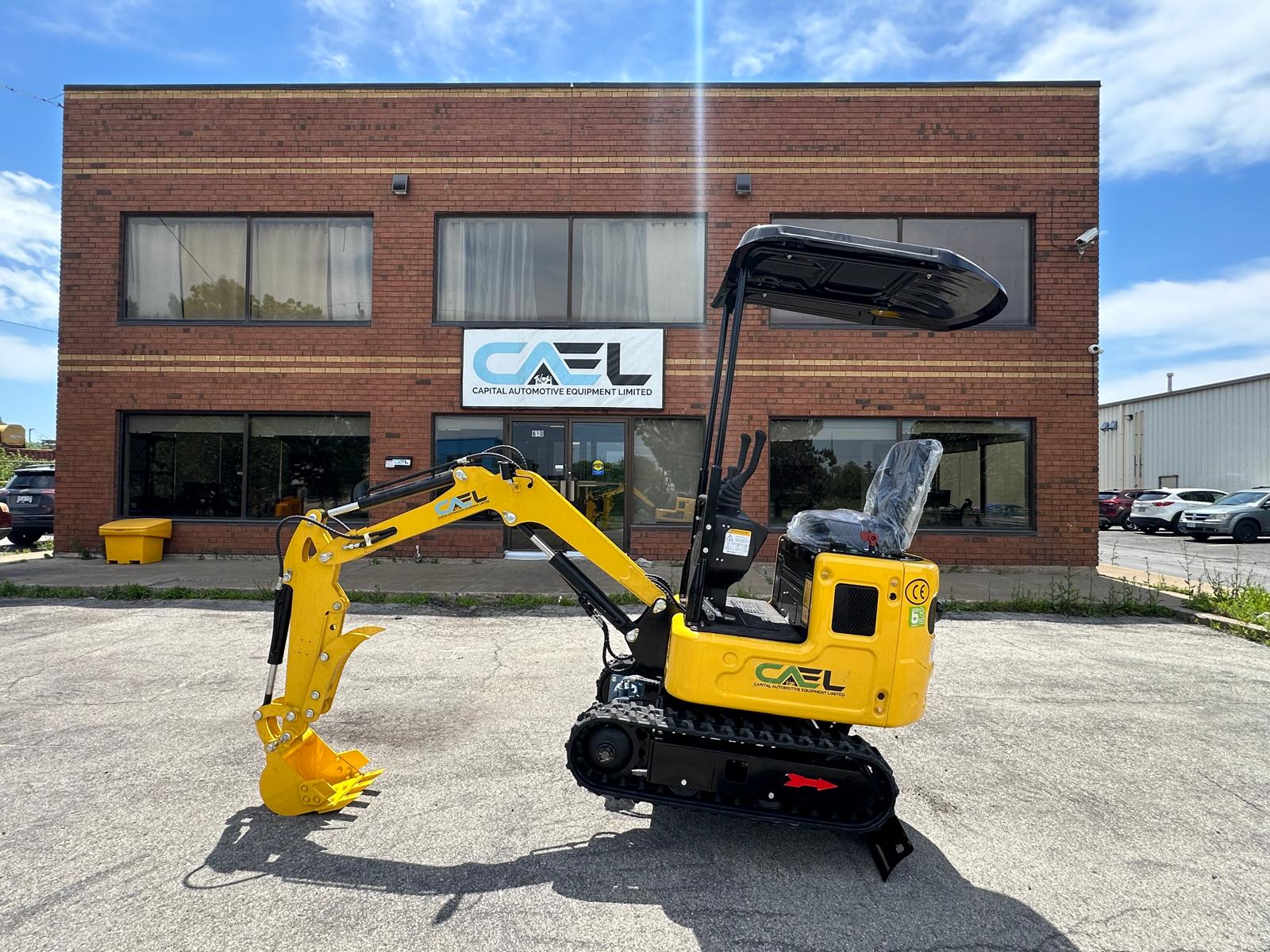

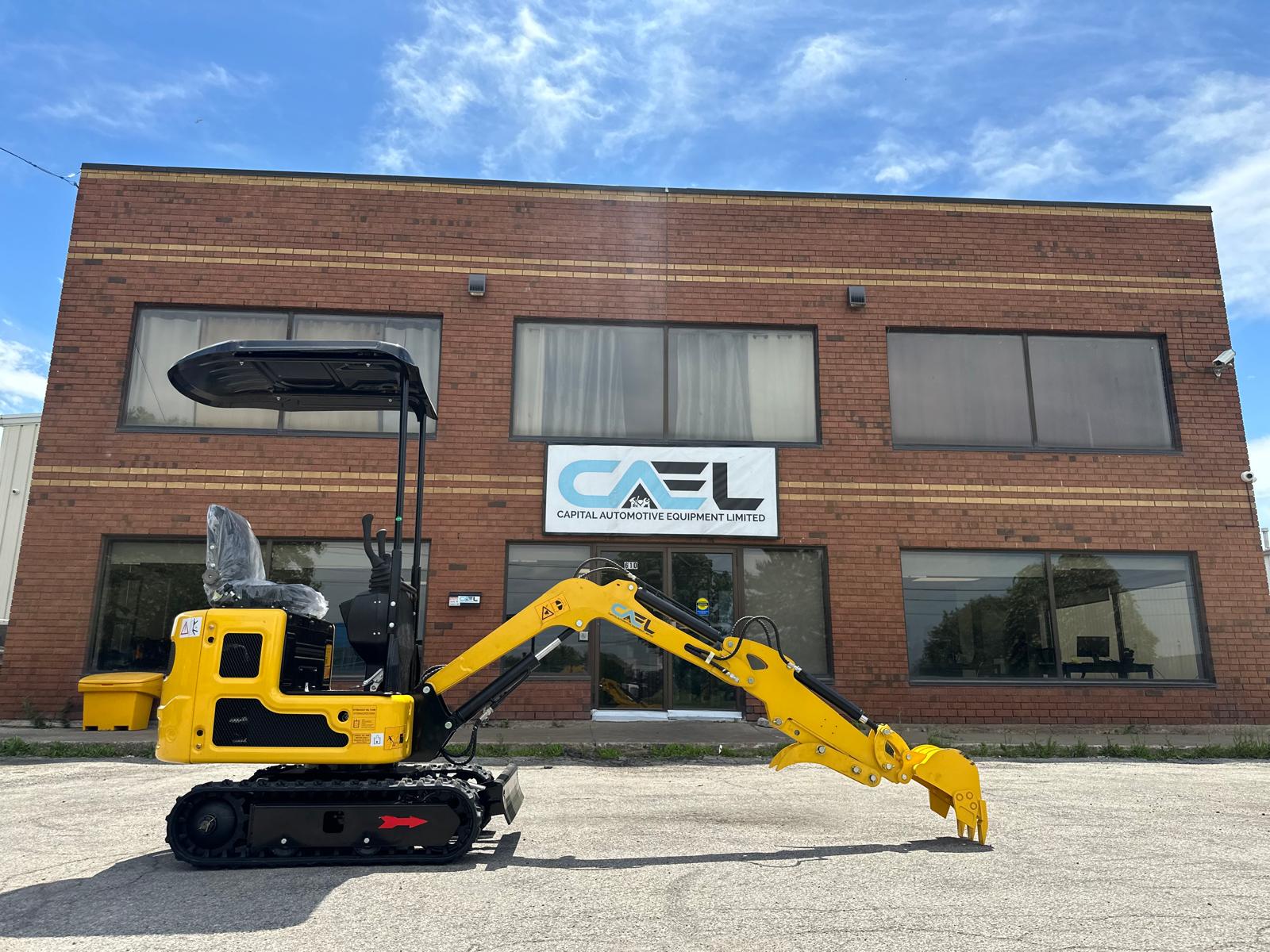

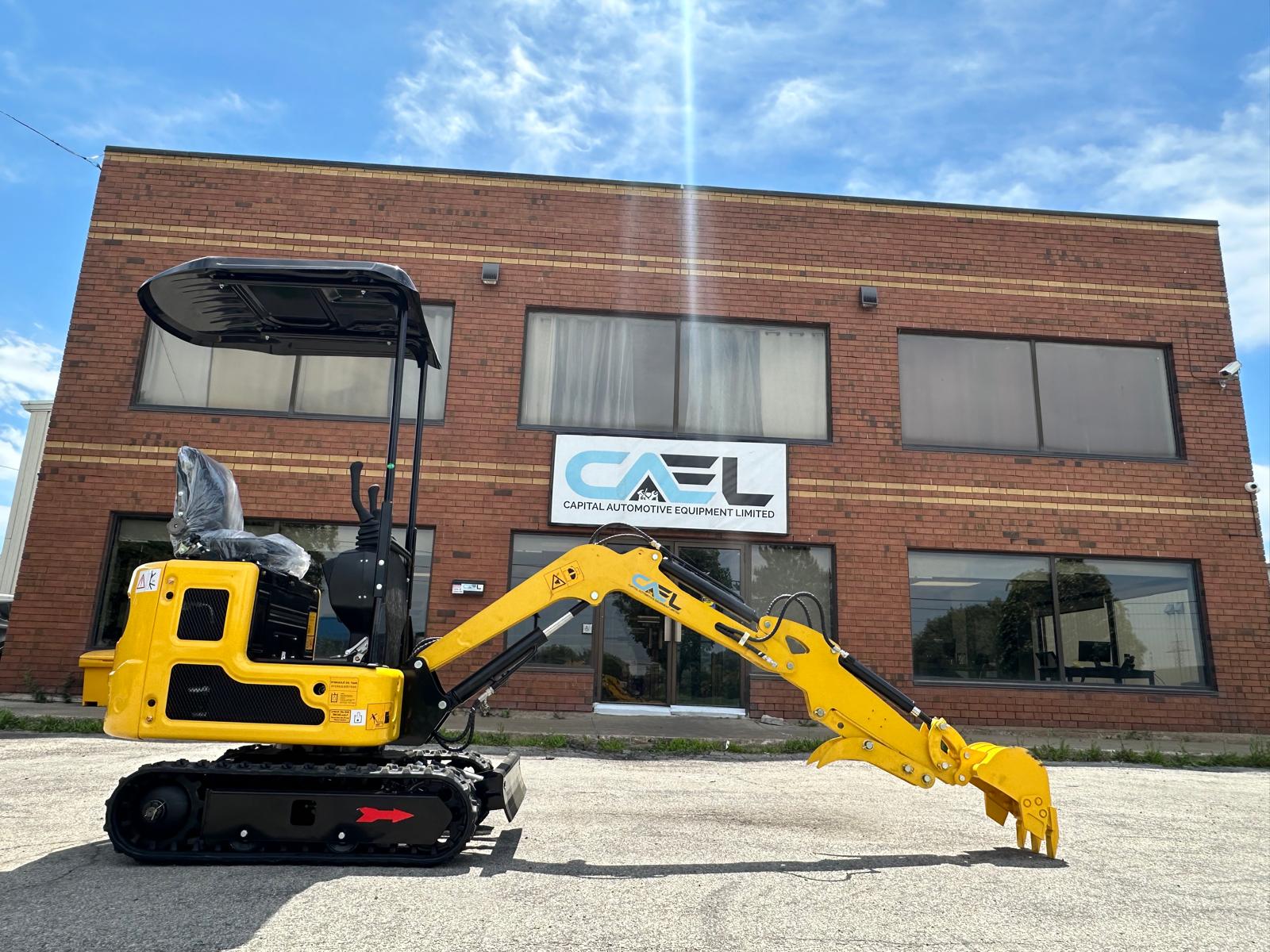

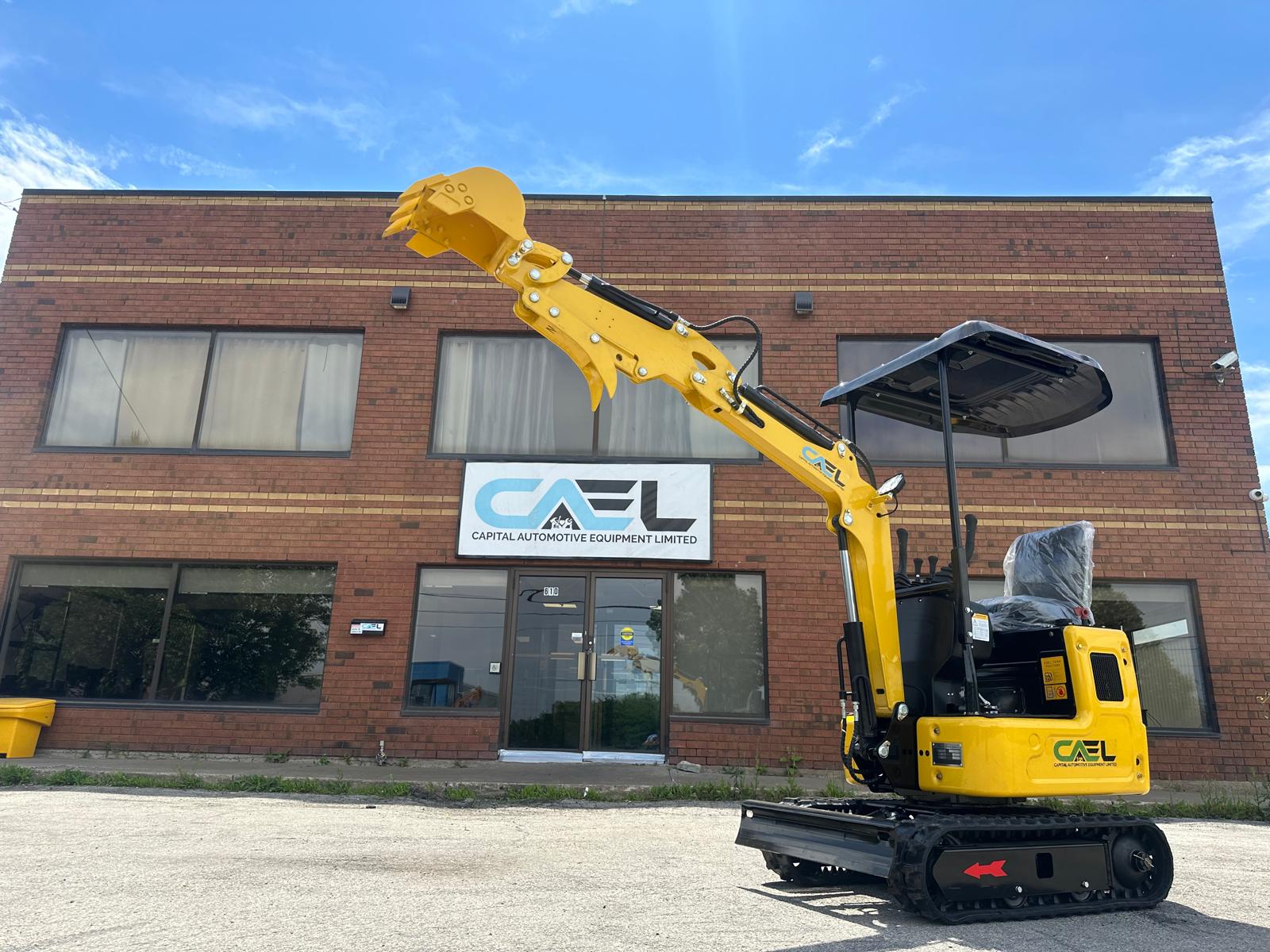

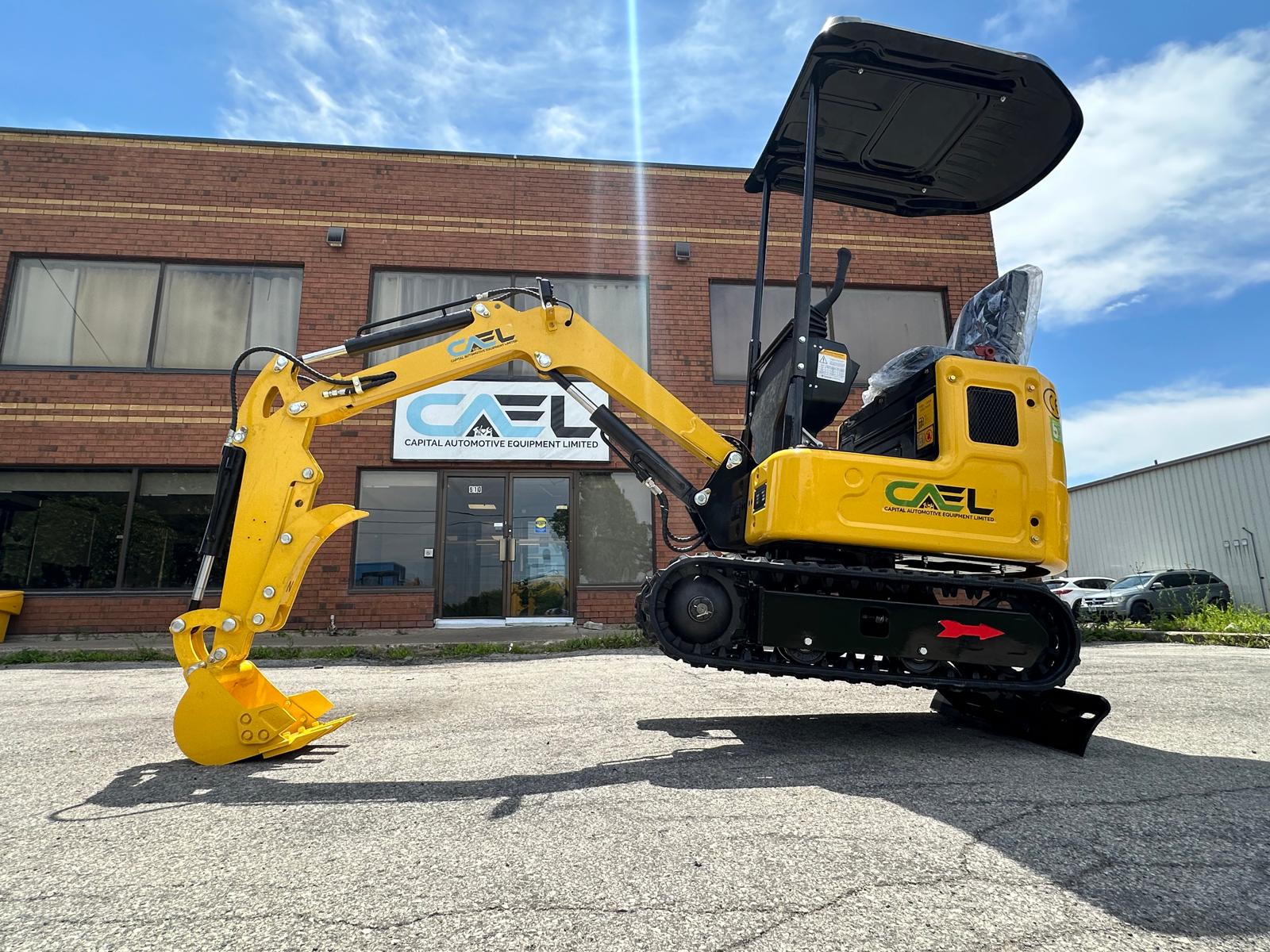

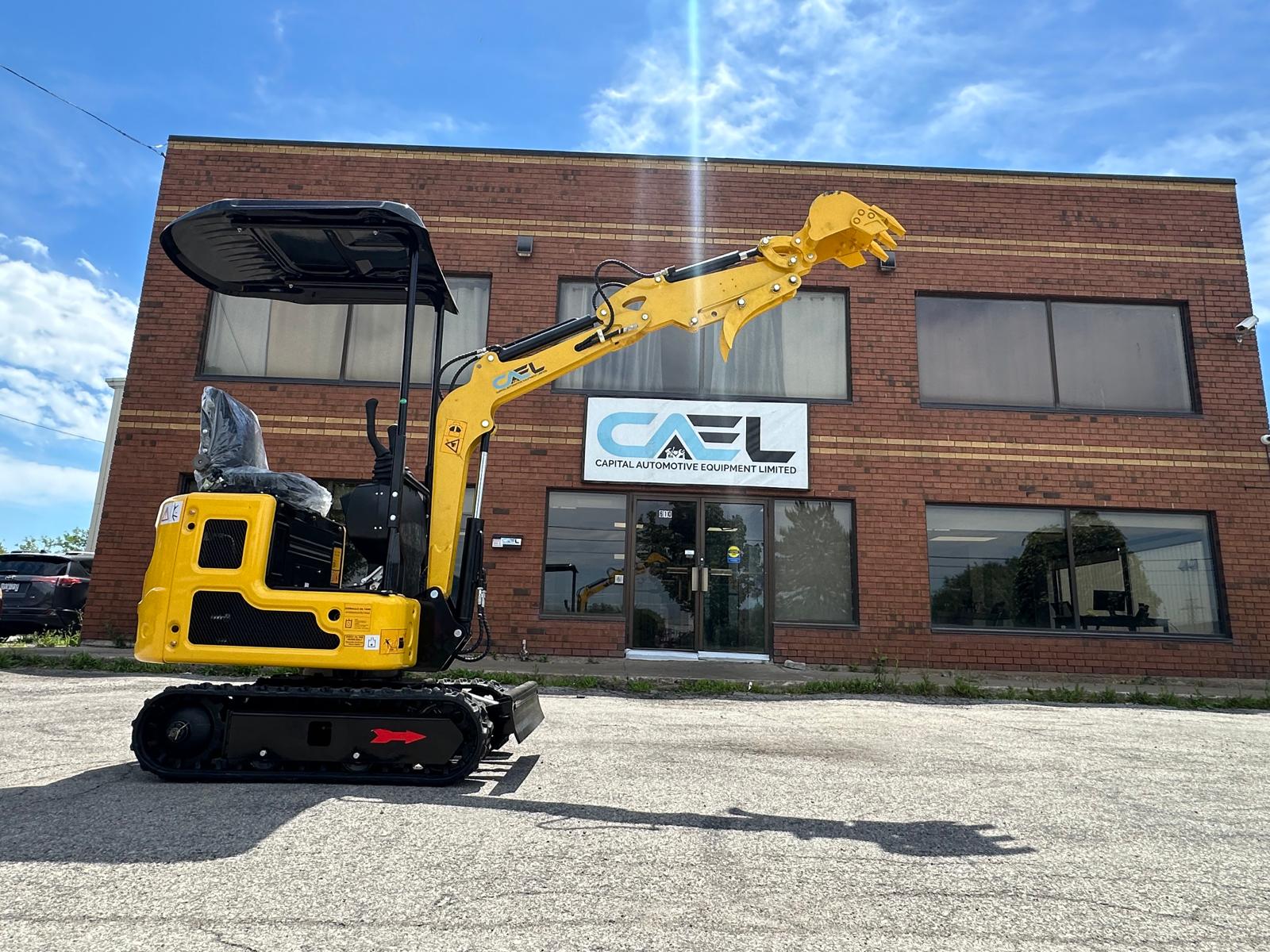

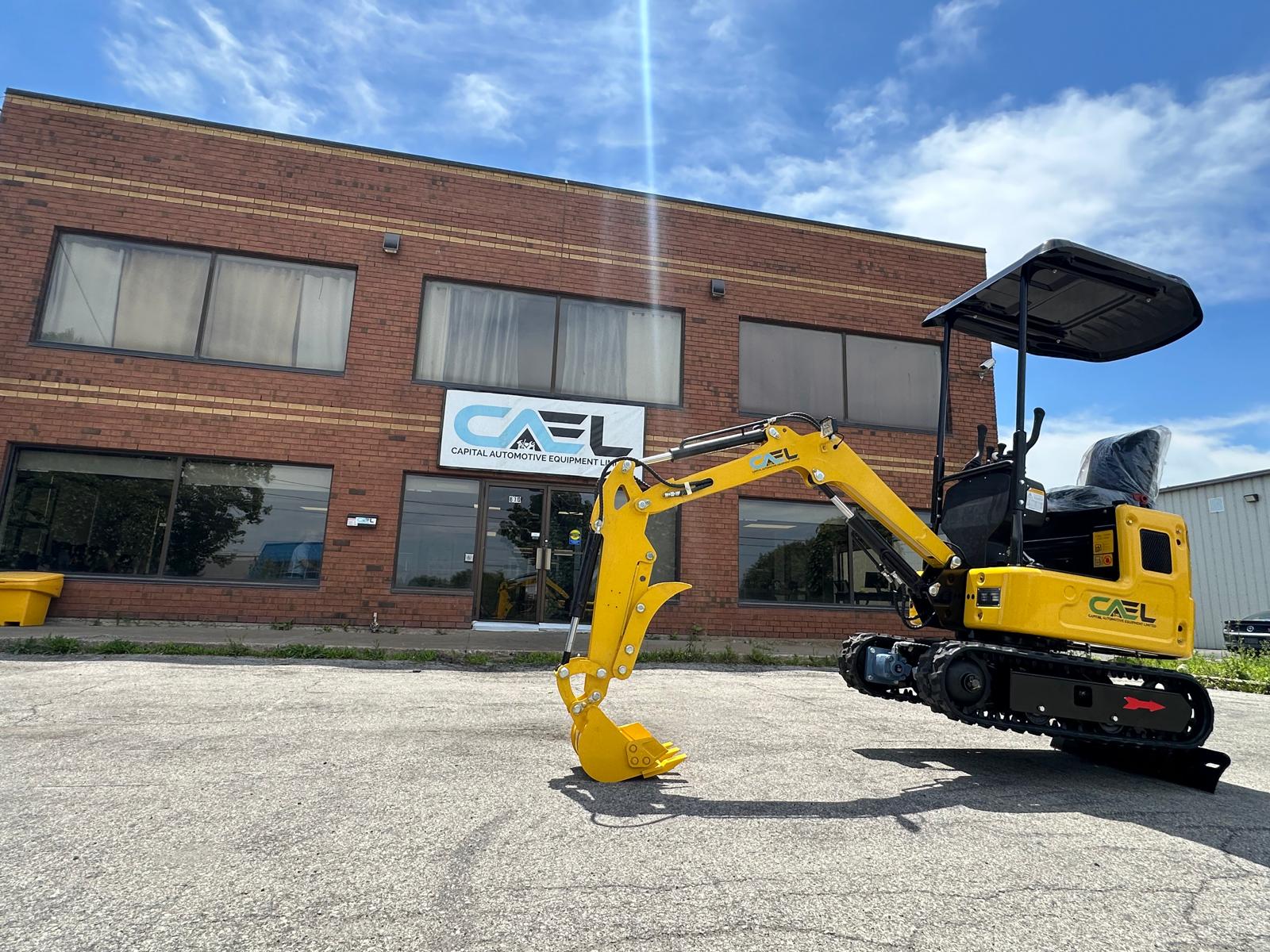

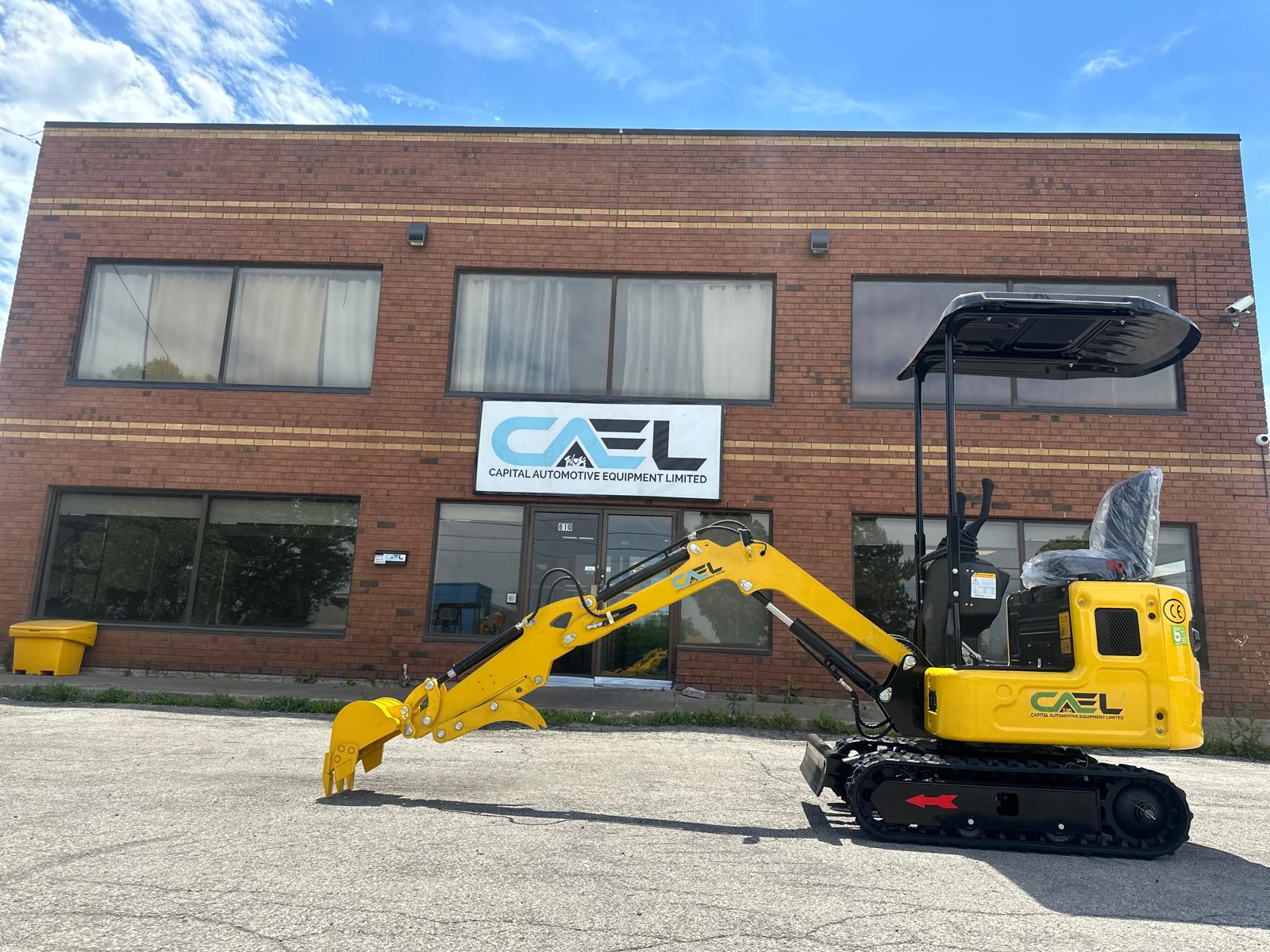

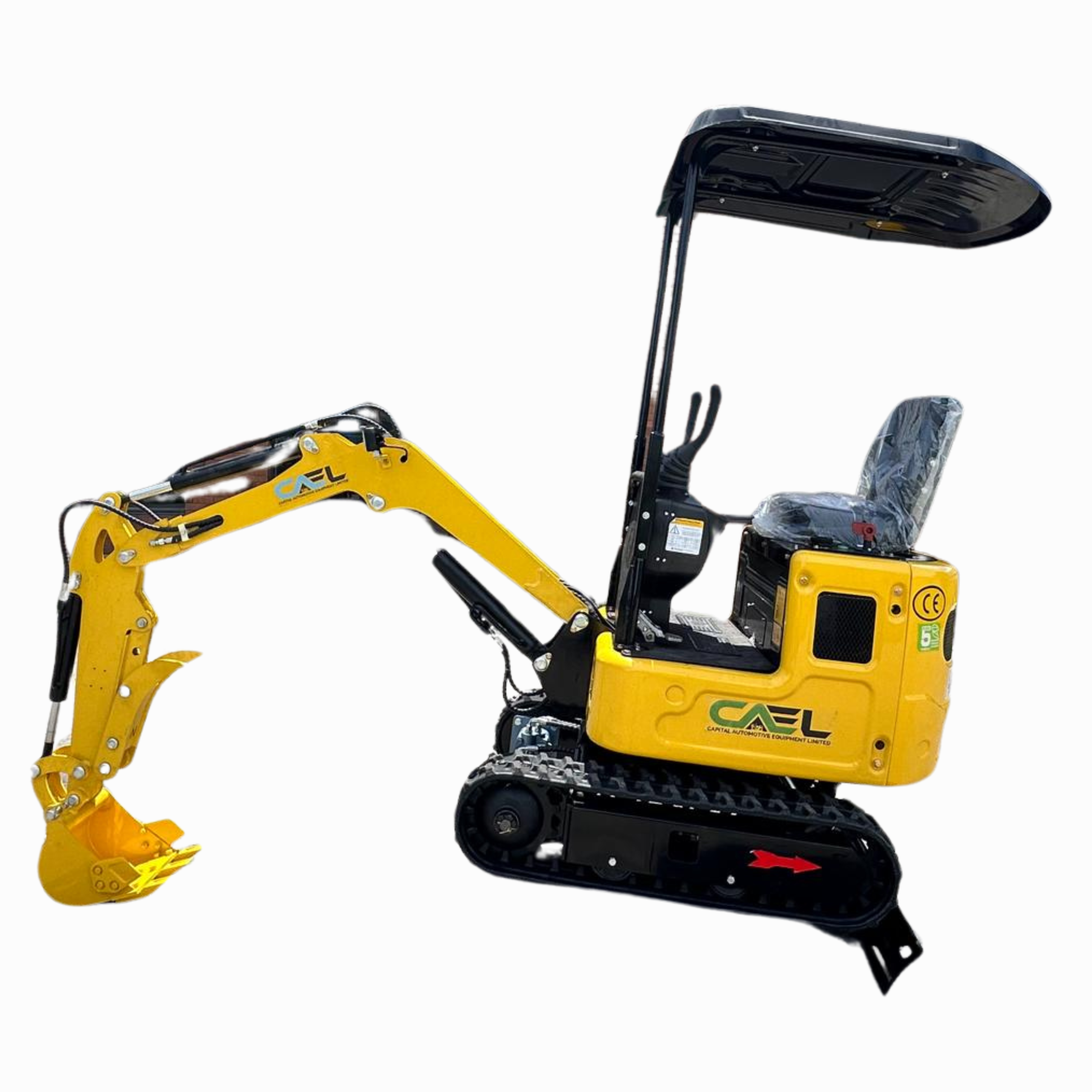

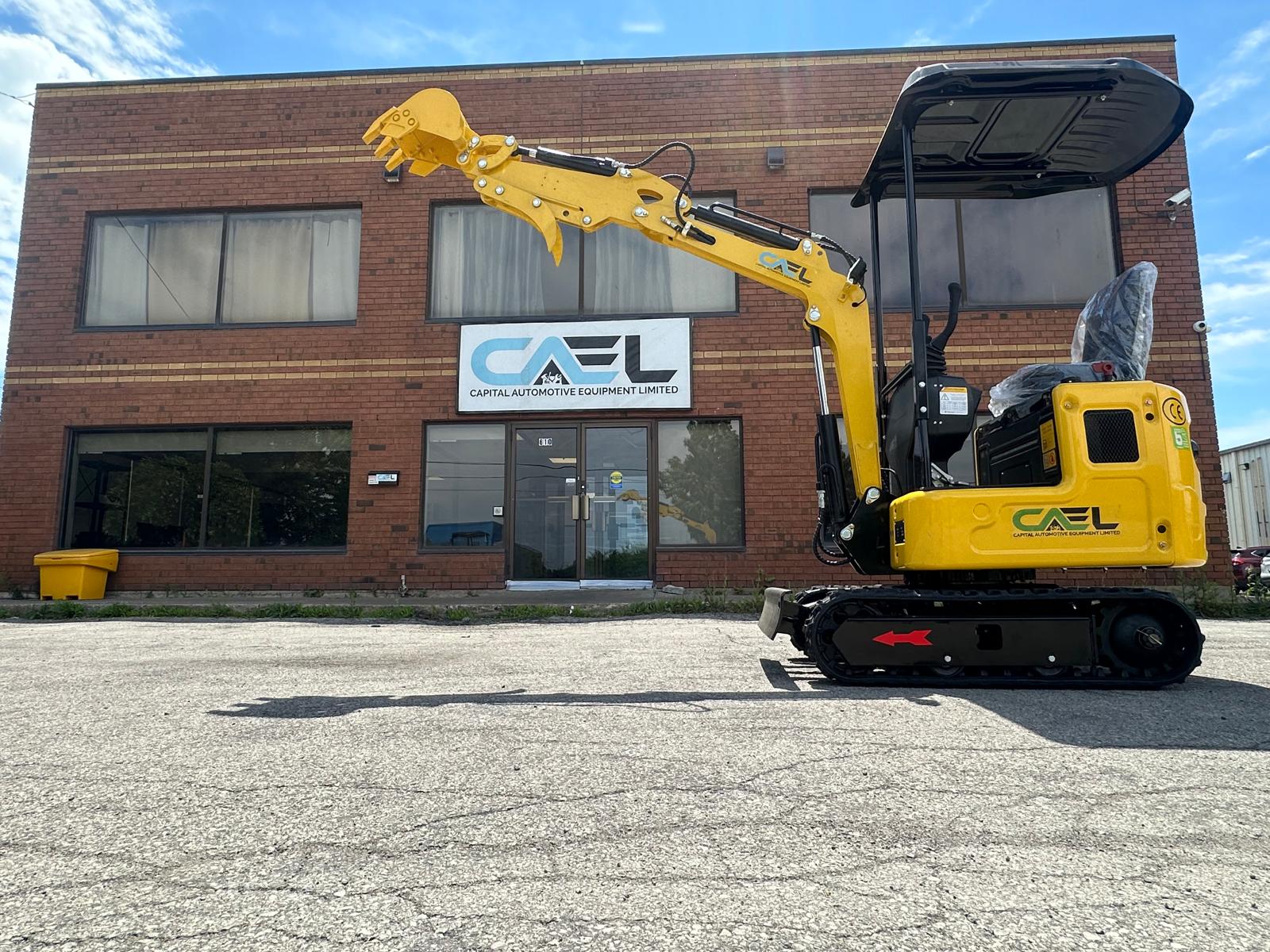

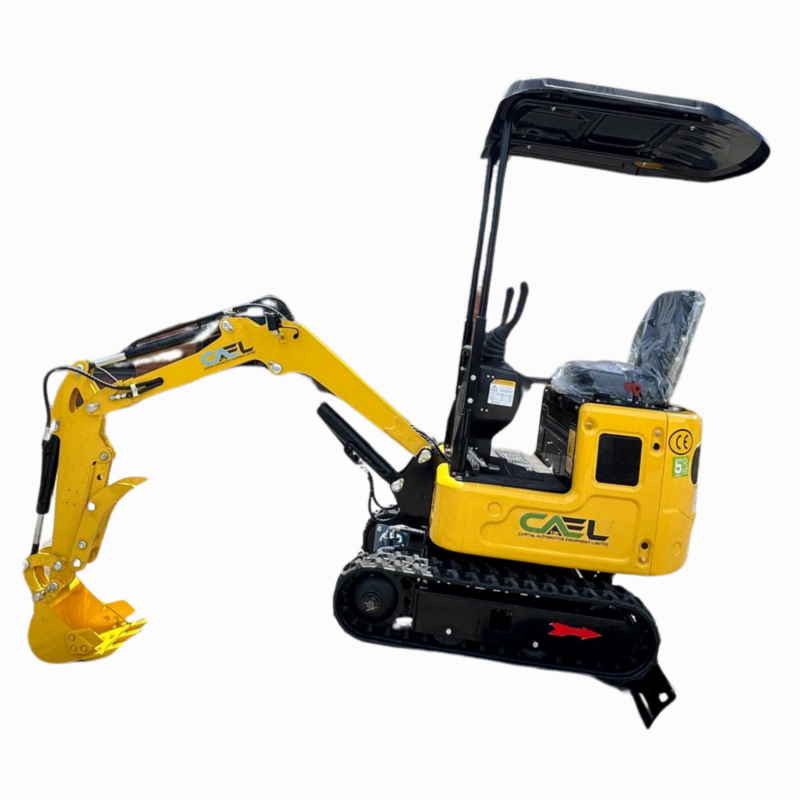

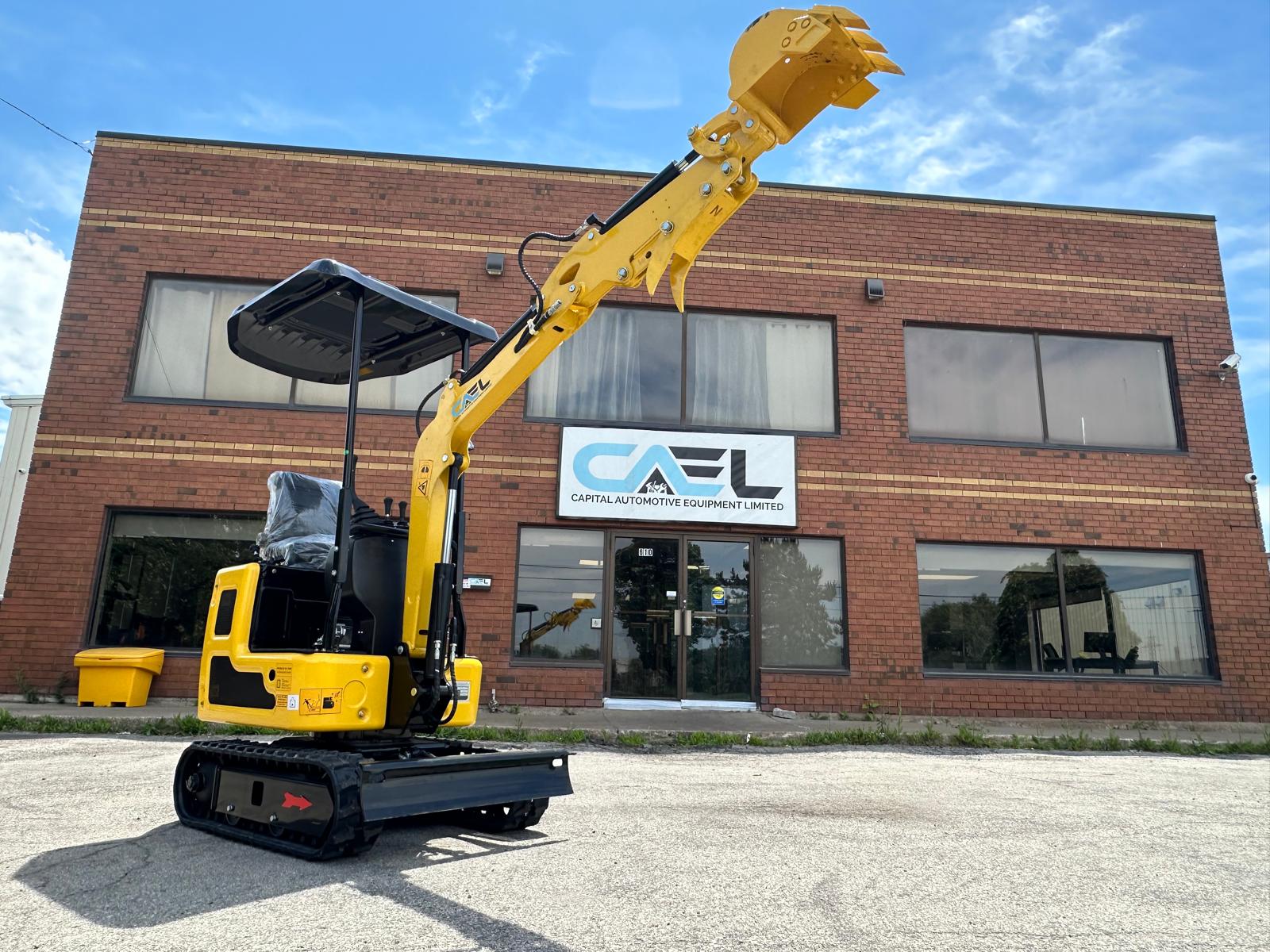

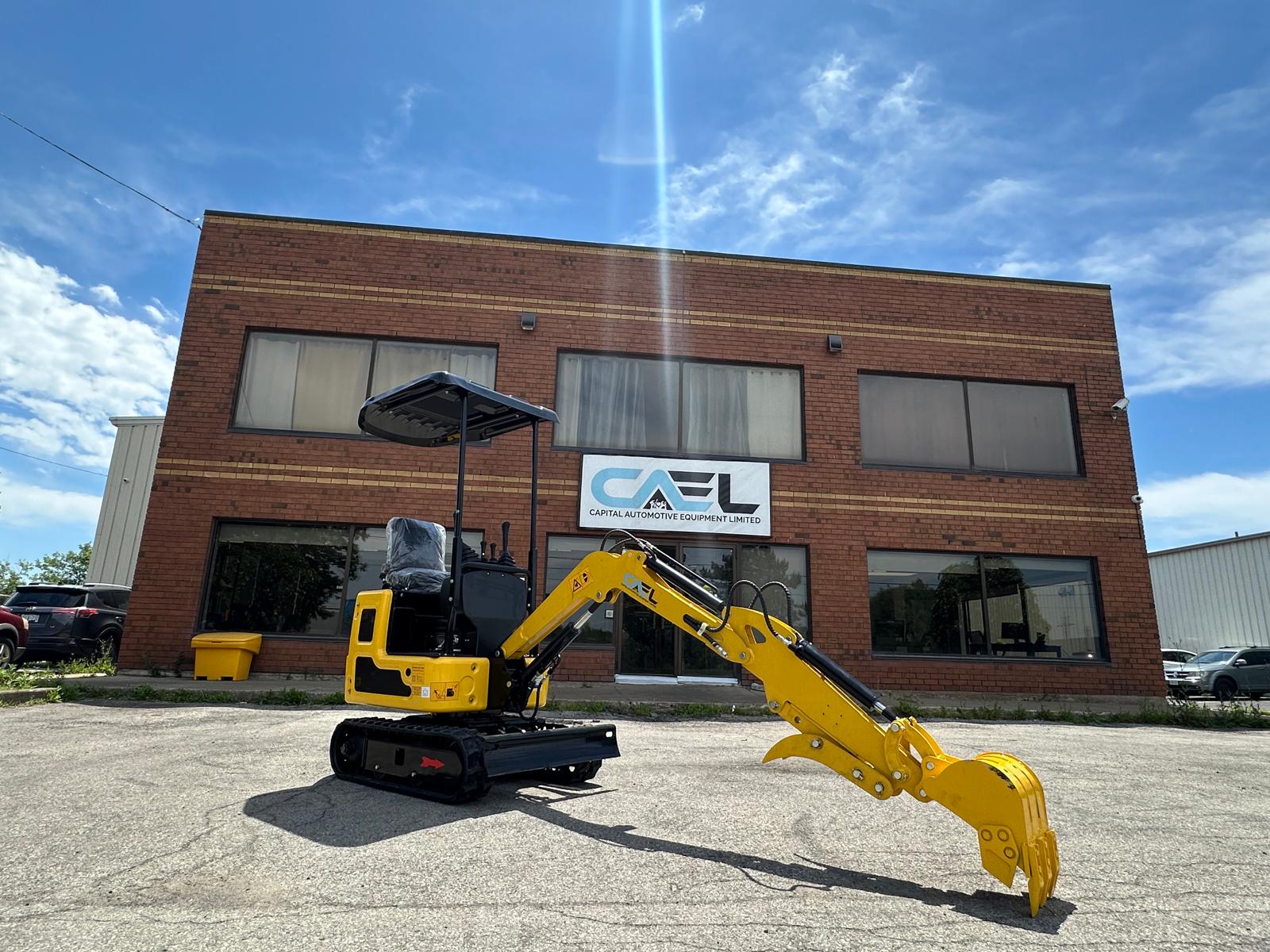

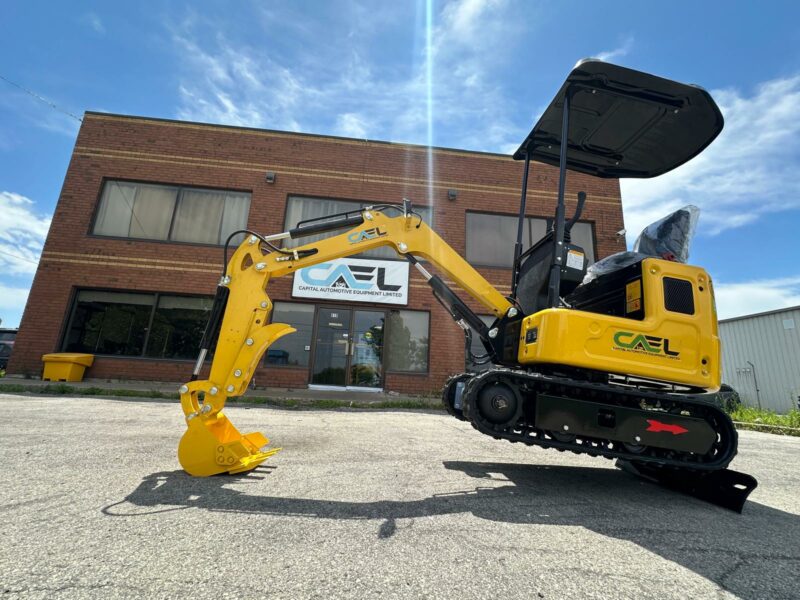

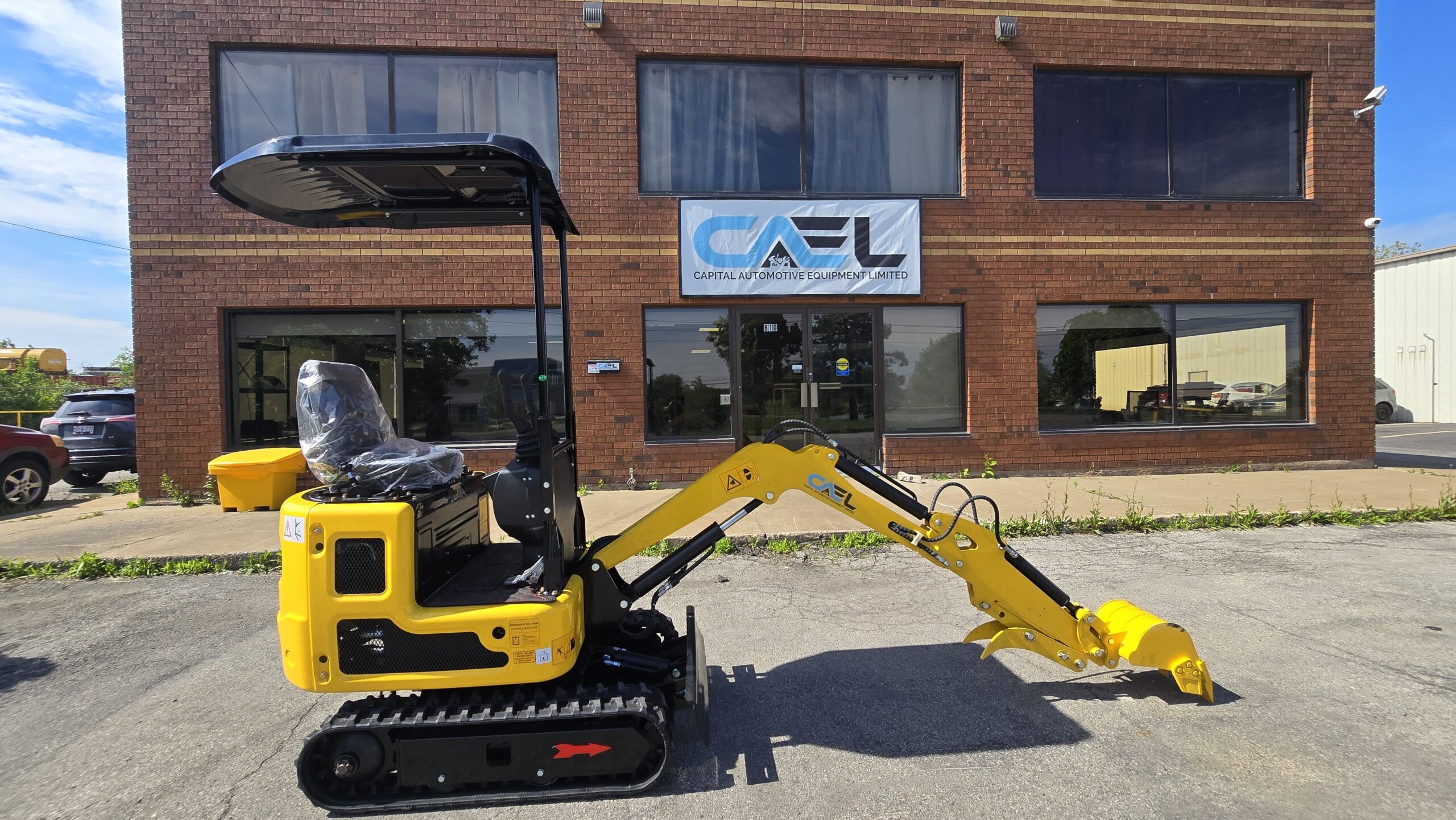

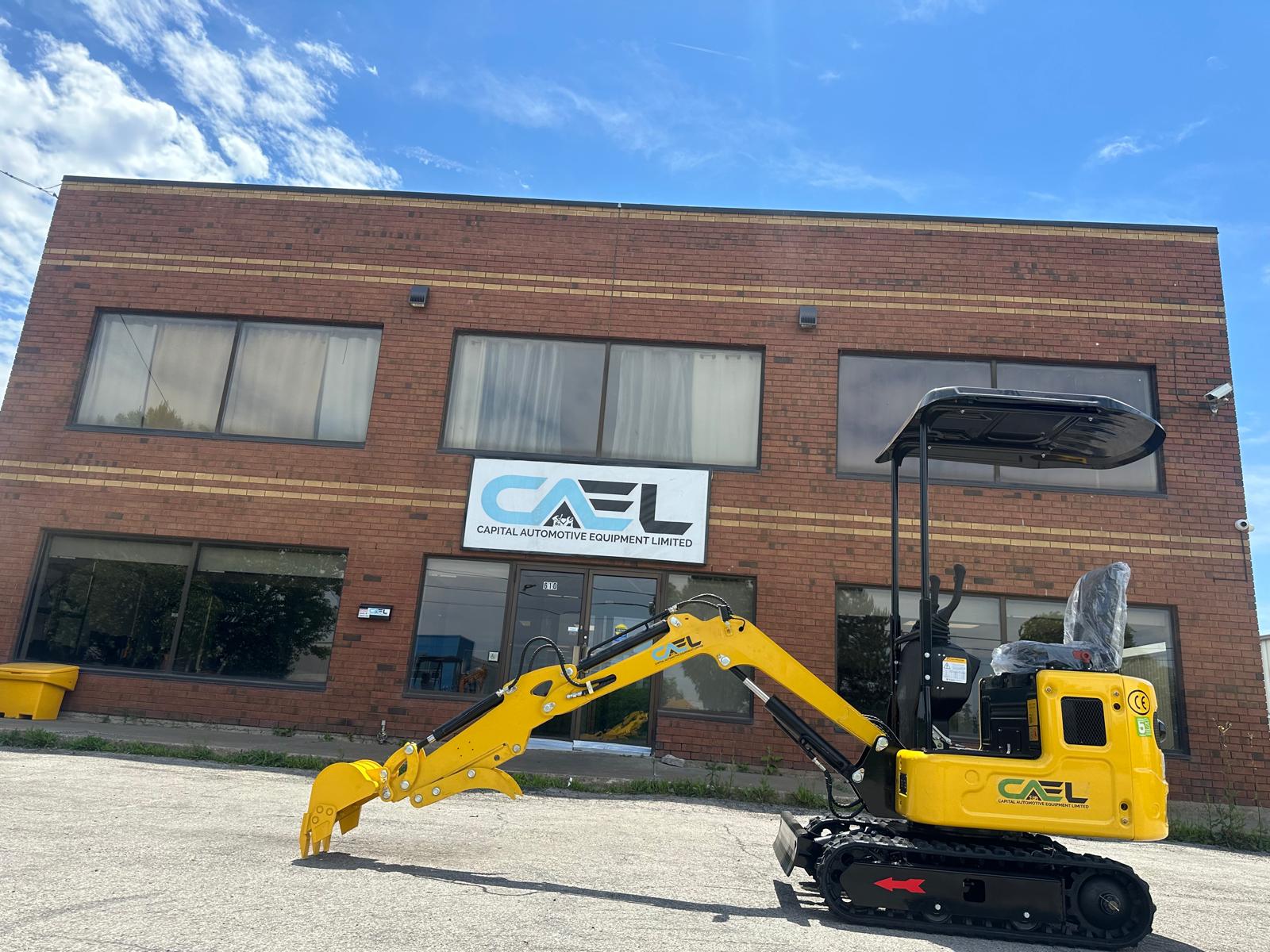

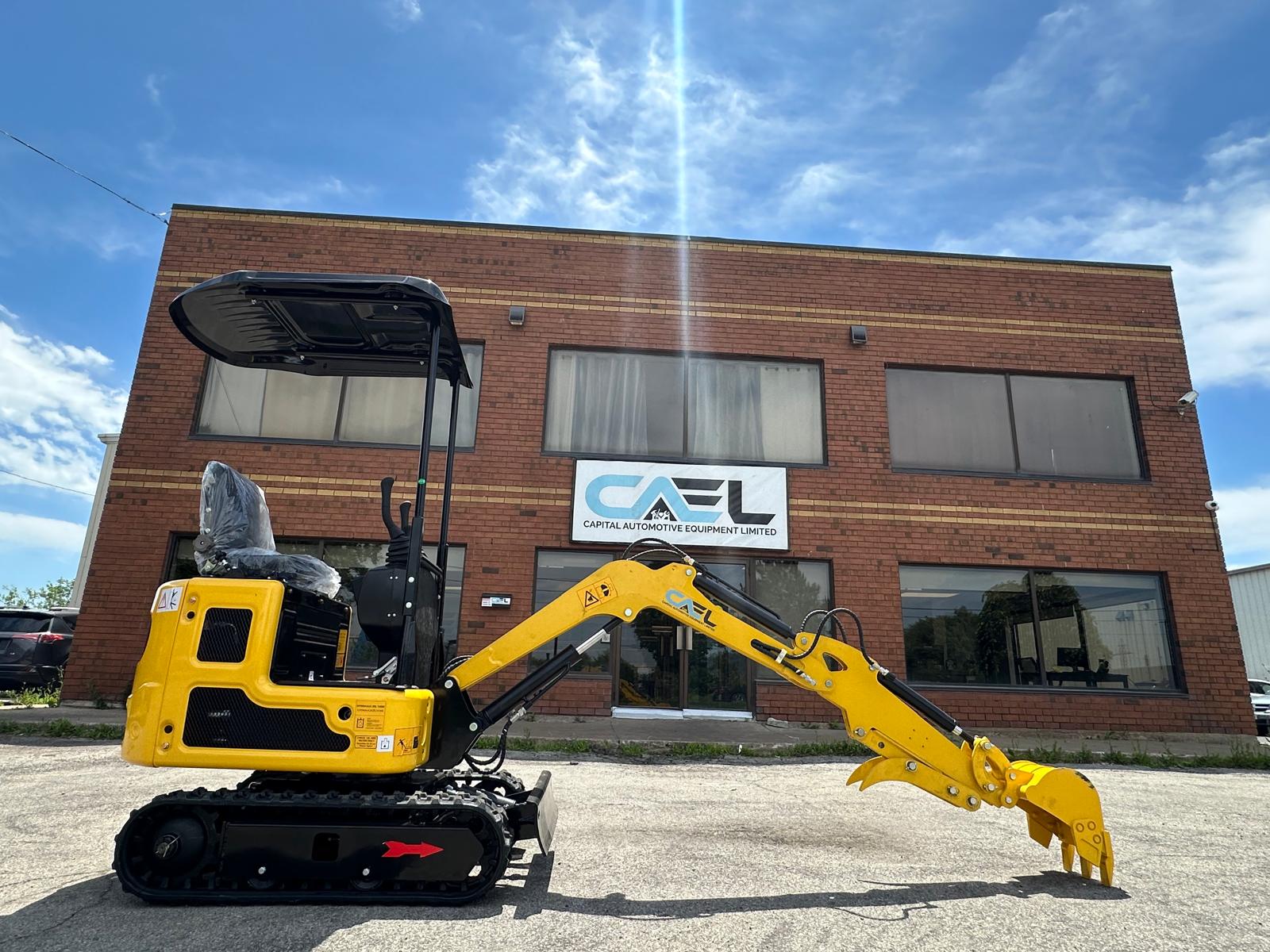

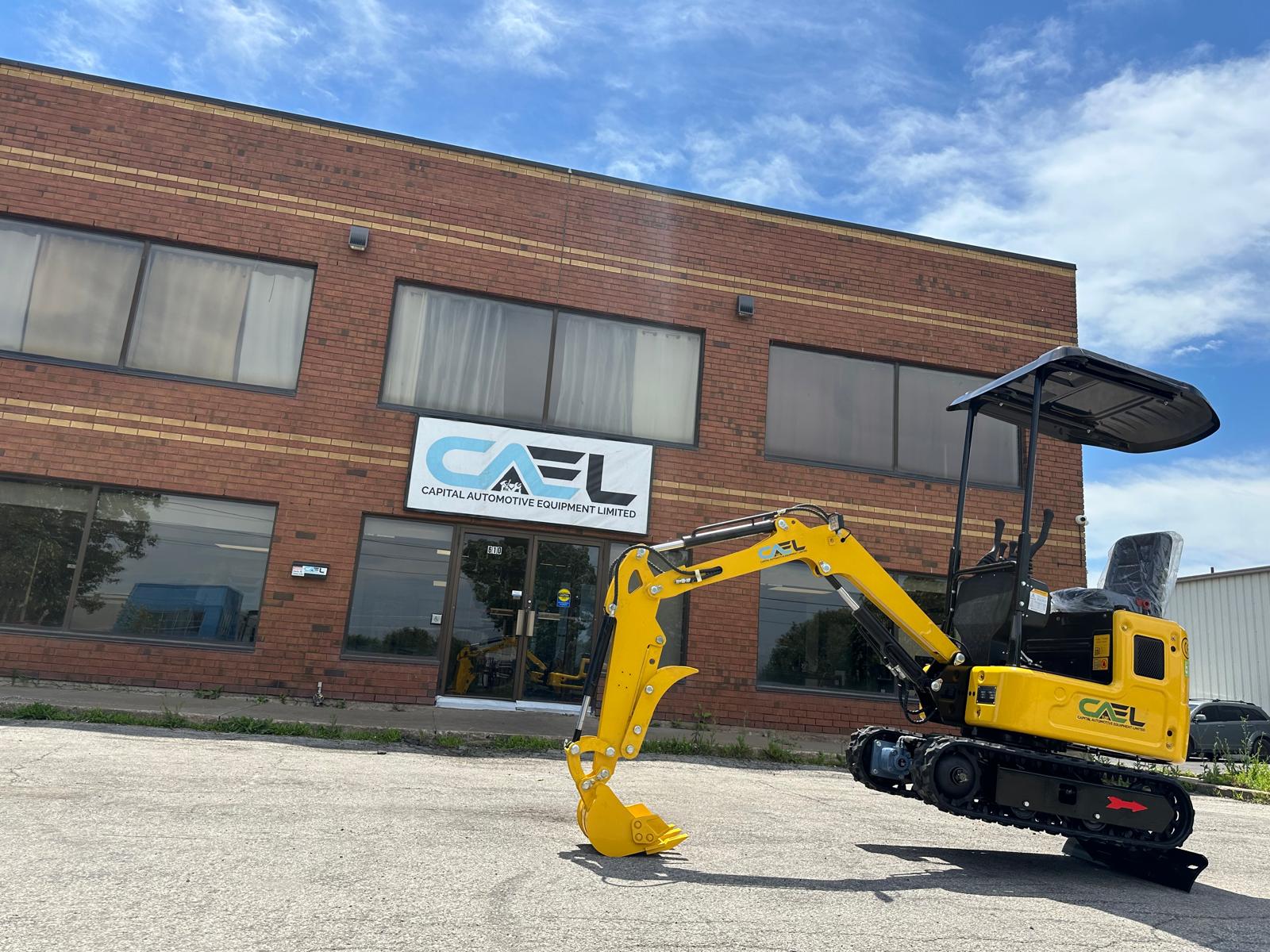

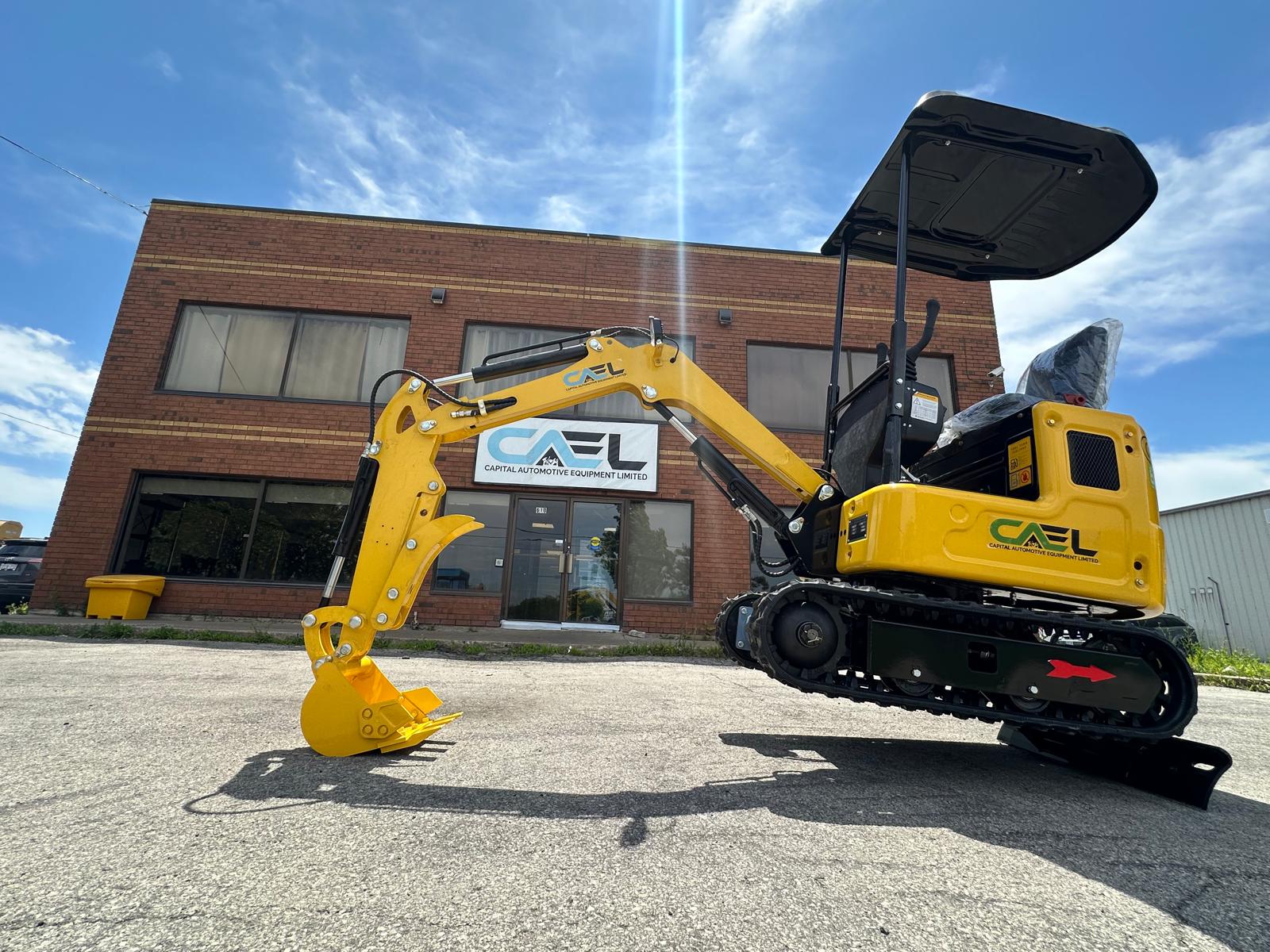

Mini Excavator 1T Briggs & Stratton (EX1BS-New)

  • $5,799.00

Category:

Machine Specifications

  • Weight: 1000 kg (2205 lbs)
  • Transport Dimensions:
    • Length: 2650 mm (104.3 inches)
    • Width: 1030 mm (40.5 inches)
    • Height: 1550 mm (61 inches)
  • Excavator Width: 930 mm (36.6 inches)
  • Minimum Ground Clearance: 400 mm (15.7 inches)
  • Track Dimensions:
    • Ground Length: 1100 mm (43.3 inches)
    • Length: 1350 mm (53 inches)
    • Width: 180 mm (7 inches)
    • Total Width: 1030 mm (40.5 inches)
  • Dozer Blade:
    • Width: 1030 mm (40.5 inches)
    • Height: 210 mm (8.2 inches)
    • Lift/Push: 155-172 mm (6-6.7 inches)

Performance Parameters

  • Engine: Briggs & Stratton (USA engine)
    • Power: 14 HP
    • Displacement: 0.794 liters
  • Bucket:
    • Width: 420 mm (16.5 inches)
    • Capacity: 0.014 m³
  • Boom Length: 1350 mm (53 inches)
  • Arm Length: 700 mm (27.5 inches)
  • Gradeability: 35%
  • Maximum Traction Force: 700 kg (1543 lbs)
  • Max Dig Radius: 2550 mm (100 inches)
  • Max Dig Depth: 1600 mm (65 inches)
  • Max Dig Height: 2500 mm (98.4 inches)
  • Max Unload Height: 1750 mm (69 inches)

Fuel and Hydraulic Systems

  • Theoretical Oil Consumption: 1.3-1.5 liters/hour
  • Fuel Type: Gasoline
  • Fuel Tank Capacity: 5.5 liters
  • Hydraulic Oil Tank Capacity: 12.5 liters
  • Main Pump Type/Model: Single pump, Tianjin walking/Shen 306
    • Maximum Flow: 21.6 liters/min
  • Multi-way Valve: 8-way manual multi-way valve
  • Rated Set Pressure: Tengfei/Shengjie 18 MPa
  • Maximum Set Pressure: 20 MPa

Hydraulic Motors

  • Travel Hydraulic Motor Type: BM6-315, Paiyi/Zhenjiang Dali
  • Displacement: 315 cc
  • Slewing Hydraulic Motor Type: BM2-315

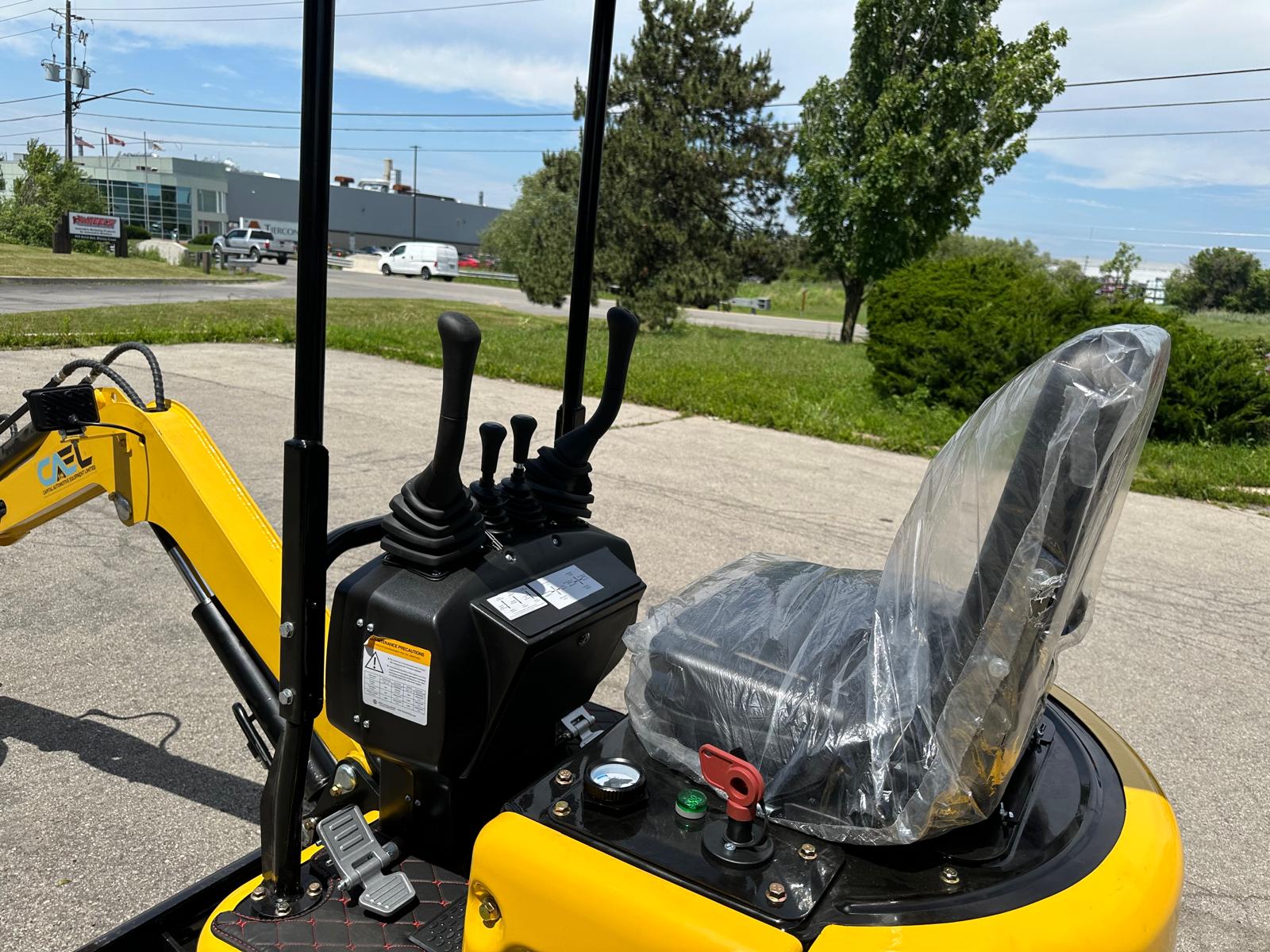

Cab and Comfort

  • Ceiling: Available (〇)
  • Quick Change: Available (●)
  • Air Conditioning: Mechanical tensioning
  • Fuel Form: 92# gasoline

Shipping and Packaging

  • Wooden Box Size:
    • Normal: 284109162 cm
    • With Cab: 130105172 cm
  • Number of 40 High Cabinets for Complete Units: 13
  • Number of 40 High Cabinets for Unassembled Units: 26

Additional Equipment Options

  • Rake: Available (〇)
  • Wood Grabber: Available (〇)
  • Ripper: Available (〇)
  • Breaker: Available (〇)
  • Counterweight: Available (〇)
  • Tracks: Rubber (bandwidthpitchnumber 1807237), Steel available
