***Rated lifting load***
Row 1 Load centerline spacing: 1965 mm/ 77.3 in
1st–4th layer” 45000KG/ 99000 lbs
Row 2 Load centerline spacing: 3815 mm/ 150 in
1st–5th layer: 31,000 KG/ 68343 LBS
Row 3 Load centerline spacing: 6315 mm/ 248.6 in
1st–3rd layer: 15000 kg/ 33069 LBS
Max. lifting height 15100 mm/ 594.4 in
Boom angle(°): 0-60
Min. ground clearance: 355 mm/ 14 in
Min. turning radius: 8100 mm/ 319 in
Tread(front wheel/rear wheel)(mm) :3048/2750 (120/108 in)
Wheelbase: 6000 mm/ 236 in
Dimension (length×width×height)(mm): 11259 X 4142 X 4625 (443 x 163 x 182 in)
Dead weight: 72T
Engine
Model: CUMMINS X12EU5
Rated powerKW/rpm: 250/2100
TorqueNm/rpm: 1695/1400
Discharge Standard: T4
Output (L): 10.8
Transmission Gear Box
Model: CLARK 14.5HR36432
Shift: Auto/manual shift
Gears: 4 forward and 4 backward gears
Driving Axle
Model: D102PL341
Manufacturer: Kessler
Position: Front axle
Service brake: Wet disc brake
Parking brake: Spring hydraulic release disc brake

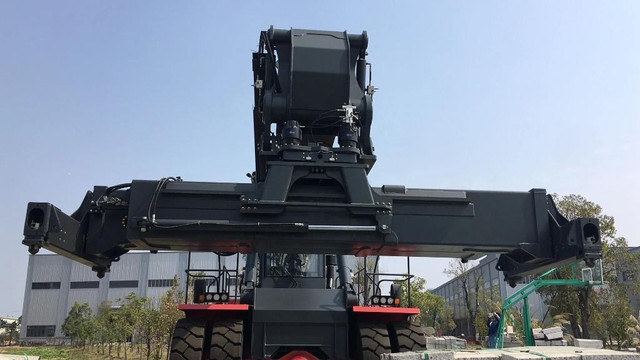

Spreader
Model: CAEL ZDJ450
Rotary angle (°):+105°/-195°
Side shift distance : ±800mm/ 31.4 in
Max load bearing (kg): 45000/ 99208 LBS
Applicable scope: 20′-40’International Standard Containers
Characteristic Parameters
Max. hoisting speed(no load/full load): 420/250 mm/s (1’5”/10”/s)
Max. falling speed(no load/full load): 360/320 mm/s (1’2”/1’2”/s)
Max. traveling speed(no load/full load): 25/21 km/h (15.3/13mph)
Gradeability(no load/full load): 39/32%
Max. pulling force(KN): 330KN
Hydraulic System
Oil pump: Double variable plunger pump
Work pressure (bar): 260 bar
Cab
Noise (dB): ≤72dB
Temperature ():15-25
