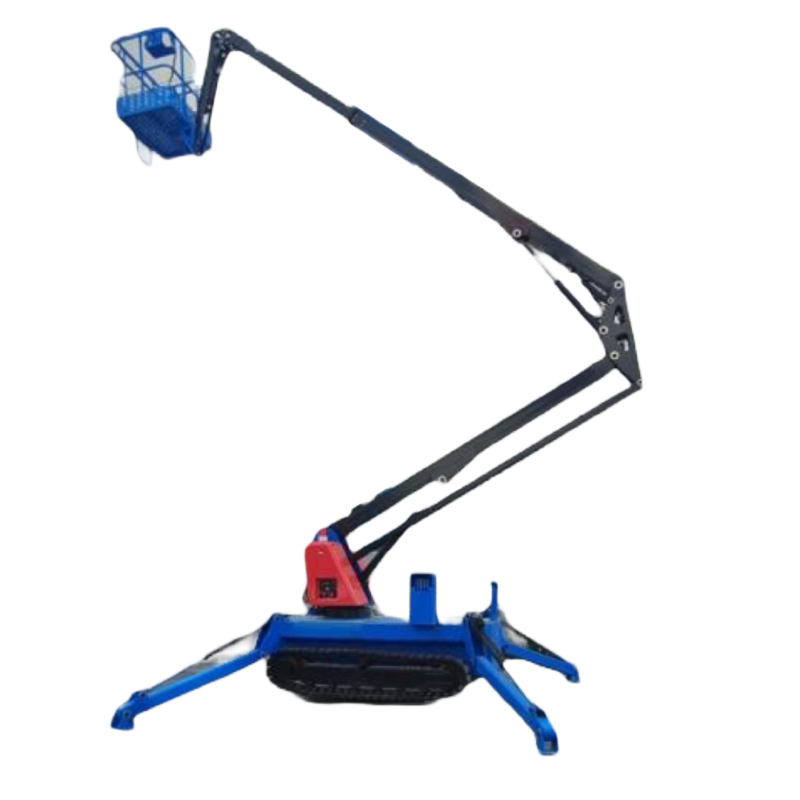

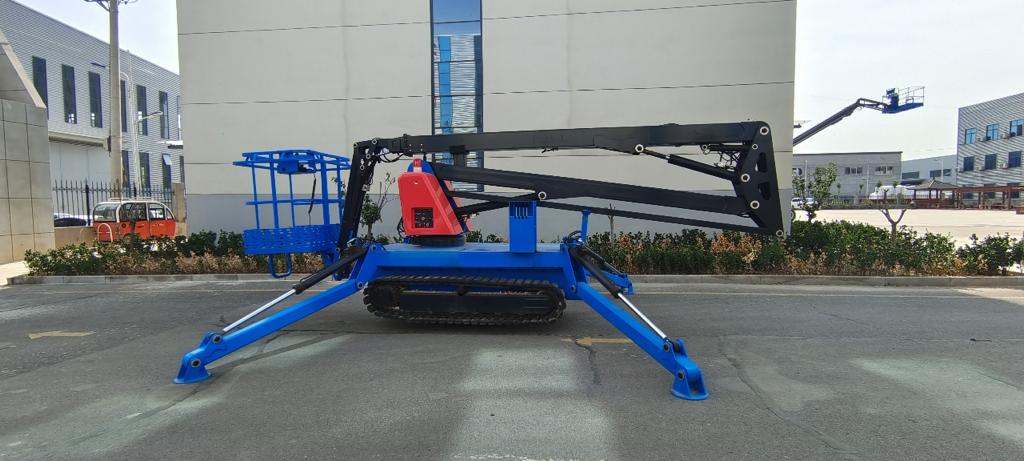

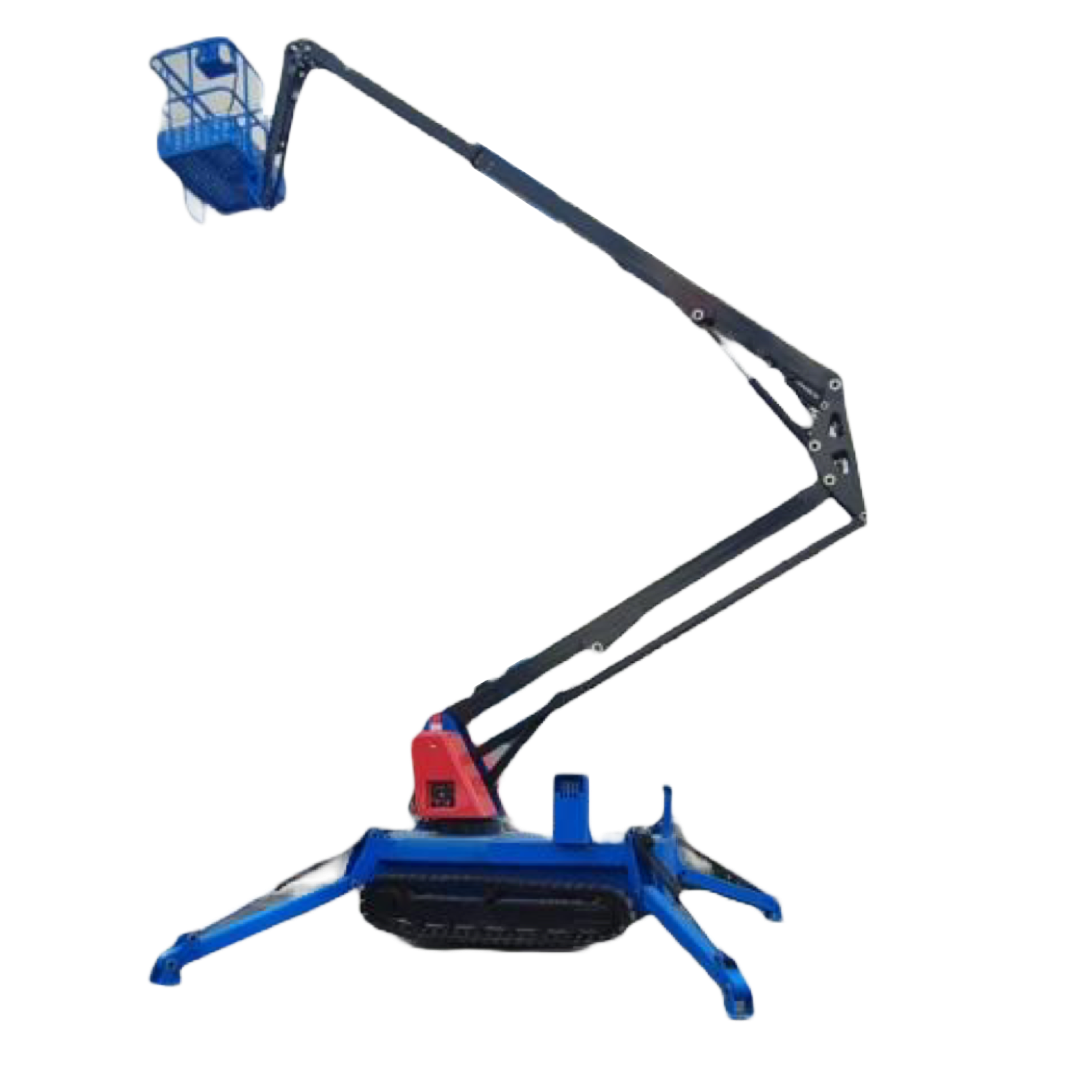

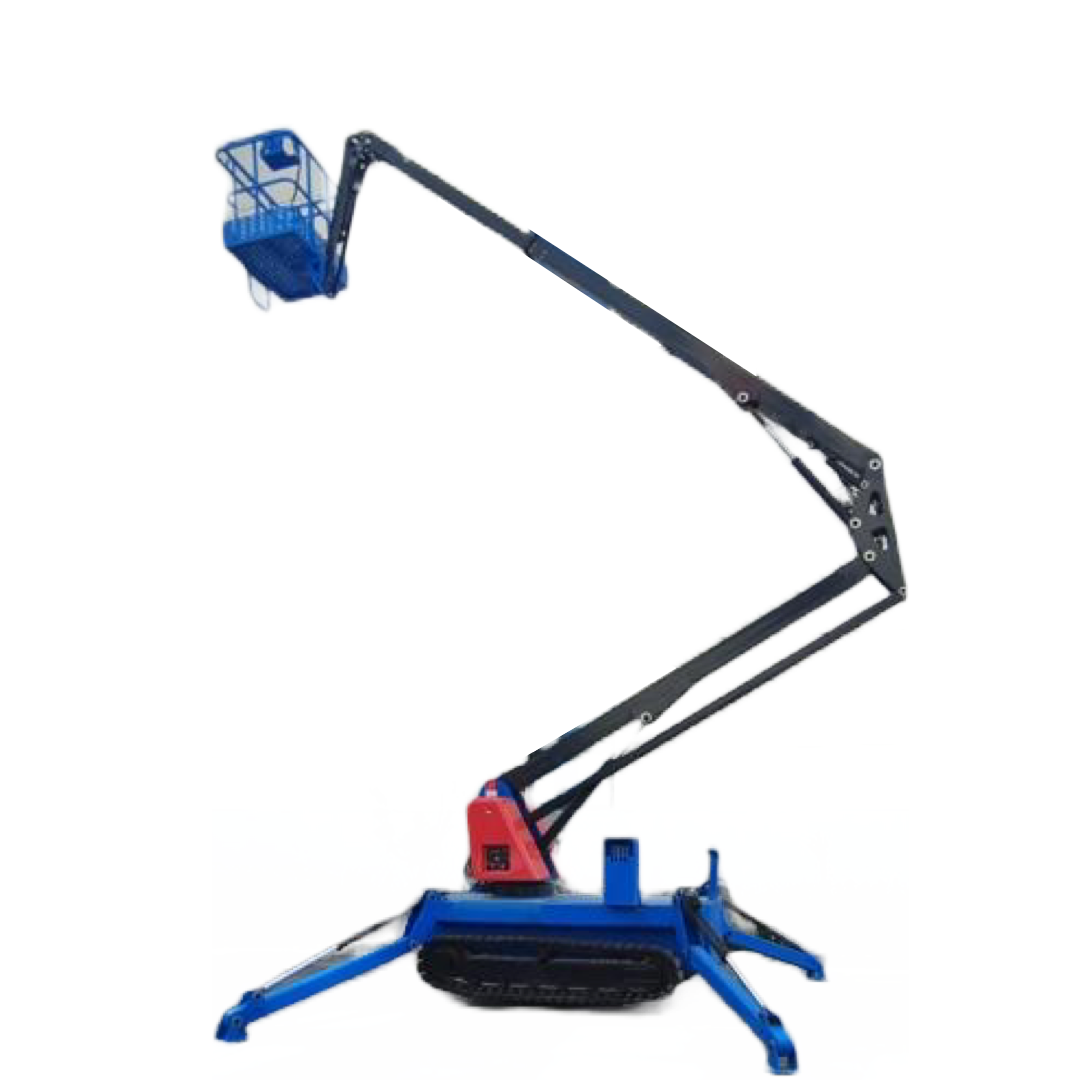

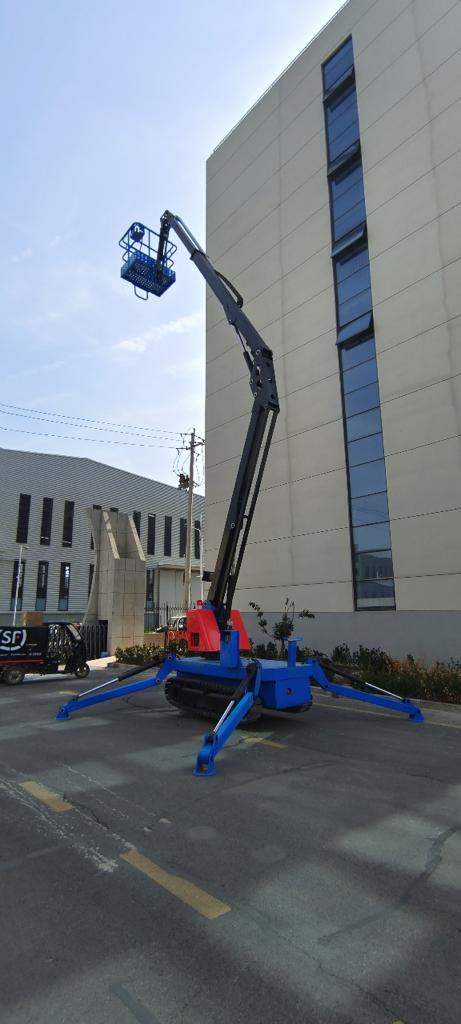

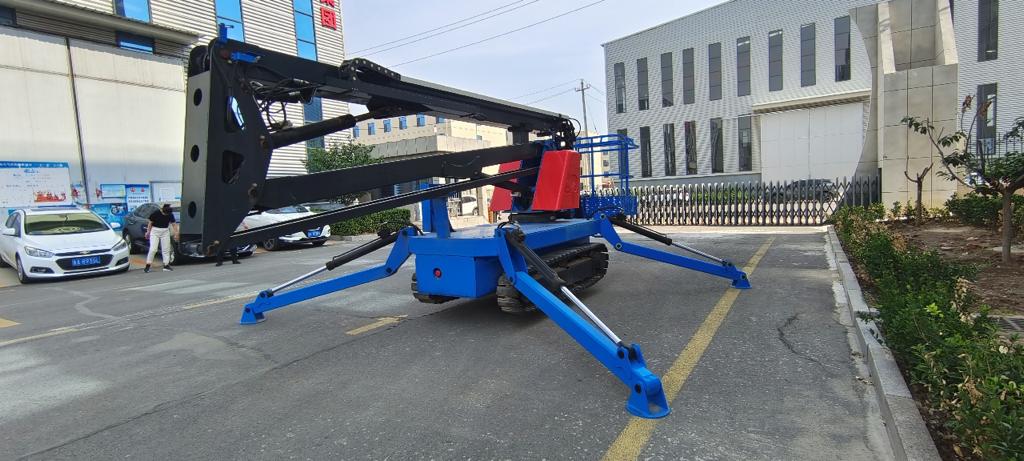

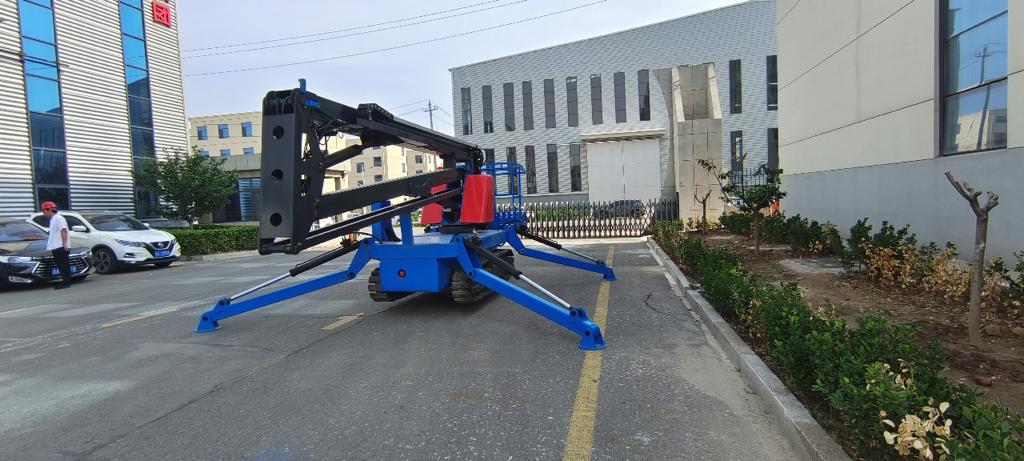

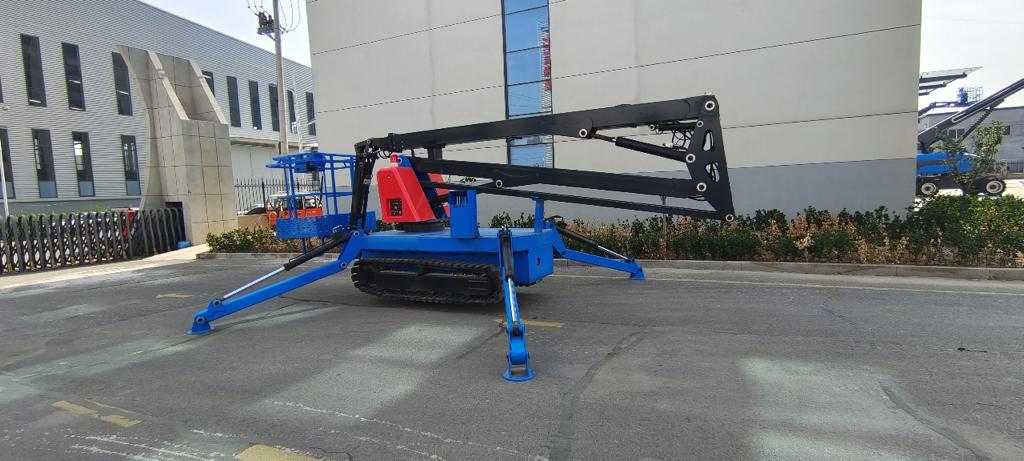

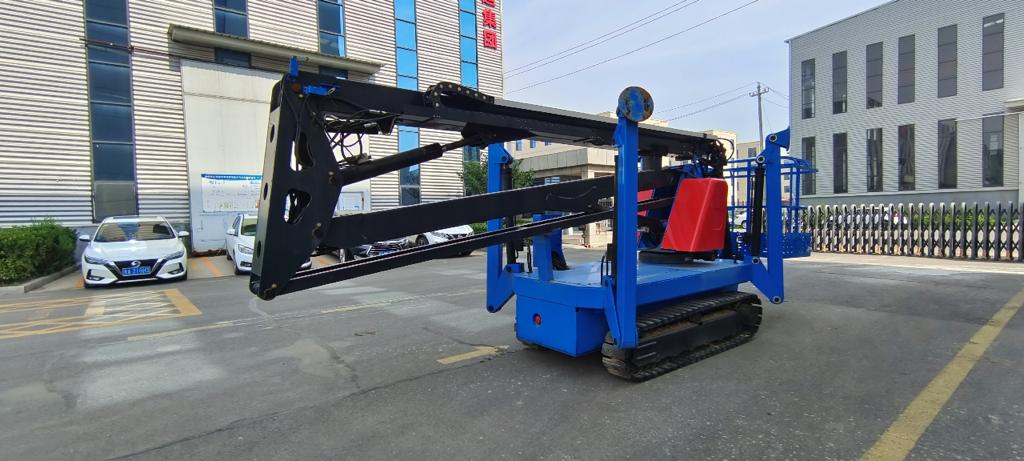

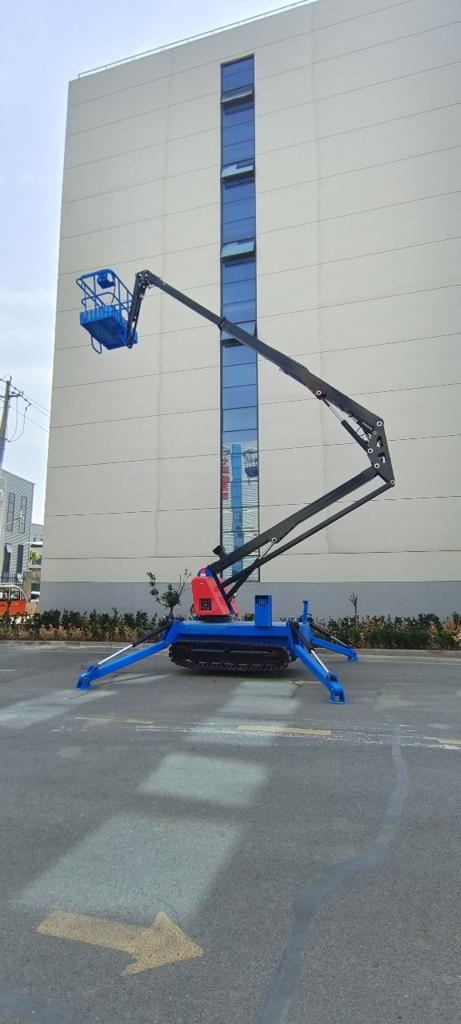

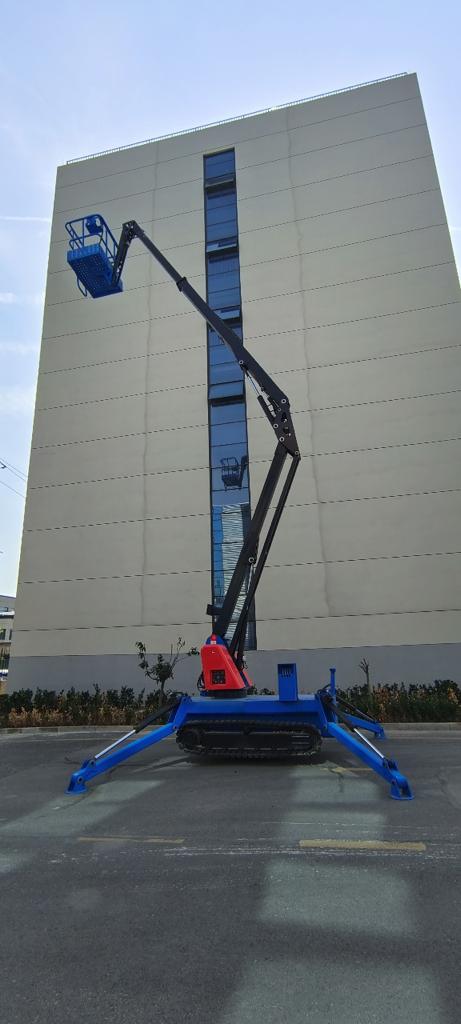

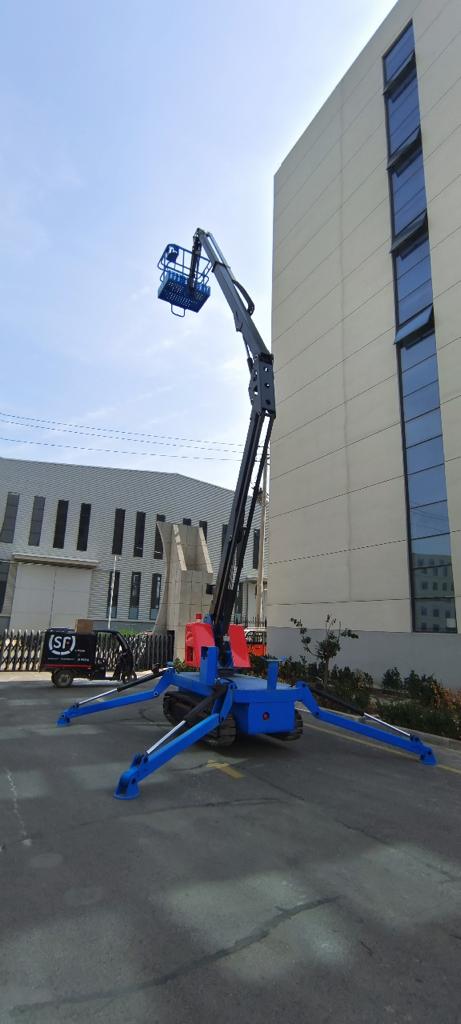

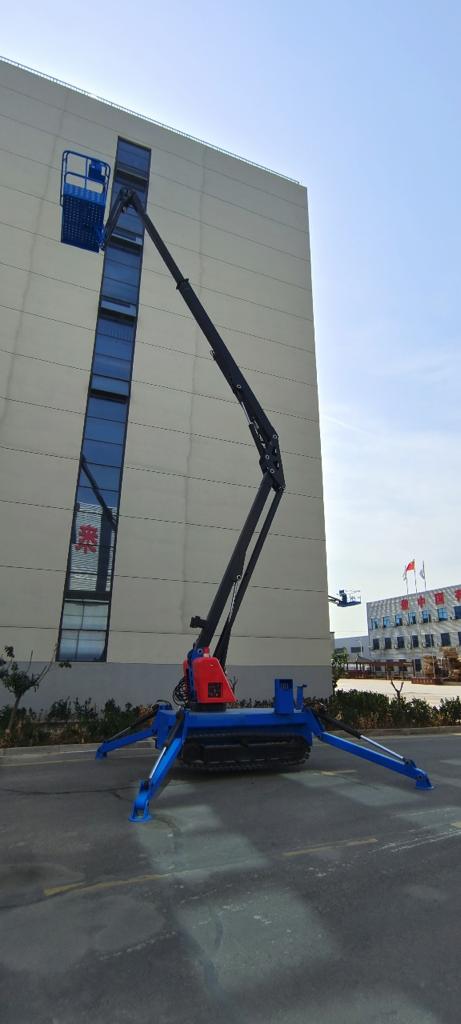

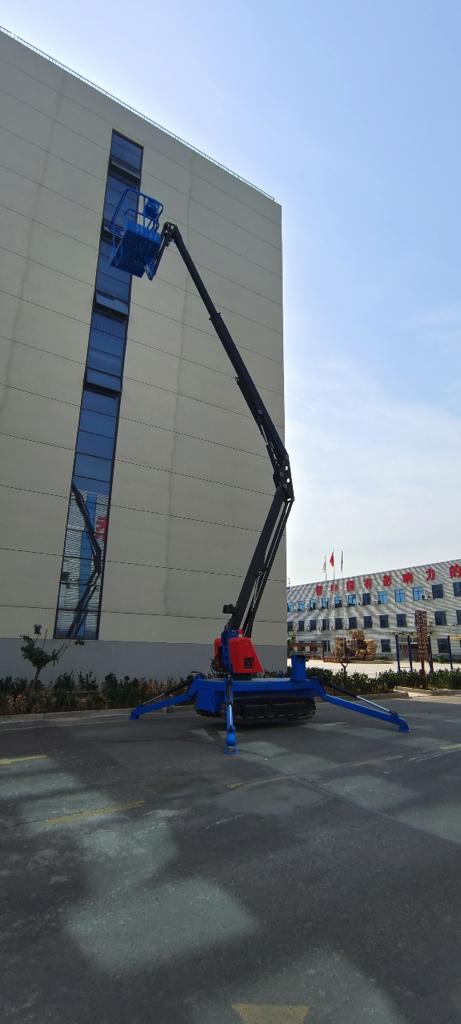

Introducing our cutting-edge Self-Propelled Articulated Boom Lift with TRACKS! This innovative and versatile lifting solution is engineered to tackle your elevated tasks with precision and ease. With its robust construction and advanced features, this boom lift ensures efficiency and safety in various industrial and construction applications.
Specifications:
- Battery: 8*12/100 (v/ah)
- Lifting Motor: 48v/4.5kw
- Allowable Maximum Working Inclination: 1.5-3°
- Ride and Steering: Track
- Overall Weight: 3900kg
- Max Working Height: 16m
- Max Table Height: 14m
- Standard Load Capacity: 200KG
- Overall Length (Stowed): 6.06m
- Overall Width: 1.94m
- Overall Height (Stowed): 2.29m
- Ground Clearance (Mid): 0.195m
- Table Size: 1.2m * 0.8m * 1.1m
- Inner Turning Radius: 0.2m
- Max Working Radius: 8.7m
- Outer Turning Radius: 0.2m
- Riding Speed (Stowed): 2.0 km/h
- Riding Speed (Lifted or Extended): Unavailable
- Gradeability: 30%
- Turntable Rotation Angle: 360°
- Automatic Leveling of Table: Only for the control on the body
- Max Distance of Outrigger Extension: 3.9m * 4.2m
Contact us now to explore the endless possibilities this boom lift has to offer. Unlock new heights of success and productivity with our advanced lifting solutions!
