*** Included ***
-Korean LS engine (37KW,EPA)

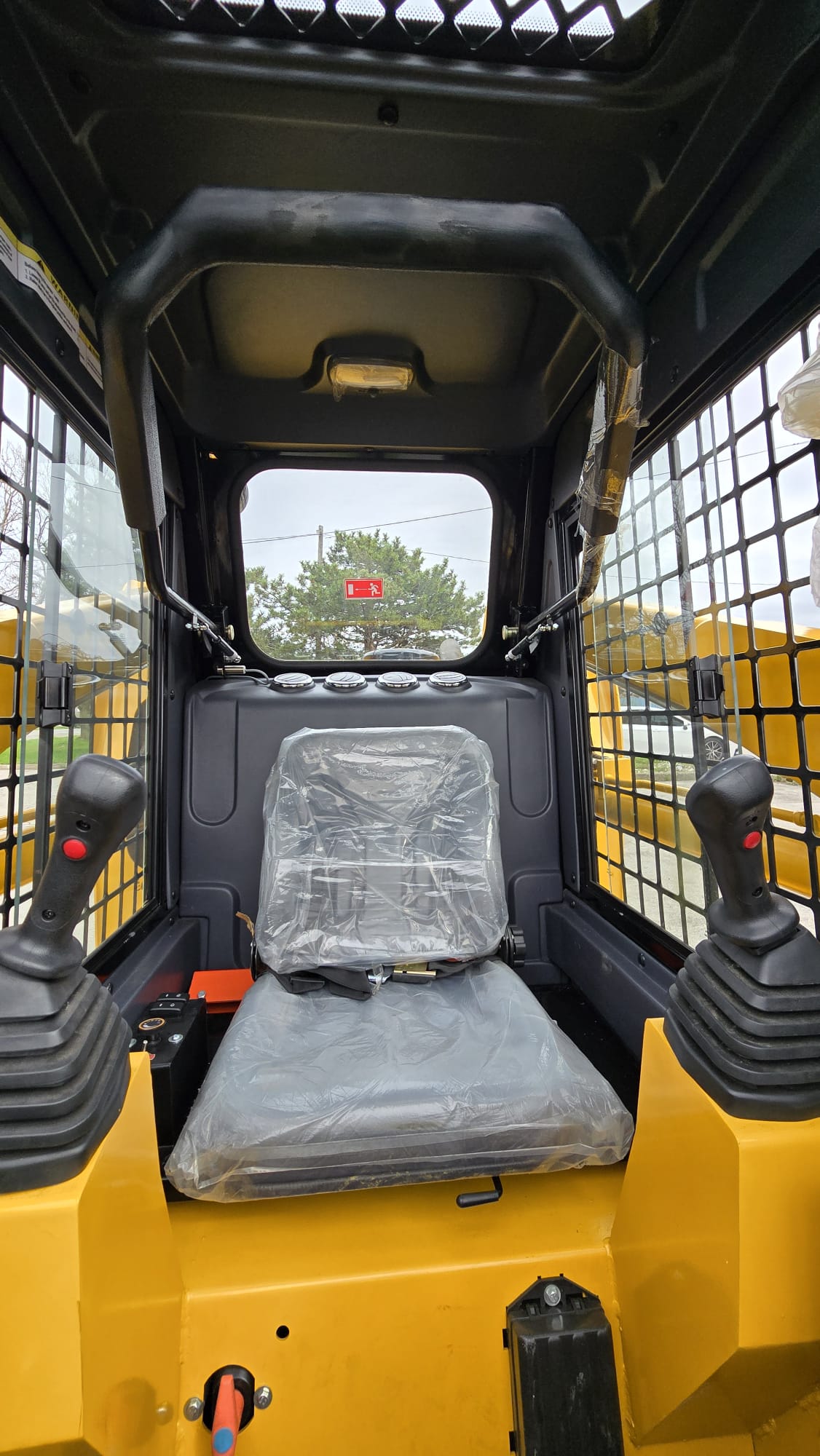

-Hydraulic Pilot Operated

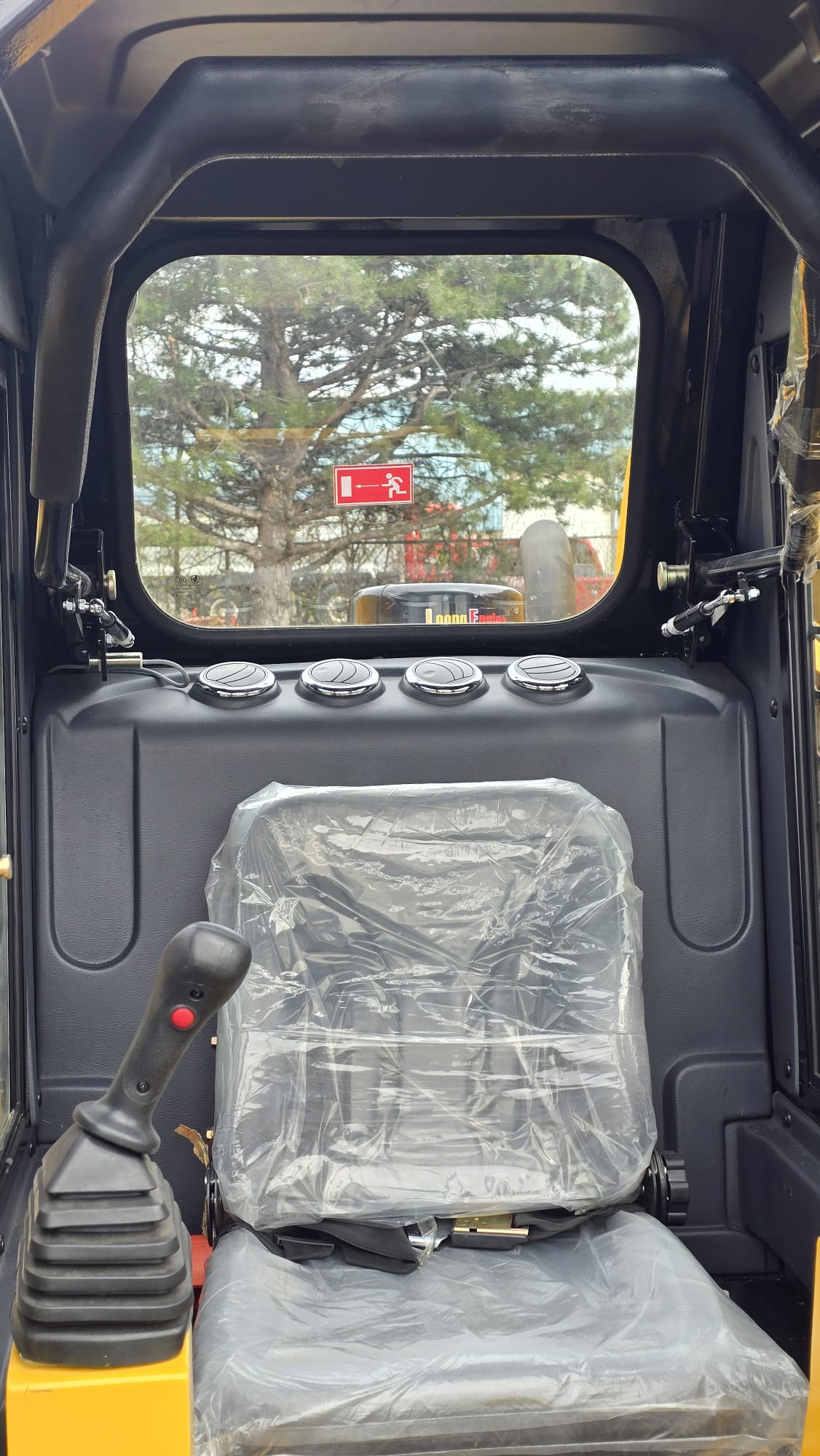

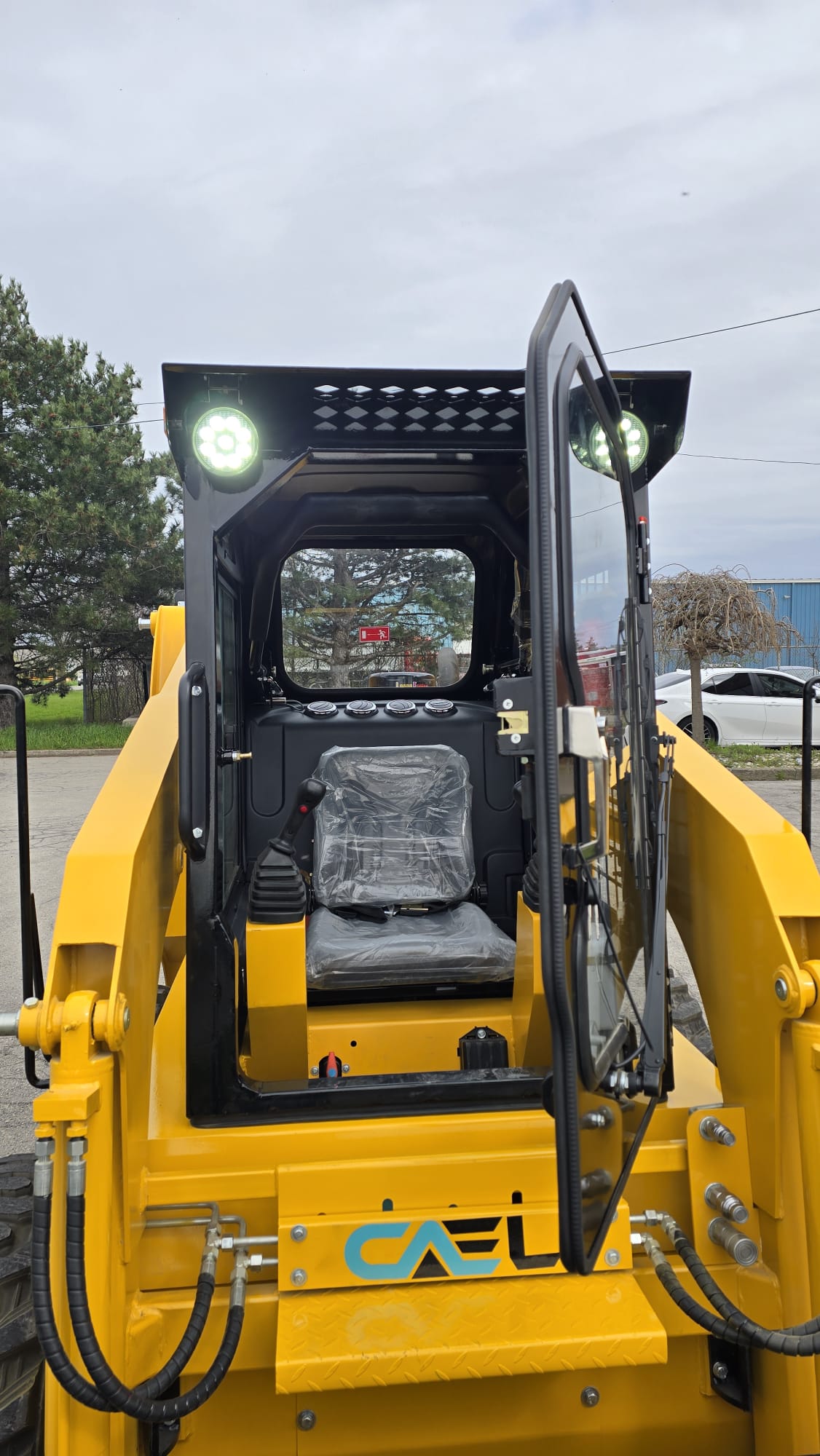

-Cabin
**** Specification*****
– Rated Operating Capacity(Kg) : 700 / 1543 LBS
– Tipping load(Kg) : 1400 / 3086 LBS
– Bucket Capacity(m3) : 0.4
– Lifting Force(Kg) : 1950 / 4300 LBS
– Hydraulic Pump Flow(L/min) : 75
– Engine power(HP) : 50
– Weight(Kg) : 3100 / 6834 LBS
– Max. Travel Speed(km/h) : 12
– Grade ability(° ) : 20
– Tire : 10-16.5
– Fuel/hyd. Oil capacity(L) : 65/65
*** Dimensions ***

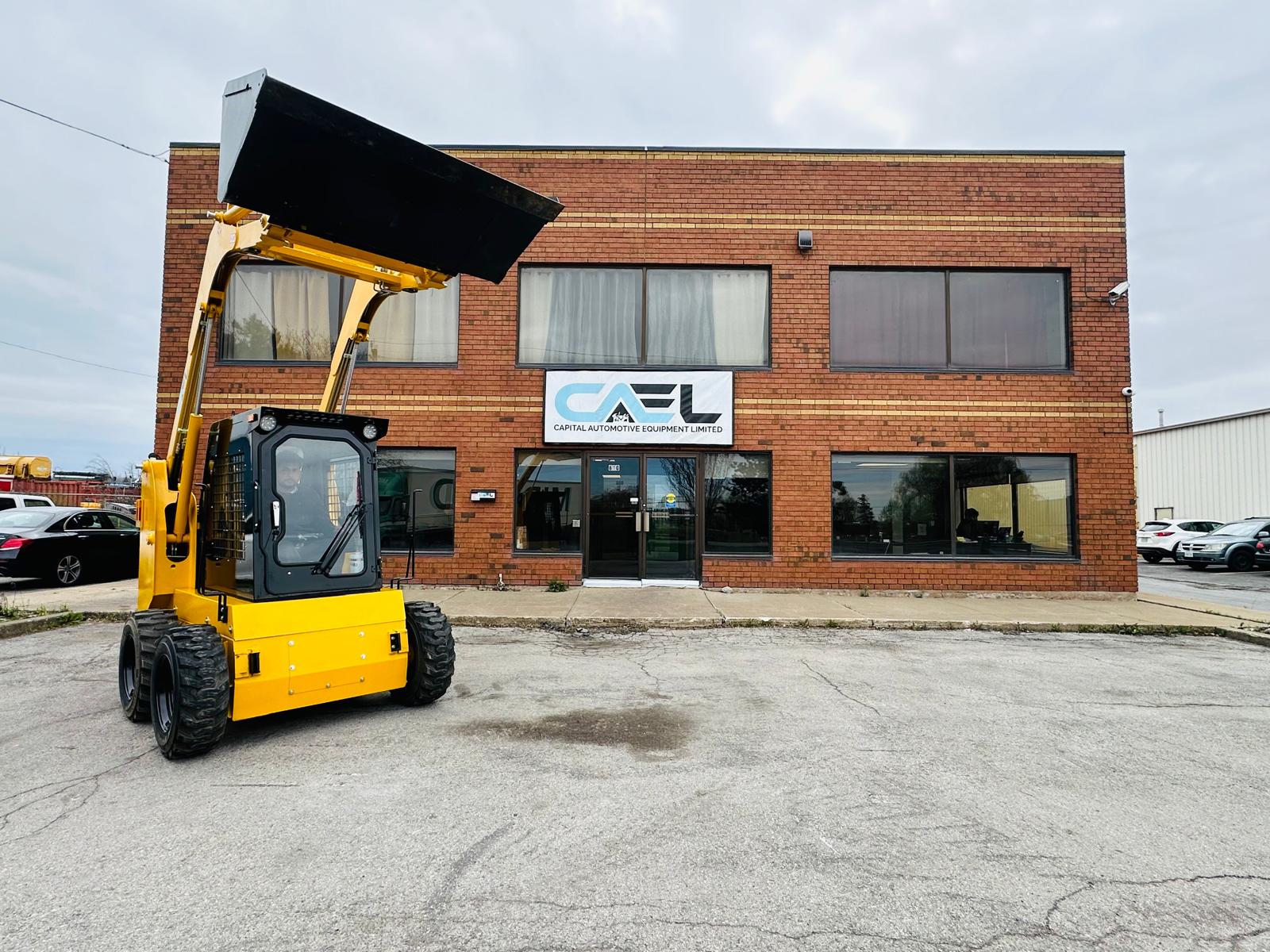

– Height at Maximum Extension : 3980mm / 157″
– Hinge Pin Height : 3080mm / 121″
– Total Height : 2050mm / 80.7″
– Length with Bucket : 3420mm / 134.6″
– Length without Bucket : 2640mm / 104″
– Width with Bucket : 1740mm / 68.5″
– Track Width : 1450mm / 57″
– Wheelbase : 991mm / 31″
– Ground Clearance : 185mm / 7″
– Dumping Angle ° : 40°
– Dumping Height : 2380mm / 94″
– Maximum Reach: 750mm / 29.5″
Customization Options (Additional Charges):
- Low temperature cold start : 600$
- Air conditioning 1400$
- Heat 500$
**2years warranty on motor **
**1year Warranty on all parts**
