Two-Post Base Plate Lift (9000/10000/12000/14000)

Call for price

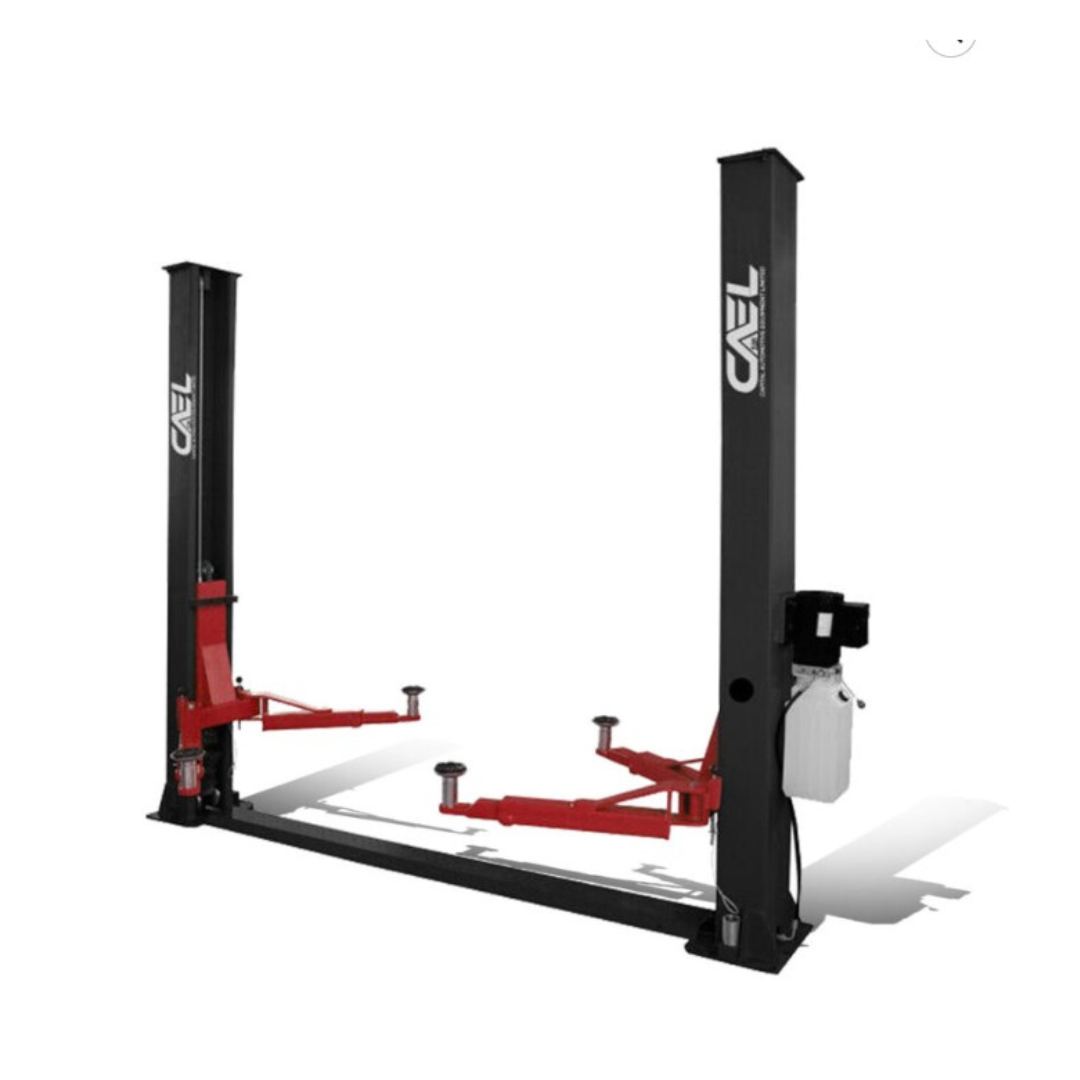

This heavy-duty 2 post clear floor lift is perfect for lifting today’s heavier four-door trucks (depending on the capacity of the truck), cars, and SUVs. It features an advanced design, and the symmetrical two arms provide the reach you need to hoist comfortably.

  • Technically advanced configuration.
  • ETL and CSA Certified, ensuring the best quality.
  • Two side lock release.
  • Collision prevention switch prevents collisions between vehicle roof and ceiling.
  • Mechanical safety latches with dual-side manual lock release.
  • Vehicle door anti-crush rubber protection.

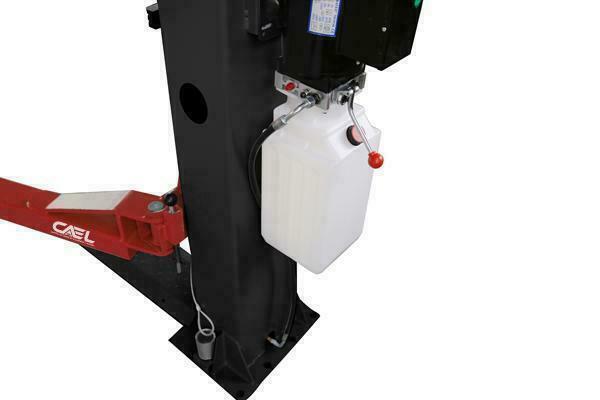

  • Synchronized hydraulic cylinders.

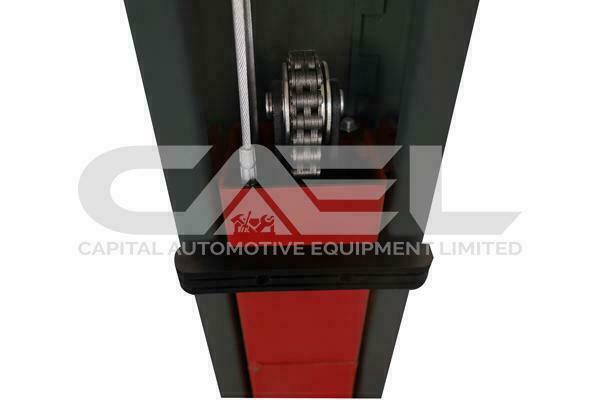

  • Independent load distribution with the cable leveling system.

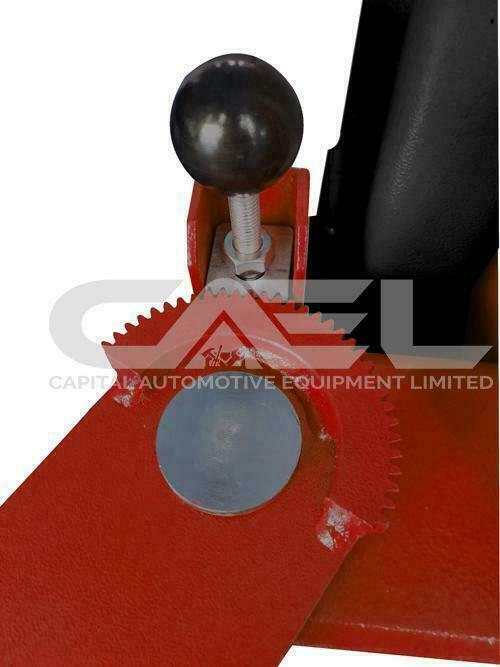

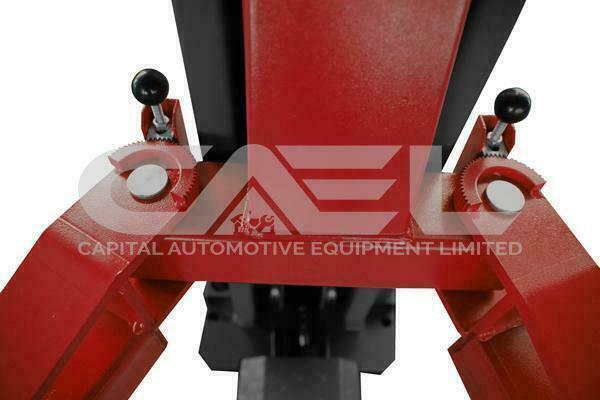

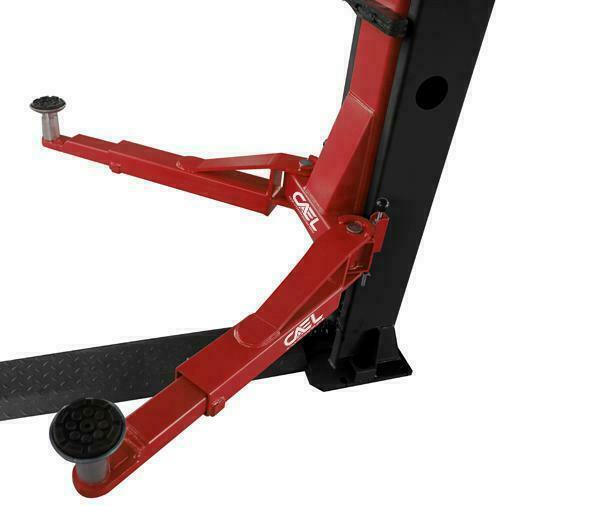

  • Swing arm support with high-quality wear-resistant rubber pads.
  • Durable powder-coated finish.
  • Standard 220V
CAPACITYPRICE (Tax not included)
HP9$2,199+
HP10$2,499+
HP12$3,749+
HP14$4,249+



Category:

SPECIFICATIONS



HP9 – 9000LBS

Weight Capacity8818.49 lbs
Overall Width131.5 in
Overall Height108.7 in
Minimum Lift Height3.9 in
Maximum Lift Height71 in



HP10 – 10000LBS

Weight Capacity9920.802 lbs
Overall Width131.5 in
Overall Height108.7 in
Minimum Lift Height3.9 in
Maximum Lift Height71 in



HP12 – 12000LBS

Weight Capacity12125.42 lbs
Overall Width149.6 in
Overall Height109 in
Minimum Lift Height4.3 in
Maximum Lift Height74.8 in



HP14 – 14000LBS

Weight Capacity13889.12 lbs
Overall Width149.6 in
Overall Height109 in
Minimum Lift Height4.3 in
Maximum Lift Height74.8 in





MANUAL
