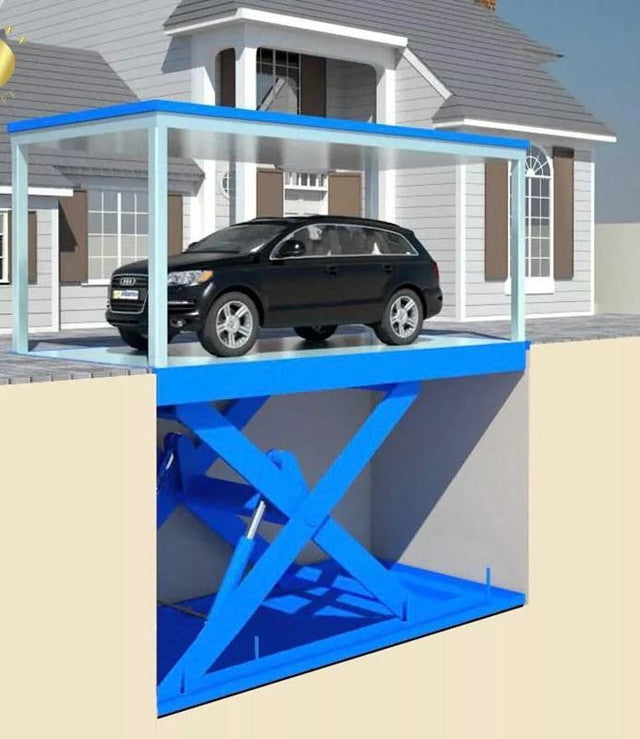

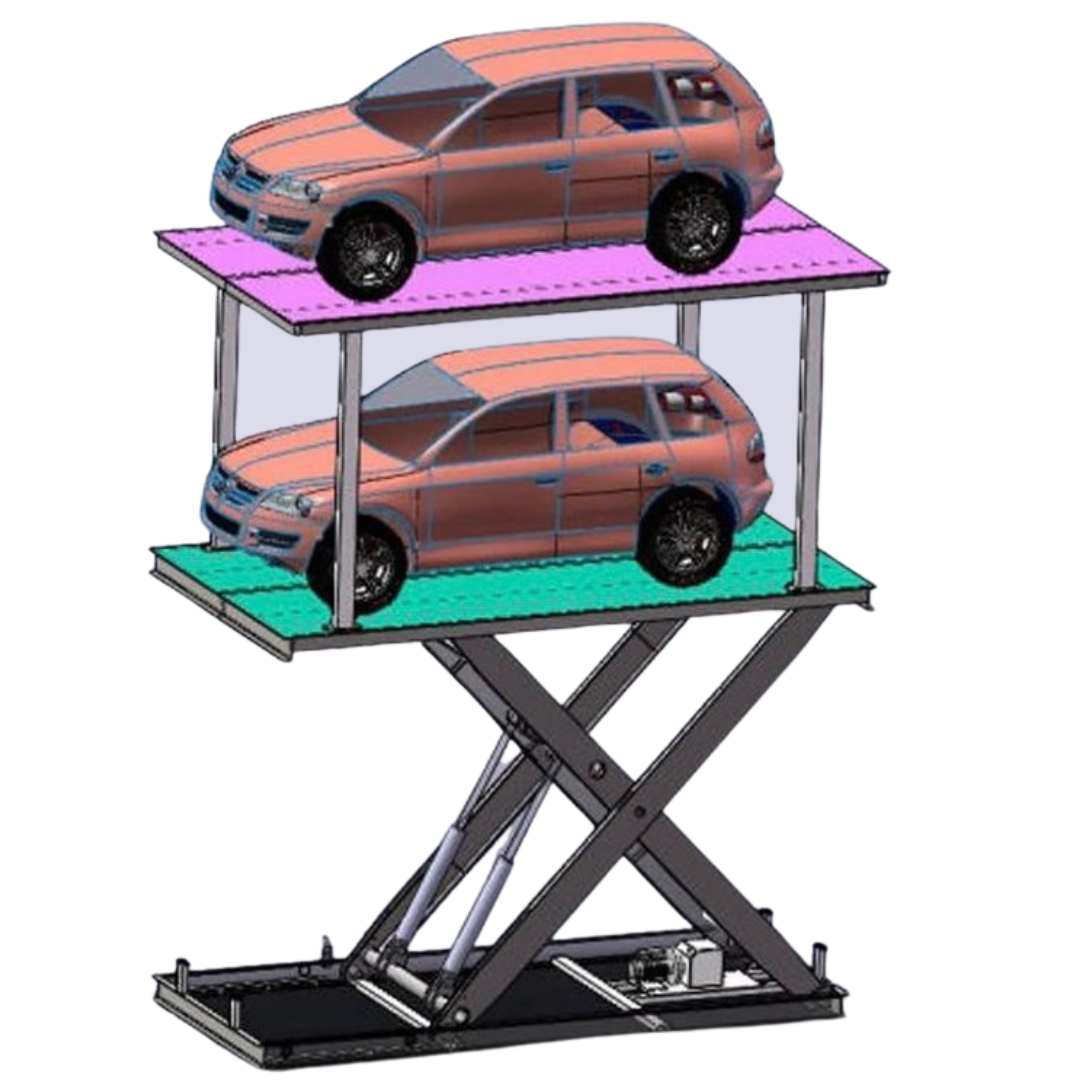

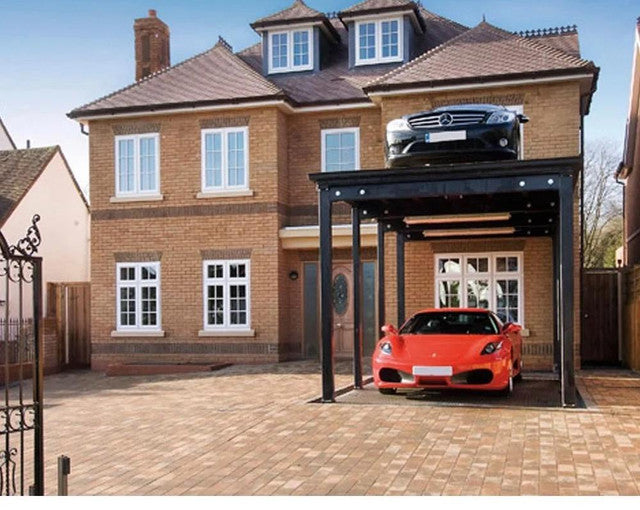

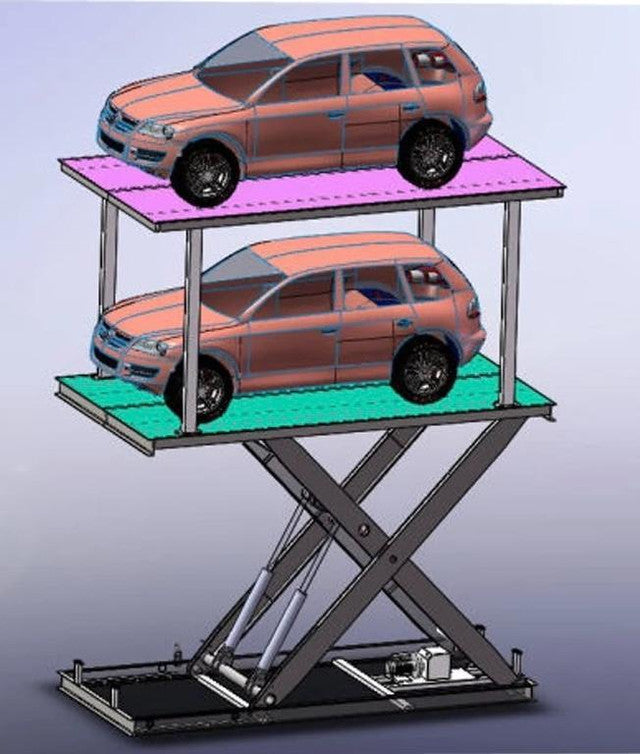

Double deck underground home garage parking lift hydraulic car scissor lift 6T (DDSL6T)

The CAEL Hydraulic Scissor Cargo Lift 6 Ton (CAEL-SCL6T) is a heavy-duty vertical lifting solution designed for warehouses, industrial facilities, workshops, and commercial applications. Built with a strong scissor lifting structure and high-capacity hydraulic system, this lift provides safe, stable, and efficient vertical transportation of heavy goods and equipment.

With a 6-ton lifting capacity, a 3.2-meter total height, and a 2.667-meter net lifting height, the CAEL-SCL6T is ideal for moving cargo between two levels while maximizing space efficiency. Its reinforced steel construction, hydraulic cylinders, and advanced safety systems ensure reliable performance in demanding working environments.

Key Features

Heavy-Duty 6 Ton Capacity

• Designed to lift and transport heavy cargo up to 6,000 kg
• Suitable for industrial, warehouse, and commercial applications

Powerful Hydraulic Lifting System

• Equipped with 2 hydraulic cylinders (90 mm)
• Provides smooth, stable, and controlled lifting operation
• Reliable performance for frequent heavy-load use

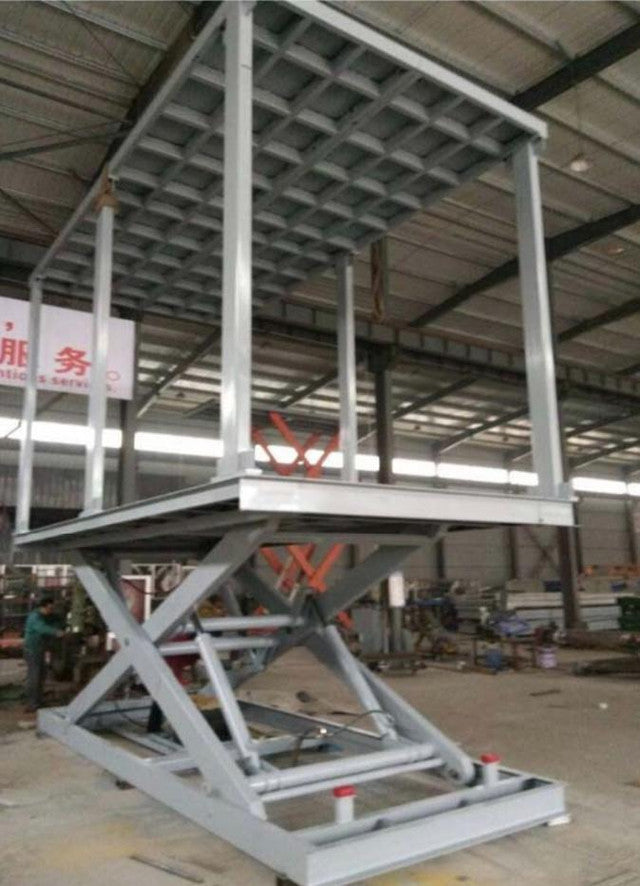

Strong Scissor Structure

• Built with reinforced 200 × 100 × 5 mm square steel pipe
• Two-layer scissor structure provides excellent strength and stability
• Heavy-duty platform design supports large loads safely

Large Platform Area

• Platform size: 2.59 m × 5.893 m
• Provides sufficient space for transporting large cargo, equipment, and materials

Safety Protection System

Automatic Stop Function

• Platform automatically stops during power failure to prevent unsafe movement

Explosion-Proof Hydraulic Valve

• Prevents sudden platform lowering in case of hydraulic pipe or cylinder leakage

Emergency Stop Button

• Allows operators to immediately stop the lift during emergency situations

Anti-Skid Platform Surface

• 4 mm anti-skid steel plate prevents cargo from sliding during operation

  Specifications


  Specification	Details
  Product Type	Hydraulic Scissor Cargo Lift
  Model	CAEL-SCL6T
  Lifting Capacity	6 Ton (6000 kg)
  Total Height	3.2 m
  Net Lifting Height	2.667 m / 8 ft 9 in
  Lifting Speed	4 m/min
  Motor Power	4.4 KW
  Motor Position	Inside Lift Body

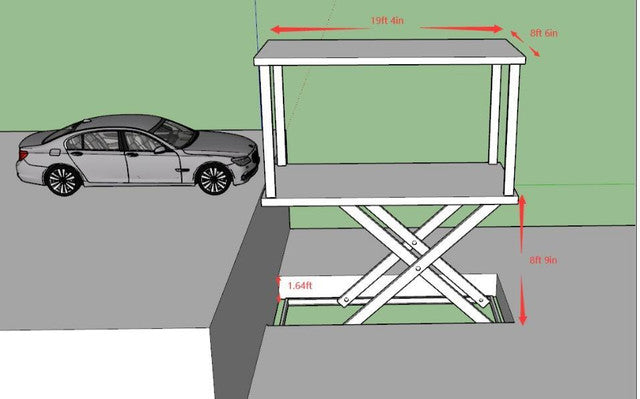

  Platform Size	2.59 × 5.893 m (8 ft 6 in × 19 ft 4 in)
  Stops	2 Stops
  Power Supply	220V / 1 Phase / 60Hz
  Pit Depth	500 mm
  Hydraulic Cylinder	90 mm × 2 pcs
