Double deck underground home garage parking lift hydraulic car scissor lift (DDSL3T)

The CAEL Hydraulic Scissor Cargo Lift 3 Ton (CAEL-SCL3T) is a reliable and efficient vertical lifting solution designed for warehouses, industrial facilities, workshops, and commercial applications. Built with a heavy-duty scissor structure and powerful hydraulic lifting system, this cargo lift provides smooth, stable, and safe transportation of goods between different levels.

With a 3-ton lifting capacity, a 3.2-meter total height, and a 2.667-meter net lifting height, the CAEL-SCL3T is designed to handle heavy materials while maintaining excellent stability and operational safety. Its reinforced steel frame, anti-skid platform, and advanced safety features make it an ideal choice for professional material handling environments.

Key Features

Heavy-Duty 3 Ton Capacity

• Supports loads up to 3,000 kg
• Designed for warehouses, factories, workshops, and commercial applications
• Suitable for transporting heavy equipment, products, and materials

Powerful Hydraulic Lifting System

• Equipped with 2 hydraulic cylinders (90 mm)
• Provides smooth and controlled lifting performance
• Built for reliable daily operation

Strong Scissor Lift Structure

• Manufactured with reinforced 200 × 100 × 5 mm square steel pipe
• Two-layer scissor structure ensures maximum strength and stability
• Heavy-duty frame design provides long service life

Large Anti-Skid Platform

• Platform size: 2.59 m × 5.893 m
• Spacious platform accommodates large cargo loads
• 4 mm anti-skid steel plate prevents goods from slipping during operation

Advanced Safety Protection System

Automatic Stop Function

• Lift automatically stops during power failure for improved safety

Explosion-Proof Hydraulic Valves

• Prevent sudden platform dropping if hydraulic pipes or cylinders experience leakage

Emergency Stop Button

• Allows operators to stop the lift immediately in emergency situations

Anti-Skid Platform Surface

• Provides secure cargo positioning during lifting and lowering operations

  Specifications


  Specification	Details
  Product Type	Hydraulic Scissor Cargo Lift
  Model	CAEL-SCL3T
  Lifting Capacity	3 Ton (3000 kg)
  Total Height	3.2 m
  Net Lifting Height	2.667 m / 8 ft 9 in
  Lifting Speed	4 m/min
  Motor Power	4.4 KW
  Motor Position	Inside Lift Body

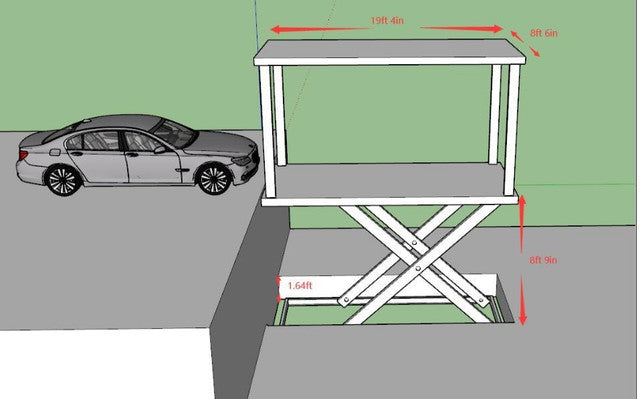

  Platform Size	2.59 × 5.893 m (8 ft 6 in × 19 ft 4 in)
  Stops	2 Stops
  Power Supply	220V / 1 Phase / 60Hz
  Pit Depth	500 mm
  Hydraulic Cylinder	90 mm × 2 pcs
