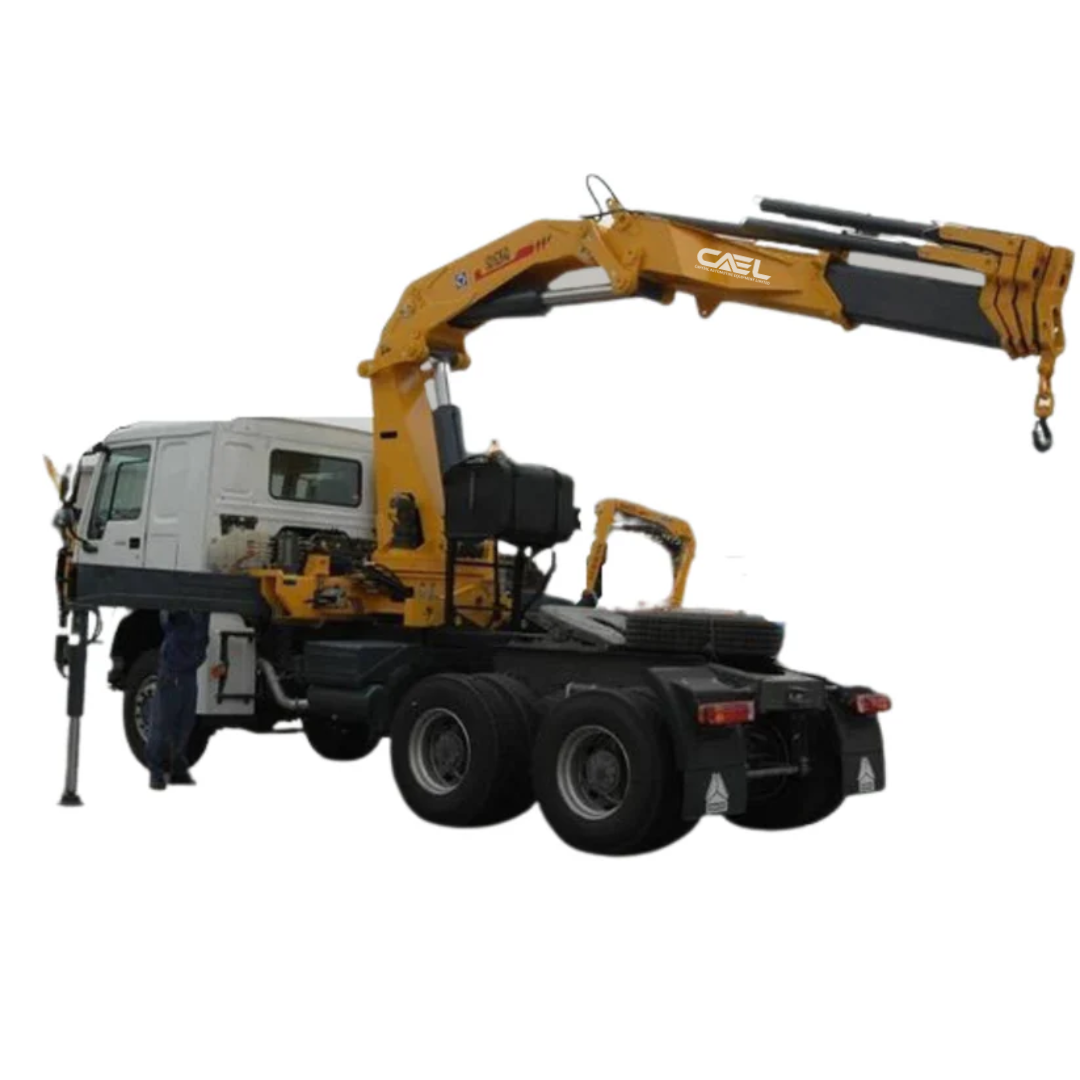

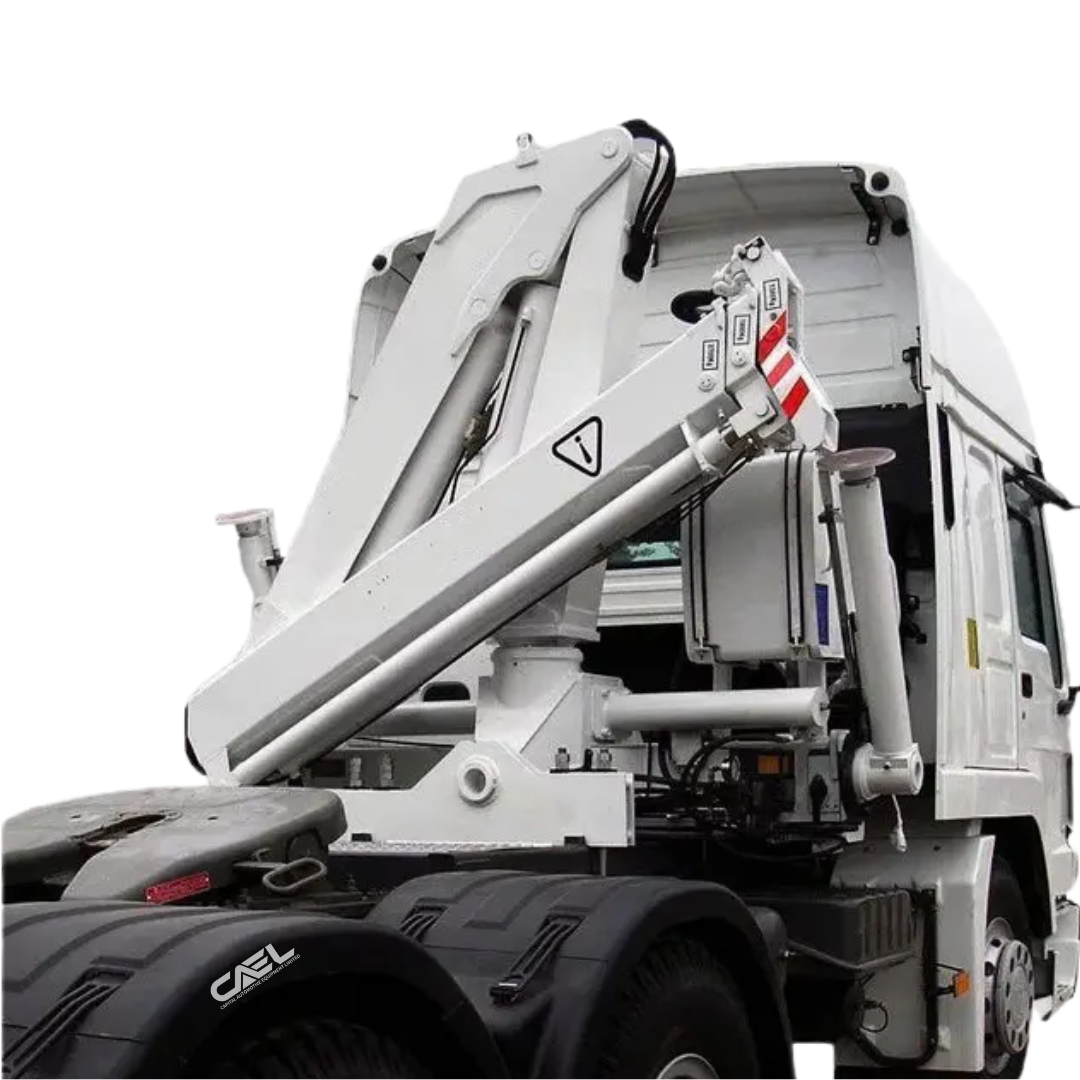

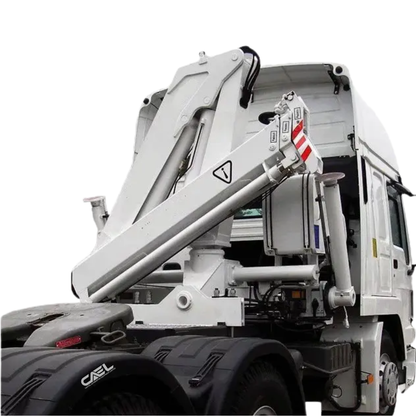

Knuckle Boom Truck Mounted Crane Series 16T

Knuckle Boom Truck Mounted Crane Series 16T

$74,862.00 USD
$74,862.00 USD $74,862.00 USD
Sale Sold out

Get quote now

We Accept

  • PayPal
  • Low Prices
  • Warranty Included
  • Order Tracking

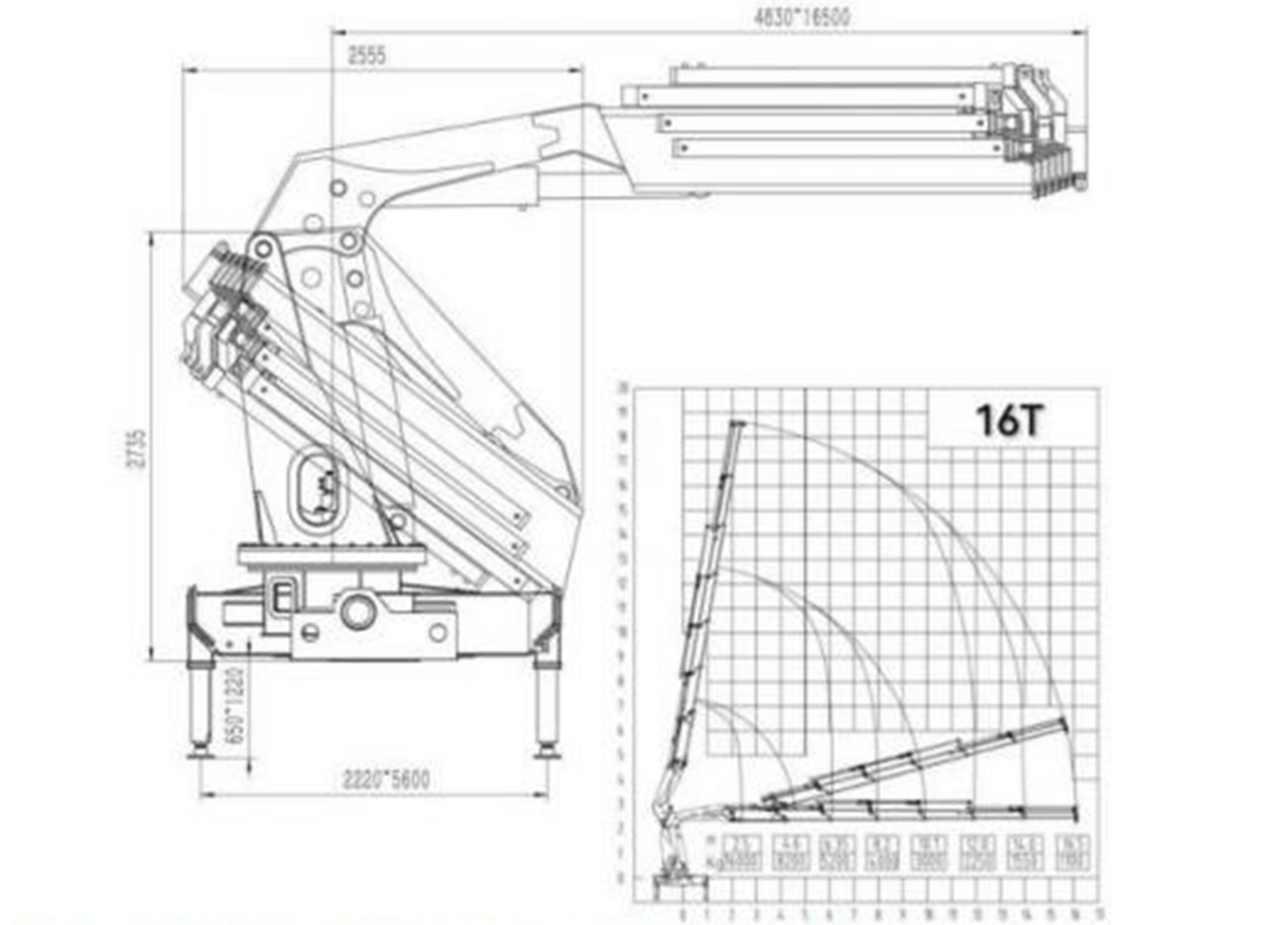

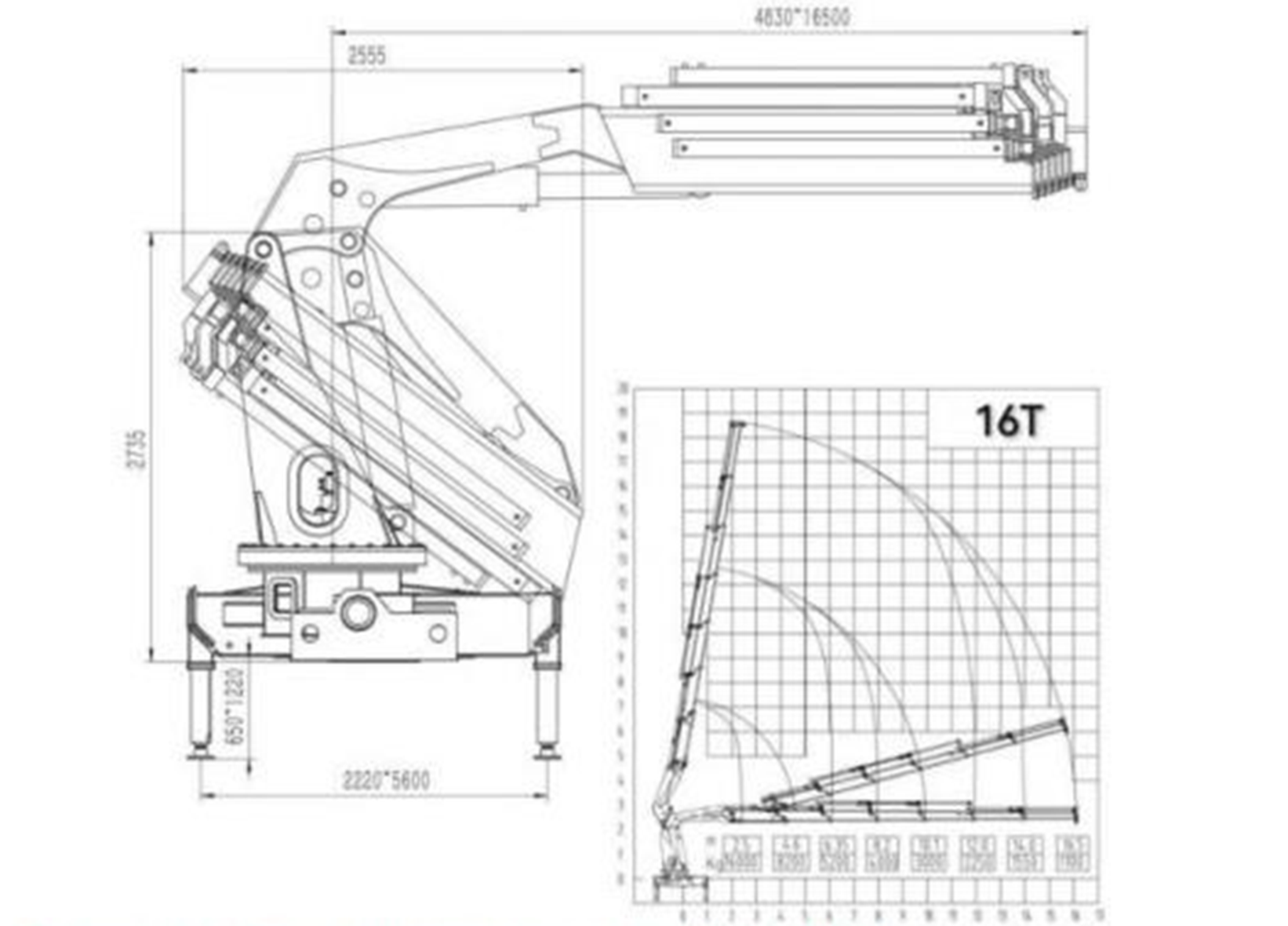

Extracted Specifications:

JS16 (16T Folding Arm Crane)

Max Lifting Capacity: 16000 kg

Max Lifting Moment: 40.0 Ton·m

Max Working Radius: 16.5 m

Max Working Height: 19.0 m

Slewing Angle: 360° Rotation

Installation Space:

Lower Operation: 1450 mm

Upper Operation: 1750 mm

Outrigger Span: 2440 / 5700 mm

Self Weight: 5.8 T
