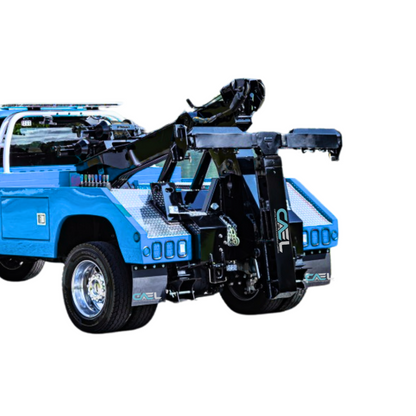

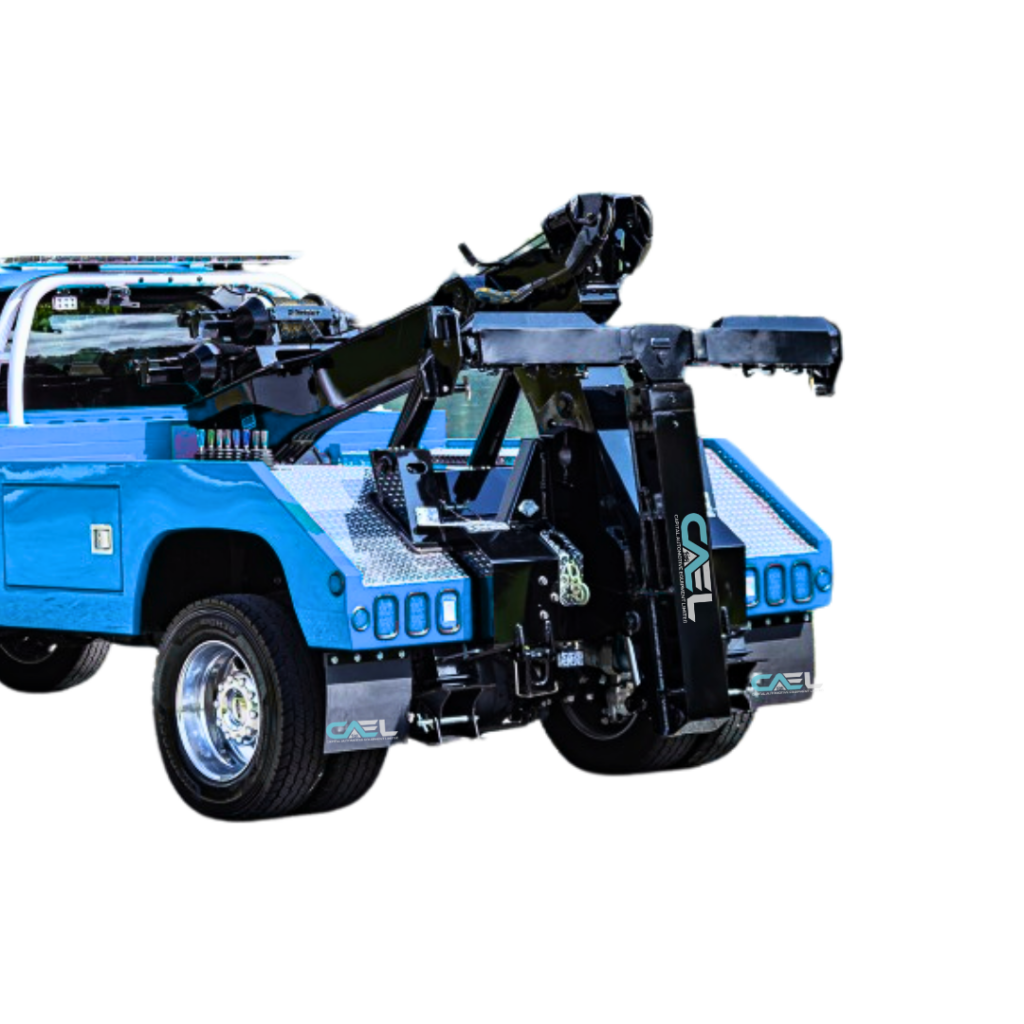

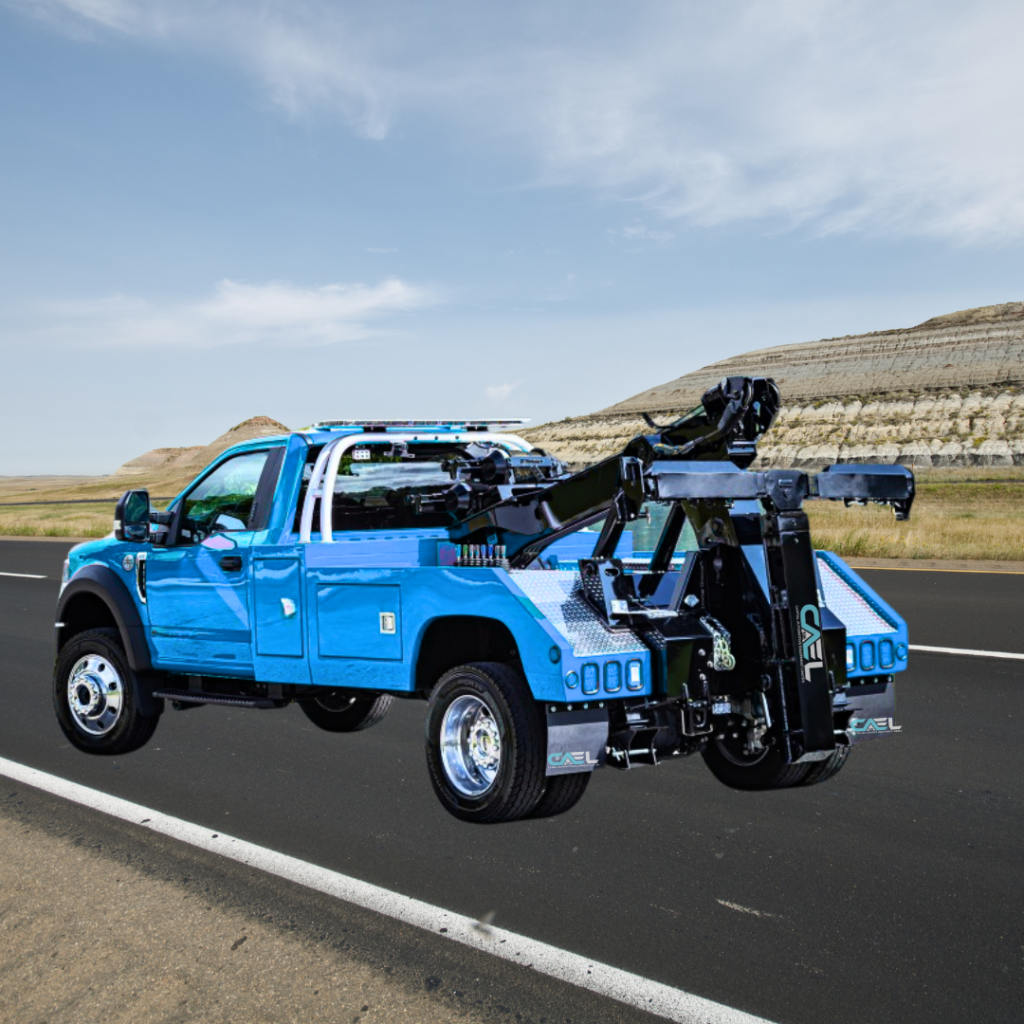

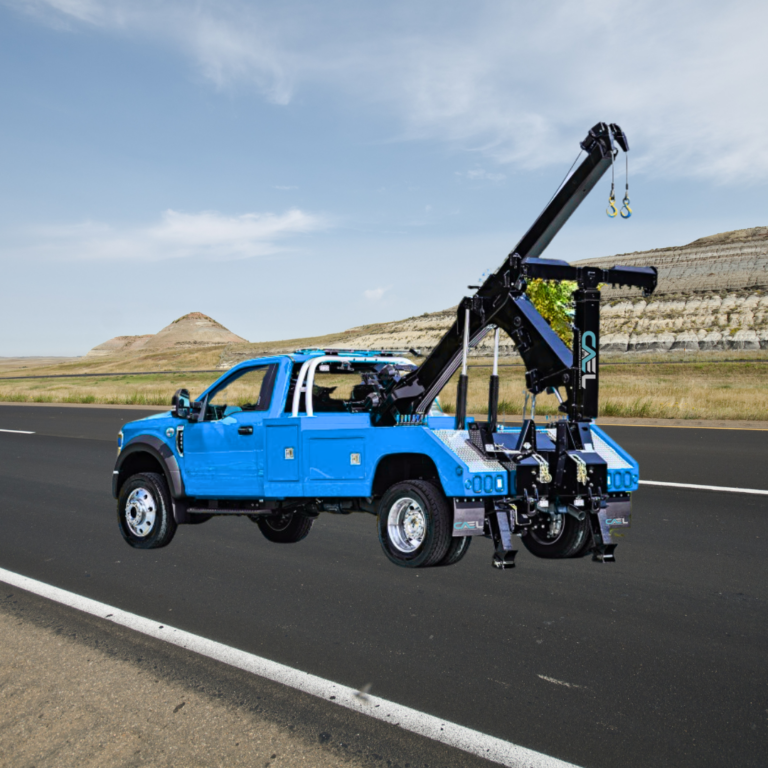

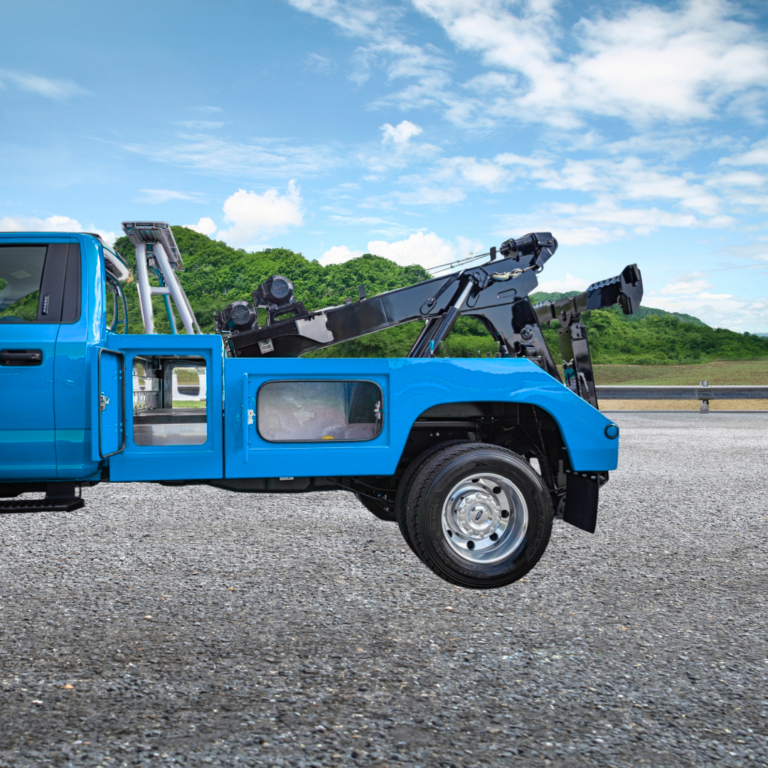

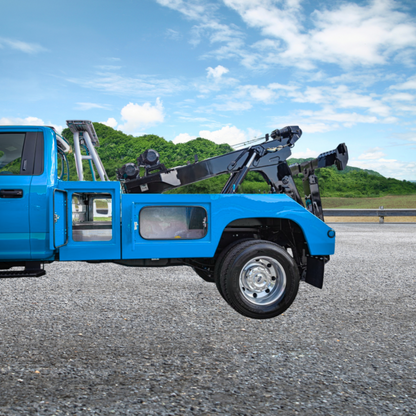

Boom Specification
Retracted: 24,000 lbs.
Extended: 10,000 lbs.
Maximum Angle: 40°
Maximum Hook Height: 147”
Maximum Reach past Tailboard Minimum Elevation: 72”

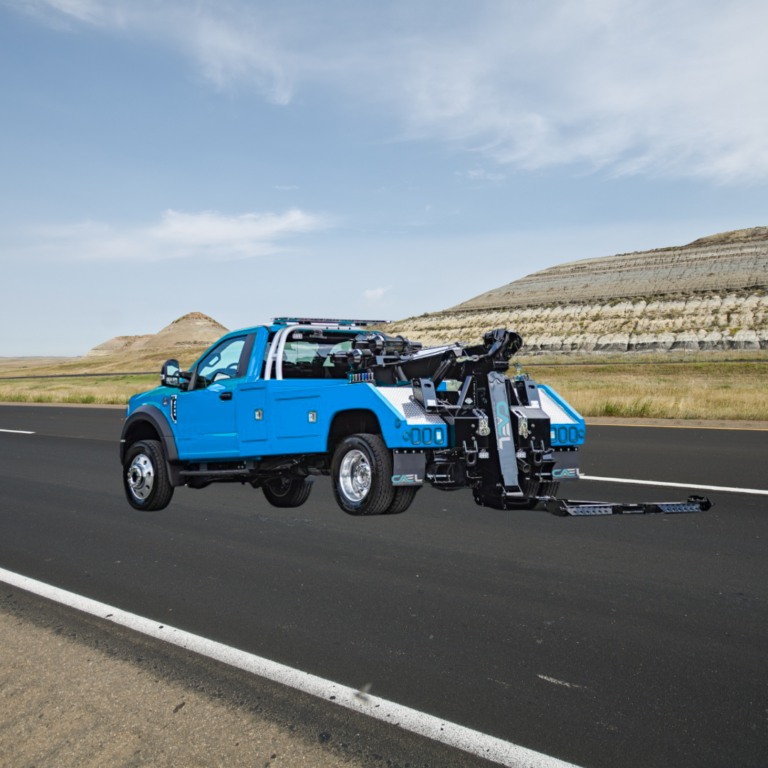

Underlift
Fully Retracted (with Forks): 9,000 lbs.
Fully Extended (with Forks): 7,000 lbs.
Extended or Retracted with L-Arms: 6,000 lbs.
Underlift Reach to Center of Fork Holder on the Ground
Retracted : 42”
Extended: 76”
Positive Tilt : 28°
Negative Tilt: 12°
Tow Rating: 20,000 lbs.

Winch Rating & Cable
Rating (first layer of drum) each Winch: 12,000 lbs.
Diameter and Length (Each Winch): 7/16” x 150′ IWRC

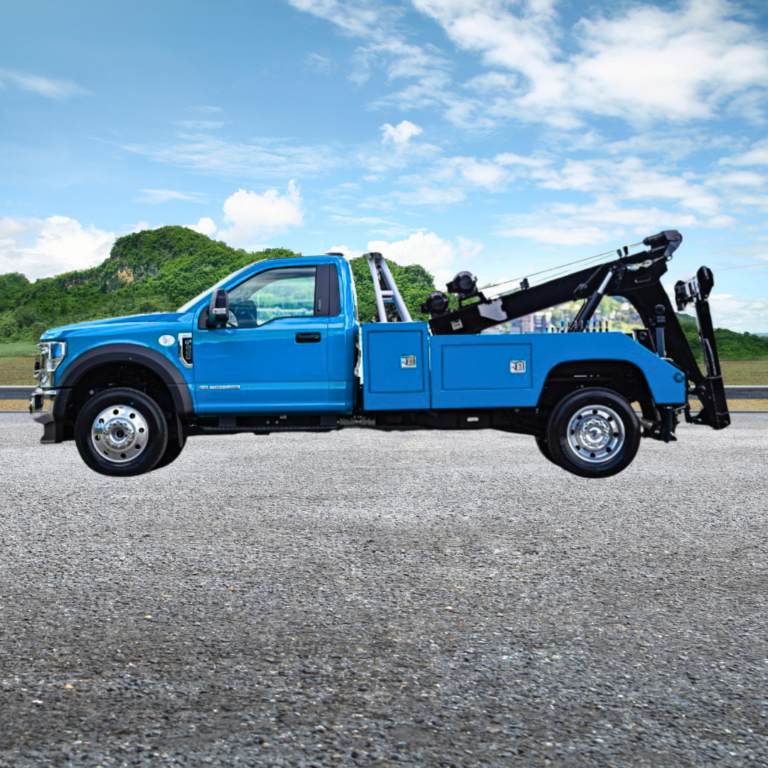

Chassis Recommendation
Suggested GVWR : 21,000 lbs. – 31,000 lbs.
Cab to Axle (Clear): 84” or 108”
Maximum Frame Height: 37”
Maximum Tire Size: 255/70R22.5

Ratings are based on structural and design factors only. Chassis capacity and performance can vary, affecting the unit’s overall rating. The listed chassis specifications are minimum requirements, and higher specifications may be needed depending on the weight of the chassis and equipment.

CUSTOMIZATION OPTION AVAILABLE. CONTACT FOR MORE DETAILS
